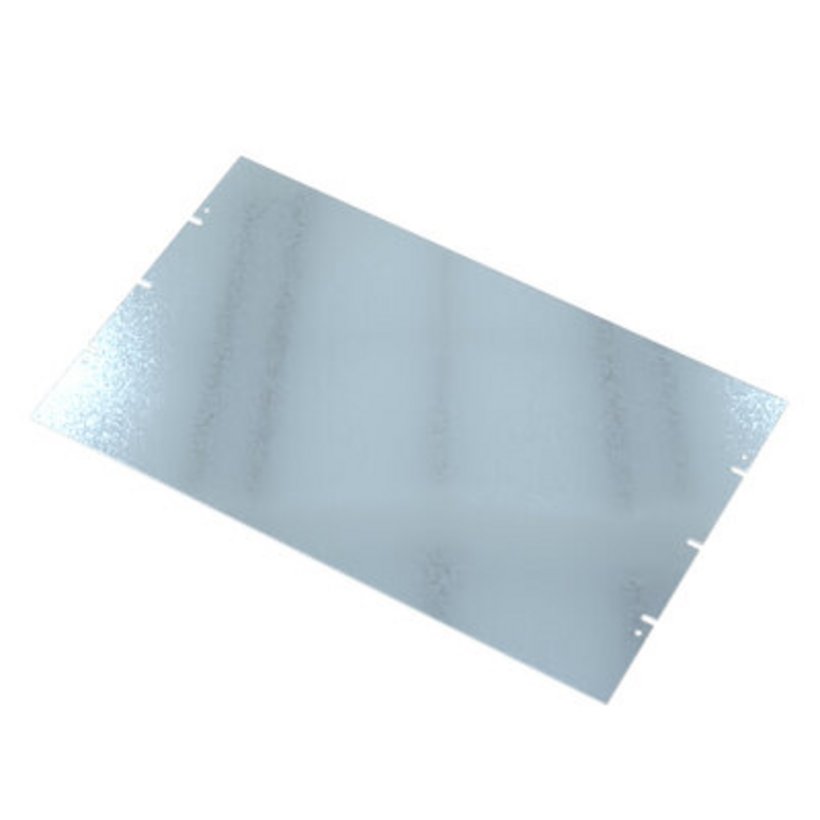

Product description

Mounting plates for terminal boxes, SN-mini, Compact69 and keypad enclosures.

Technical data

Article number: 2408-4030-00-12
Material: Steel sheet 2 mm/14 ga
Width: 255 mm
Height: 385 mm
Surface: Galvanized

1 Mounting plate without attachments

2408-4030-80-37

Junction Box K8 Sheet Steel

Width

300 mm

Length

400 mm

Depth

80 mm

further information

2412-4030-12-37

Junction Box K12 Sheet Steel

Width

300 mm

Length

400 mm

Depth

120 mm

further information

2409-3040-12-07

K-enclosure

Width

300 mm

Height

400 mm

Depth

120 mm

Lock

1 quarter turn latch lock

further information

2441-4030-12-07

Keypad enclosure

Width

400 mm

Height

300 mm

Depth

120 mm

further information

2441-4030-20-07

Keypad enclosure

Width

400 mm

Height

300 mm

Depth

200 mm

further information

2451-4030-12-00

Junction Box Hygienic Equipment HE2451

Dimensions

Length: (nominal dimensions/external dimensions): 400/429 mm
Width: (nominal dimensions/external dimensions): 300/329 mm
Depth: (nominal dimensions/external dimensions): 120/120 mm

further information

CAD data and other illustrations:

Save as PDF Direct request

Mounting plate

Mounting plates for terminal boxes, SN-mini, Compact69 and keypad enclosures.


2408-1515-00-12	105 mm	135 mm
2408-2015-00-12	105 mm	185 mm
2408-2515-00-12	105 mm	235 mm
2408-3015-00-12	105 mm	285 mm
2408-3515-00-12	105 mm	335 mm
2408-4015-00-12	105 mm	385 mm
2408-5015-00-12	105 mm	485 mm
2408-6015-00-12	105 mm	585 mm
2408-7015-00-12	105 mm	685 mm
2408-2020-00-12	155 mm	185 mm
2408-2520-00-12	155 mm	235 mm
2408-3020-00-12	155 mm	285 mm
2408-3520-00-12	155 mm	335 mm
2408-4020-00-12	155 mm	385 mm
2408-5020-00-12	155 mm	485 mm
2408-6020-00-12	155 mm	585 mm
2408-7020-00-12	155 mm	685 mm
2408-2030-00-12	255 mm	185 mm
2408-3030-00-12	255 mm	285 mm
2408-4030-00-12	255 mm	385 mm
2408-5030-00-12	255 mm	485 mm
2408-6030-00-12	255 mm	585 mm
2408-7030-00-12	255 mm	685 mm
2408-4040-00-12	355 mm	385 mm
2408-5040-00-12	355 mm	485 mm
2408-6040-00-12	355 mm	585 mm
2408-7040-00-12	355 mm	685 mm
