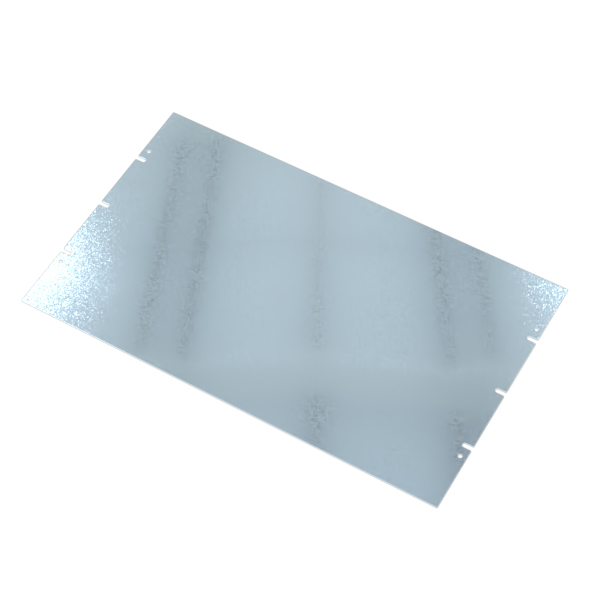

Mounting plate

Product description

Mounting plates for terminal boxes, SN-mini, Compact69 and keypad enclosures.

Technical data

Article number: 2408-5030-00-12
Material: Steel sheet 2 mm/14 ga
Width: 255 mm
Height: 485 mm
Surface: Galvanized

1 Mounting plate without attachments

Junction Box K12 Sheet Steel

2412-5030-12-37

Junction Box K12 Sheet Steel

Width

300 mm

Length

500 mm

Depth

120 mm

further information

CAD data and other illustrations:

Save as PDF Direct request

Mounting plate

Mounting plate

Mounting plates for terminal boxes, SN-mini, Compact69 and keypad enclosures.

			Remember
2408-1515-00-12	105 mm	135 mm
2408-2015-00-12	105 mm	185 mm
2408-2515-00-12	105 mm	235 mm
2408-3015-00-12	105 mm	285 mm
2408-3515-00-12	105 mm	335 mm
2408-4015-00-12	105 mm	385 mm
2408-5015-00-12	105 mm	485 mm
2408-6015-00-12	105 mm	585 mm
2408-7015-00-12	105 mm	685 mm
2408-2020-00-12	155 mm	185 mm
2408-2520-00-12	155 mm	235 mm
2408-3020-00-12	155 mm	285 mm
2408-3520-00-12	155 mm	335 mm
2408-4020-00-12	155 mm	385 mm
2408-5020-00-12	155 mm	485 mm
2408-6020-00-12	155 mm	585 mm
2408-7020-00-12	155 mm	685 mm
2408-2030-00-12	255 mm	185 mm
2408-3030-00-12	255 mm	285 mm
2408-4030-00-12	255 mm	385 mm
2408-5030-00-12	255 mm	485 mm
2408-6030-00-12	255 mm	585 mm
2408-7030-00-12	255 mm	685 mm
2408-4040-00-12	355 mm	385 mm
2408-5040-00-12	355 mm	485 mm
2408-6040-00-12	355 mm	585 mm
2408-7040-00-12	355 mm	685 mm
