2360-7802-00-02

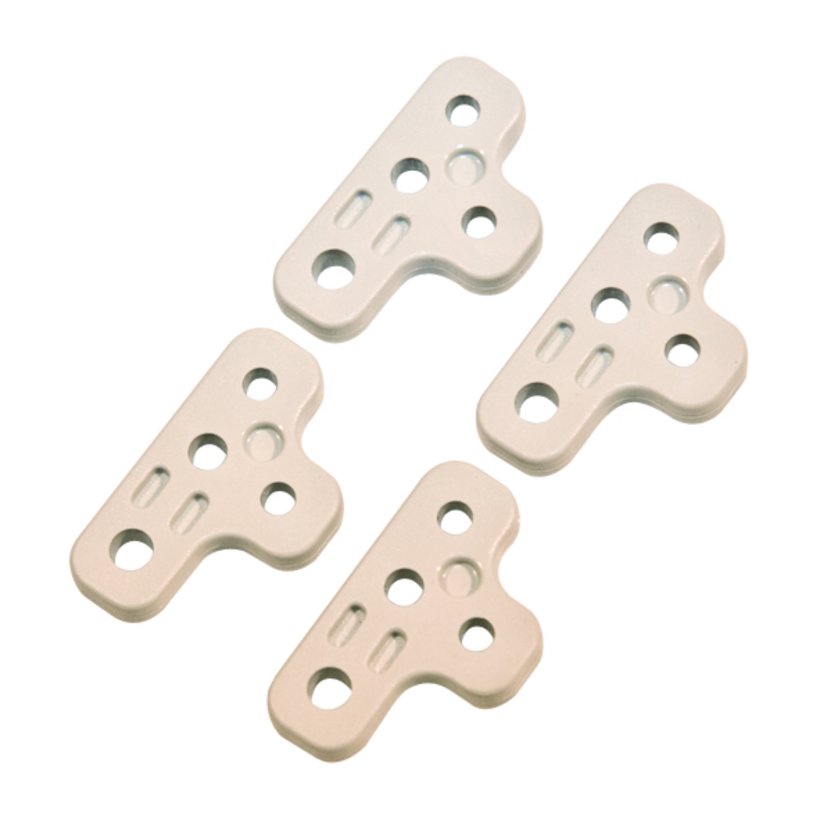

External mounting brackets for PC and ABS plastic housings
Product description
External mounting brackets for fitting PC and ABS plastic housings.
Different configurations for the brackets in 90 ° offset.
Technical data
-
Article number: 2360-7802-00-02
-
Material: Polycarbonate
-
Color: RAL 7035
Notice
- Suitable for PC and ABS plastic housings from 80 mm/ 3.14" (not for: 2366-3620-15-00 and 2365-3620-15-00)
- 4 external mounting brackets
2365-0808-05-00
ABS housing 2365
Width
82 mm
Height
80 mm
Depth
55 mm
Type
Standard version ABS
Protection type
IP65
2365-0808-08-00
ABS housing 2365
Width
82 mm
Height
80 mm
Depth
85 mm
Type
Standard version ABS
Protection type
IP65
2365-1208-05-00
ABS housing 2365
Width
120 mm
Height
80 mm
Depth
55 mm
Type
Standard version ABS
Protection type
IP65
2365-1208-08-00
ABS housing 2365
Width
120 mm
Height
80 mm
Depth
85 mm
Type
Standard version ABS
Protection type
IP65
2365-1212-05-00
ABS housing 2365
Width
122 mm
Height
120 mm
Depth
55 mm
Type
Standard version ABS
Protection type
IP65
2365-1212-08-00
ABS housing 2365
Width
122 mm
Height
120 mm
Depth
85 mm
Type
Standard version ABS
Protection type
IP65
2365-1608-05-00
ABS housing 2365
Width
160 mm
Height
80 mm
Depth
55 mm
Type
Standard version ABS
Protection type
IP65
2365-1608-08-00
ABS housing 2365
Width
160 mm
Height
80 mm
Depth
85 mm
Type
Standard version ABS
Protection type
IP65
2365-1612-09-00
ABS housing 2365
Width
160 mm
Height
120 mm
Depth
90 mm
Type
Standard version ABS
Protection type
IP65
2365-2012-07-00
ABS housing 2365
Width
200 mm
Height
120 mm
Depth
75 mm
Type
Standard version ABS
Protection type
IP65
2365-2012-09-00
ABS housing 2365
Width
200 mm
Height
120 mm
Depth
90 mm
Type
Standard version ABS
Protection type
IP65
2365-2015-07-00
ABS housing 2365
Width
200 mm
Height
150 mm
Depth
75 mm
Type
Standard version ABS
Protection type
IP65
2365-2412-10-00
ABS housing 2365
Width
240 mm
Height
120 mm
Depth
100 mm
Type
Standard version ABS
Protection type
IP65
2365-2416-09-00
ABS housing 2365
Width
240 mm
Height
160 mm
Depth
90 mm
Type
Standard version ABS
Protection type
IP65
2365-2416-12-00
ABS housing 2365
Width
240 mm
Height
160 mm
Depth
120 mm
Type
Standard version ABS
Protection type
IP65
2365-3023-08-00
ABS housing 2365
Width
300 mm
Height
230 mm
Depth
86 mm
Type
Standard version ABS
Protection type
IP65
2365-3023-11-00
ABS housing 2365
Width
300 mm
Height
230 mm
Depth
111 mm
Type
Standard version ABS
Protection type
IP65
2366-0808-05-00
Polycarbonate housing 2366
Width
82 mm
Height
80 mm
Depth
55 mm
Type
Standard version PC
Protection type
IP65
2366-0808-08-00
Polycarbonate housing 2366
Width
82 mm
Height
80 mm
Depth
85 mm
Type
Standard version PC
Protection type
IP65
2366-1208-05-00
Polycarbonate housing 2366
Width
120 mm
Height
80 mm
Depth
55 mm
Type
Standard version PC
Protection type
IP65
2366-1208-08-00
Polycarbonate housing 2366
Width
120 mm
Height
80 mm
Depth
85 mm
Type
Standard version PC
Protection type
IP65
2366-1212-05-00
Polycarbonate housing 2366
Width
122 mm
Height
120 mm
Depth
55 mm
Type
Standard version PC
Protection type
IP65
2366-1212-08-00
Polycarbonate housing 2366
Width
122 mm
Height
120 mm
Depth
85 mm
Type
Standard version PC
Protection type
IP65
2366-1608-05-00
Polycarbonate housing 2366
Width
160 mm
Height
80 mm
Depth
55 mm
Type
Standard version PC
Protection type
IP65
2366-1608-08-00
Polycarbonate housing 2366
Width
160 mm
Height
80 mm
Depth
85 mm
Type
Standard version PC
Protection type
IP65
2366-1612-09-00
Polycarbonate housing 2366
Width
160 mm
Height
120 mm
Depth
90 mm
Type
Standard version PC
Protection type
IP65
2366-2012-07-00
Polycarbonate housing 2366
Width
200 mm
Height
120 mm
Depth
75 mm
Type
Standard version PC
Protection type
IP65
2366-2012-09-00
Polycarbonate housing 2366
Width
200 mm
Height
120 mm
Depth
90 mm
Type
Standard version PC
Protection type
IP65
2366-2015-07-00
Polycarbonate housing 2366
Width
200 mm
Height
150 mm
Depth
75 mm
Type
Standard version PC
Protection type
IP65
2366-2412-10-00
Polycarbonate housing 2366
Width
240 mm
Height
120 mm
Depth
100 mm
Type
Standard version PC
Protection type
IP65
2366-2416-09-00
Polycarbonate housing 2366
Width
240 mm
Height
160 mm
Depth
90 mm
Type
Standard version PC
Protection type
IP65
2366-2416-12-00
Polycarbonate housing 2366
Width
240 mm
Height
160 mm
Depth
120 mm
Type
Standard version PC
Protection type
IP65
2366-3023-08-00
Polycarbonate housing 2366
Width
300 mm
Height
230 mm
Depth
86 mm
Type
Standard version PC
Protection type
IP65
2366-3023-11-00
Polycarbonate housing 2366
Width
300 mm
Height
230 mm
Depth
111 mm
Type
Standard version PC
Protection type
IP65
