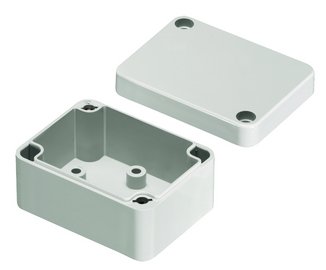

ABS housing 2365

Download center

Wish List

Protection class IP65
Quick-latching

Product description

Synthetic enclosures made of polycarbonate or ABS.

Particularly suitable to encapsulate electrical electronic components, and complete micro control systems.

Seal: neoprene seal in the lid

Lock: quick-release in rust-free stainless steel finish, self-latching, combined cross slot head

Made of polycarbonate, transparent polycarbonate or ABS.

Mounting bosses on the bottom, with enclosed self-tapping screws for mounting of fixtures.

Technical data

Article number: 2365-3023-11-00
Material: ABS
Width: 300 mm
Height: 230 mm
Depth: 111 mm
Number of cover screws: 6
Surface: similar to RAL 7035
TEMPERATURBEREICH_DIC: Enclosures: made of Polycarbonate: -40° to +120°C; Made of ABS: -40° to +80°C
the seal: -30° up to +80°C
Protection class: IP65
Variant: Standard version ABS

Notice

Enclosure with cylinder screws for cover attachment available on request.
Enclosure with silicone seal, available upon request.

Enclosure complete with quick-release.
Self-tapping screws included

2360-7802-00-00

External joint for Polyamide boxes PC and ABS

Material

Thermoplastic

further information

2360-3023-00-61

Mounting plate for PC and ABS housings

Suitable for width

300 mm

Suitable for height

230 mm

further information

2360-7802-00-02

External mounting brackets for PC and ABS plastic housings

Material

Polycarbonate

further information

CAD data and other illustrations:

Save as PDF Direct request

Polycarbonate 2366 and ABS 2365 housing

Seal: neoprene seal in the lid
Lock: quick-release in rust-free stainless steel finish, self-latching, combined cross slot head
Made of polycarbonate, transparent polycarbonate or ABS.
Mounting bosses on the bottom, with enclosed self-tapping screws for mounting of fixtures.


2365-0505-03-00	52 mm	50 mm	35 mm	Standard version ABS	IP65
2366-0505-03-00	52 mm	50 mm	35 mm	Standard version PC	IP65
2365-0605-03-00	65 mm	50 mm	35 mm	Standard version ABS	IP65
2366-0605-03-00	65 mm	50 mm	35 mm	Standard version PC	IP65
2365-0808-05-00	82 mm	80 mm	55 mm	Standard version ABS	IP65
2366-0808-05-00	82 mm	80 mm	55 mm	Standard version PC	IP65
2365-0808-08-00	82 mm	80 mm	85 mm	Standard version ABS	IP65
2366-0808-08-00	82 mm	80 mm	85 mm	Standard version PC	IP65
2365-1208-05-00	120 mm	80 mm	55 mm	Standard version ABS	IP65
2366-1208-05-00	120 mm	80 mm	55 mm	Standard version PC	IP65
2365-1208-08-00	120 mm	80 mm	85 mm	Standard version ABS	IP65
2366-1208-08-00	120 mm	80 mm	85 mm	Standard version PC	IP65
2365-1608-05-00	160 mm	80 mm	55 mm	Standard version ABS	IP65
2366-1608-05-00	160 mm	80 mm	55 mm	Standard version PC	IP65
2365-1608-08-00	160 mm	80 mm	85 mm	Standard version ABS	IP65
2366-1608-08-00	160 mm	80 mm	85 mm	Standard version PC	IP65
2365-1212-05-00	122 mm	120 mm	55 mm	Standard version ABS	IP65
2366-1212-05-00	122 mm	120 mm	55 mm	Standard version PC	IP65
2365-1212-08-00	122 mm	120 mm	85 mm	Standard version ABS	IP65
2366-1212-08-00	122 mm	120 mm	85 mm	Standard version PC	IP65
2365-1612-09-00	160 mm	120 mm	90 mm	Standard version ABS	IP65
2366-1612-09-00	160 mm	120 mm	90 mm	Standard version PC	IP65
2365-2012-07-00	200 mm	120 mm	75 mm	Standard version ABS	IP65
2366-2012-07-00	200 mm	120 mm	75 mm	Standard version PC	IP65
2365-2012-09-00	200 mm	120 mm	90 mm	Standard version ABS	IP65
2366-2012-09-00	200 mm	120 mm	90 mm	Standard version PC	IP65
2365-2412-10-00	240 mm	120 mm	100 mm	Standard version ABS	IP65
2366-2412-10-00	240 mm	120 mm	100 mm	Standard version PC	IP65
2365-2015-07-00	200 mm	150 mm	75 mm	Standard version ABS	IP65
2366-2015-07-00	200 mm	150 mm	75 mm	Standard version PC	IP65
2365-2416-09-00	240 mm	160 mm	90 mm	Standard version ABS	IP65
2366-2416-09-00	240 mm	160 mm	90 mm	Standard version PC	IP65
2365-2416-12-00	240 mm	160 mm	120 mm	Standard version ABS	IP65
2366-2416-12-00	240 mm	160 mm	120 mm	Standard version PC	IP65
2365-3023-08-00	300 mm	230 mm	86 mm	Standard version ABS	IP65
2366-3023-08-00	300 mm	230 mm	86 mm	Standard version PC	IP65
2365-3620-15-00	360 mm	200 mm	150 mm	Standard version ABS	IP65
2366-3620-15-00	360 mm	200 mm	150 mm	Standard version PC	IP65
2365-3023-11-00	300 mm	230 mm	111 mm	Standard version ABS	IP65
2366-3023-11-00	300 mm	230 mm	111 mm	Standard version PC	IP65
