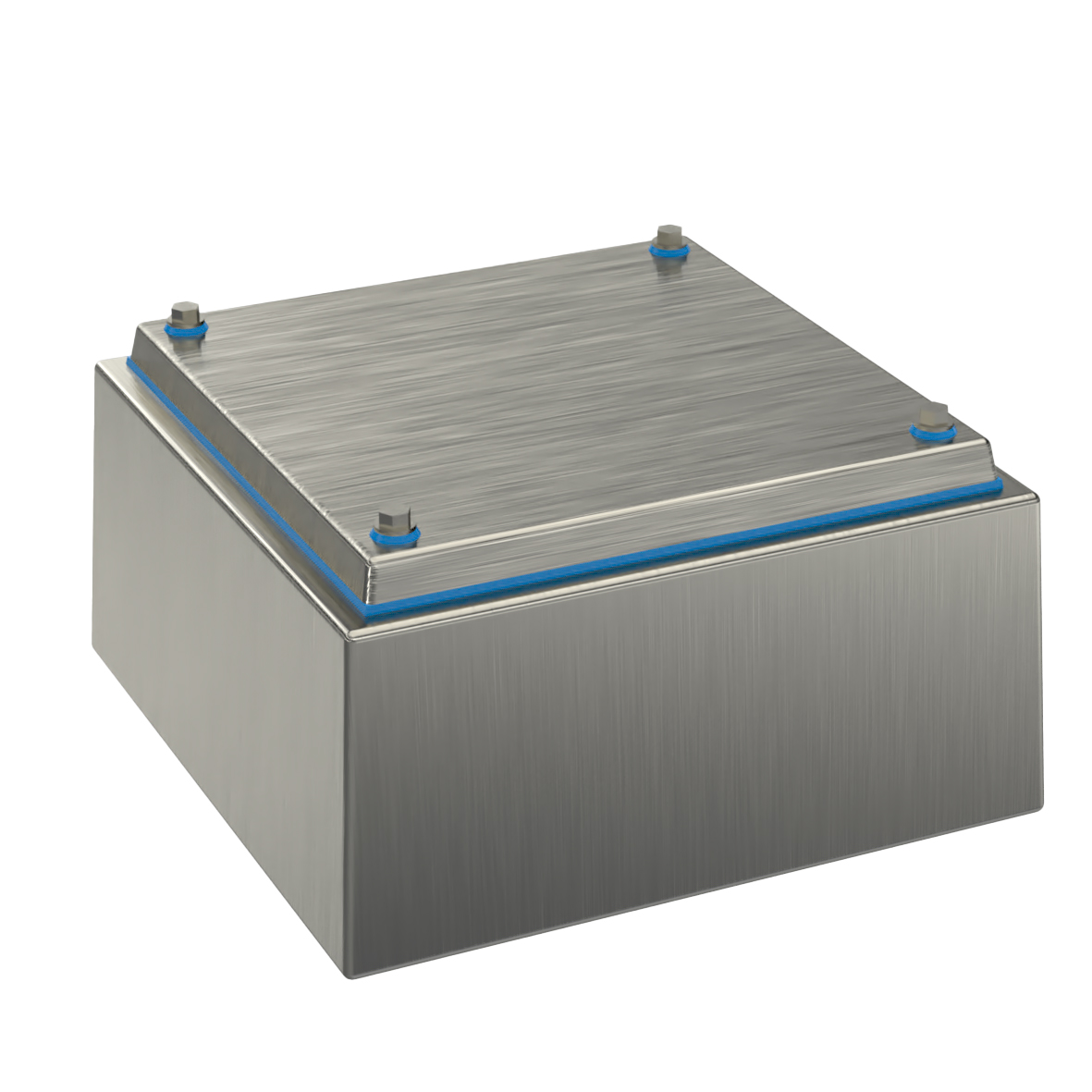

Junction Box Hygienic Equipment HE2451

For hygiene-compliant production in open processes
Protection class: IP66/69
Gap-free fitted hygienic seal
Continuously inclined surfaces

Product description

HE2451 hygienic equipment junction boxes made of stainless steel are designed for the use on machines and low-voltage switchgear and controlgear combinations for the food and luxury goods industry.

Forward inclined surfaces: body 3°, lid 10°.

The external blue silicone seal, complying with FDA requirements 177.2600, ensures a gap-free sealing (no dead zones).

Protective ground connection to DIN EN 61439-1, M5x10 studs on lid and body.

Lock: Captive hexagon screws with external seal.

Junction boxes type HE2451 can be equipped with häwa enclosure and junction box accessories. The Z-profiles in the bottom are made of stainless steel.

Technical data

Article number: 2451-2020-12-00
Variant: without equipment, bolted lid
Dimensions: Length: (nominal dimensions/external dimensions): 200/229 mm
Width: nominal dimensions/external dimensions): 200/229 mm
Depth: (nominal dimensions/external dimensions): 120/120 mm
Material: Stainless steel no. 1.4301
Weight: 2.9 kg
Sheet thickness: Body: 1,5 mm(ga)
Lid: 1,5 mm(ga)
Protective conductor connection: according to DIN EN 61439-1
Surface: externally brushed, surface roughness < 0.8 µm
Protection class: IP66/69
