3353-7000-00-10
Spacer for wall attachment hygiene equipment
- No dead spaces when mounting hygiene equipment.
Product description
Spacers for wall attachment are suitable for mounting hygiene equipment type HE3353 and HE2451 with a hygienic distance to a wall or rack.
The external blue silicone rubber gaskets are in accordance with FDA standards.
Technical data
-
Article number: 3353-7000-00-10
-
PRODUKTGRUPPENNAMEEBENE4: Accessories Enclosures Hygienic Equipment HE3353
-
Material: Stainless steel 1.4301, Gasket: Silicone rubber gasket 60 shore A, blue
-
WANDABSTAND: 50 mm
Notice
- Other wall distances available upon request.

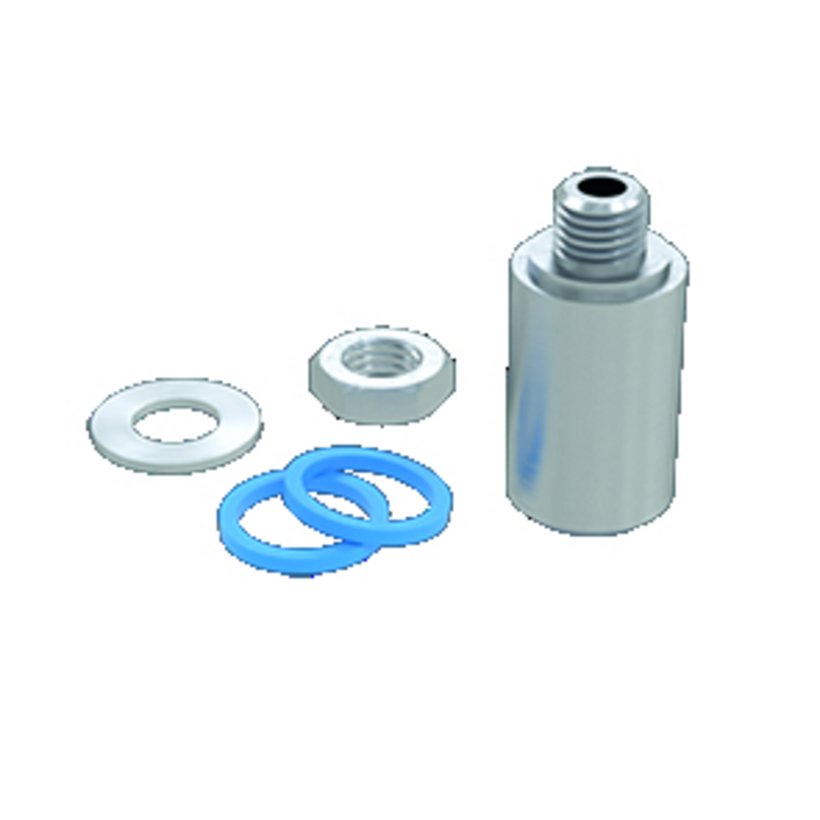

- 1 set consisting of: 1 spacer, 2 silicone rubber gaskets, 1 hexagonal nut, 1 washer
2451-2020-12-00
Junction Box Hygienic Equipment HE2451
Dimensions
Length: (nominal dimensions/external dimensions): 200/229 mm
Width: nominal dimensions/external dimensions): 200/229 mm
Depth: (nominal dimensions/external dimensions): 120/120 mm
Width: nominal dimensions/external dimensions): 200/229 mm
Depth: (nominal dimensions/external dimensions): 120/120 mm
2451-3020-12-00
Junction Box Hygienic Equipment HE2451
Dimensions
Length: (nominal dimensions/external dimensions): 300/329 mm
Width: (nominal dimensions/external dimensions): 200/229 mm
Depth: (nominal dimensions/external dimensions): 120/120 mm
Width: (nominal dimensions/external dimensions): 200/229 mm
Depth: (nominal dimensions/external dimensions): 120/120 mm
2451-3030-12-00
Junction Box Hygienic Equipment HE2451
Dimensions
Length: (nominal dimensions/external dimensions): 300/329 mm
Width: (nominal dimensions/external dimensions): 300/329 mm
Depth: (nominal dimensions/external dimensions): 120/120 mm
Width: (nominal dimensions/external dimensions): 300/329 mm
Depth: (nominal dimensions/external dimensions): 120/120 mm
2451-4030-12-00
Junction Box Hygienic Equipment HE2451
Dimensions
Length: (nominal dimensions/external dimensions): 400/429 mm
Width: (nominal dimensions/external dimensions): 300/329 mm
Depth: (nominal dimensions/external dimensions): 120/120 mm
Width: (nominal dimensions/external dimensions): 300/329 mm
Depth: (nominal dimensions/external dimensions): 120/120 mm
3353-1012-30-10
Enclosure Hygienic Equipment HE3353
Dimensions
Width: (nominal dimensions/external dimensions): 1020/1020 mm
Height: (nominal dimensions/external dimensions): 1220/1393 mm
Depth: (nominal dimensions/external dimensions): 300/304 mm
Height: (nominal dimensions/external dimensions): 1220/1393 mm
Depth: (nominal dimensions/external dimensions): 300/304 mm
3353-4040-20-10
Enclosure Hygienic Equipment HE3353
Dimensions
Width: (nominal dimensions/external dimensions): 420/420 mm
Height: (nominal dimensions/external dimensions): 420/535 mm
Depth: (nominal dimensions/external dimensions): 200/204 mm
Height: (nominal dimensions/external dimensions): 420/535 mm
Depth: (nominal dimensions/external dimensions): 200/204 mm
3353-4060-25-10
Enclosure Hygienic Equipment HE3353
Dimensions
Width: (nominal dimensions/external dimensions): 420/420 mm
Height: (nominal dimensions/external dimensions): 620/764 mm
Depth: (nominal dimensions/external dimensions): 250/254 mm
Height: (nominal dimensions/external dimensions): 620/764 mm
Depth: (nominal dimensions/external dimensions): 250/254 mm
3353-6060-20-10
Enclosure Hygienic Equipment HE3353
Dimensions
Width: (nominal dimensions/external dimensions): 620/620 mm
Height: (nominal dimensions/external dimensions): 620/735 mm
Depth: (nominal dimensions/external dimensions): 200/204 mm
Height: (nominal dimensions/external dimensions): 620/735 mm
Depth: (nominal dimensions/external dimensions): 200/204 mm
3353-6060-30-10
Enclosure Hygienic Equipment HE3353
Dimensions
Width: (nominal dimensions/external dimensions): 620/620 mm
Height: (nominal dimensions/external dimensions): 620/793 mm
Depth: (nominal dimensions/external dimensions): 300/304 mm
Height: (nominal dimensions/external dimensions): 620/793 mm
Depth: (nominal dimensions/external dimensions): 300/304 mm
3353-6080-30-10
Enclosure Hygienic Equipment HE3353
Dimensions
Width: (nominal dimensions/external dimensions): 620/620 mm
Height: (nominal dimensions/external dimensions): 820/993 mm
Depth: (nominal dimensions/external dimensions): 300/304 mm
Height: (nominal dimensions/external dimensions): 820/993 mm
Depth: (nominal dimensions/external dimensions): 300/304 mm
3353-8010-35-10
Enclosure Hygienic Equipment HE3353
Dimensions
Width: (nominal dimensions/external dimensions): 820/820 mm
Height: (nominal dimensions/external dimensions): 1020/1222 mm
Depth: (nominal dimensions/external dimensions): 350/354 mm
Height: (nominal dimensions/external dimensions): 1020/1222 mm
Depth: (nominal dimensions/external dimensions): 350/354 mm
Mounting instructions:
CAD data and other illustrations:
