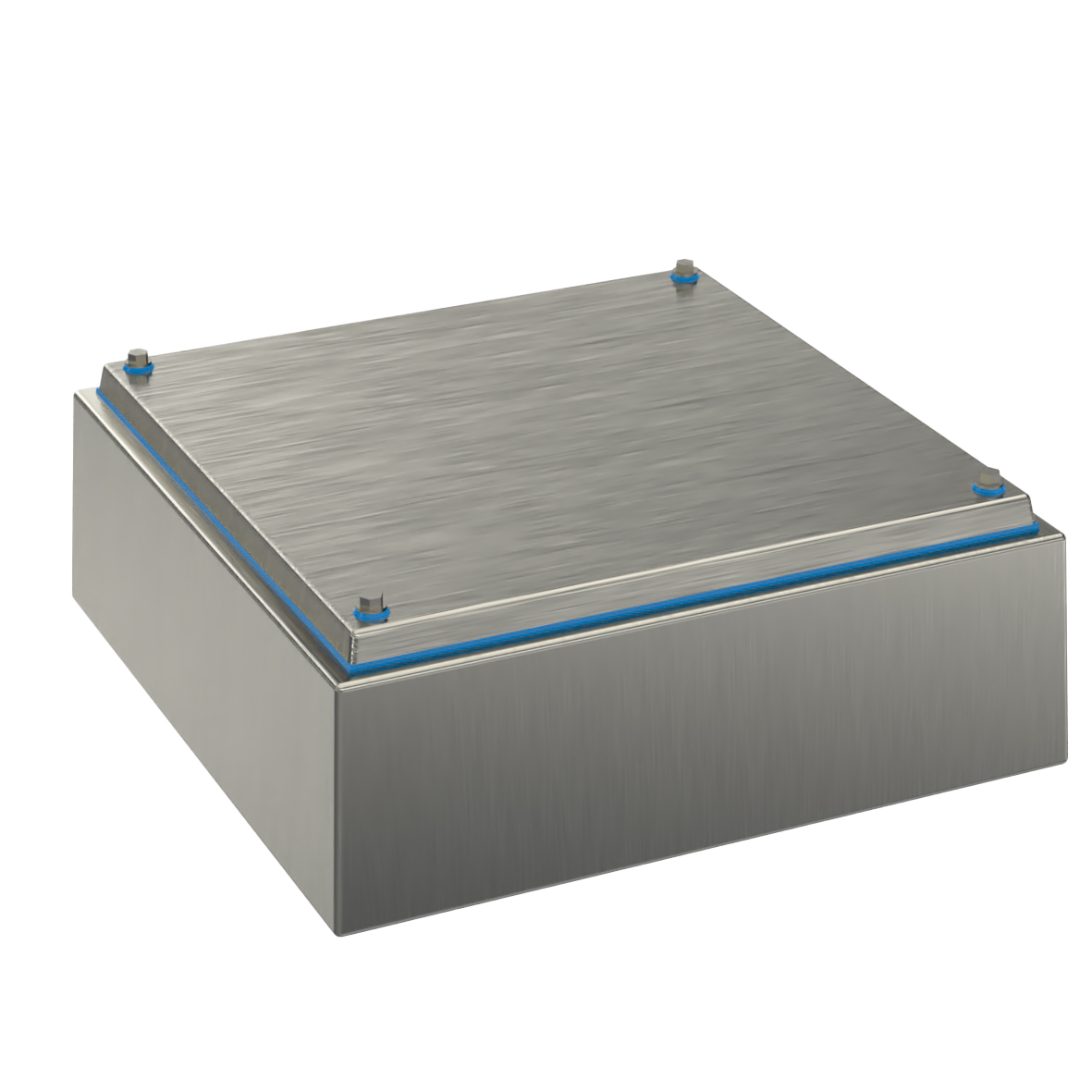

Junction Box Hygienic Equipment HE2451

2451-3030-12-00

Junction Box Hygienic Equipment HE2451

  • For hygiene-compliant production in open processes
  • Protection class: IP66/69
  • Gap-free fitted hygienic seal
  • Continuously inclined surfaces

Product description

HE2451 hygienic equipment junction boxes made of stainless steel are designed for the use on machines and low-voltage switchgear and controlgear combinations for the food and luxury goods industry.

Forward inclined surfaces: body 3°, lid 10°.

The external blue silicone seal, complying with FDA requirements 177.2600, ensures a gap-free sealing (no dead zones).

Protective ground connection to DIN EN 61439-1, M5x10 studs on lid and body.

Lock: Captive hexagon screws with external seal.

Junction boxes type HE2451 can be equipped with häwa enclosure and junction box accessories. The Z-profiles in the bottom are made of stainless steel.

Technical data

  • Article number: 2451-3030-12-00
  • PRODUKTGRUPPENNAMEEBENE4: Junction Box Hygienic Equipment HE2451
  • Variant: without equipment, bolted lid
  • Dimensions: Length: (nominal dimensions/external dimensions): 300/329 mm
    Width: (nominal dimensions/external dimensions): 300/329 mm
    Depth: (nominal dimensions/external dimensions): 120/120 mm
  • Material: Stainless steel no. 1.4301
  • Weight: 5 kg
  • Sheet thickness: Body: 1,5 mm(ga)
    Lid: 1,5 mm(ga)
  • Protective conductor connection: according to DIN EN 61439-1
  • Surface: externally brushed, surface roughness < 0.8 µm
  • Protection class: IP66/69
  • Junction box with lid and mounting hardware
Mounting plate
2408-3030-00-12
Mounting plate
Width
255 mm
Height
285 mm
Apparatus rail
2462-0402-02-91
Apparatus rail
Length
291 mm
Version
DIN 60715 35x15 mm / 1.37x0.59", 1,5mm thick
Apparatus rail
2462-0502-02-91
Apparatus rail
Length
291 mm
Version
DIN EN 60715 35x7,5mm / 1.37x0.29", 1mm thick
Lids for junction boxes type HE2451
2451-3030-01-00
Lids for junction boxes type HE2451
Material
Stainless steel no. 1.4301
Surface
externally brushed, surface roughness < 0.8 µm
Hygiene sealing for junction boxes type HE2451
2451-3030-00-88
Hygiene sealing for junction boxes type HE2451
Material
Silicone FDA 177.2600 conform
Surface
similar to RAL 5017
