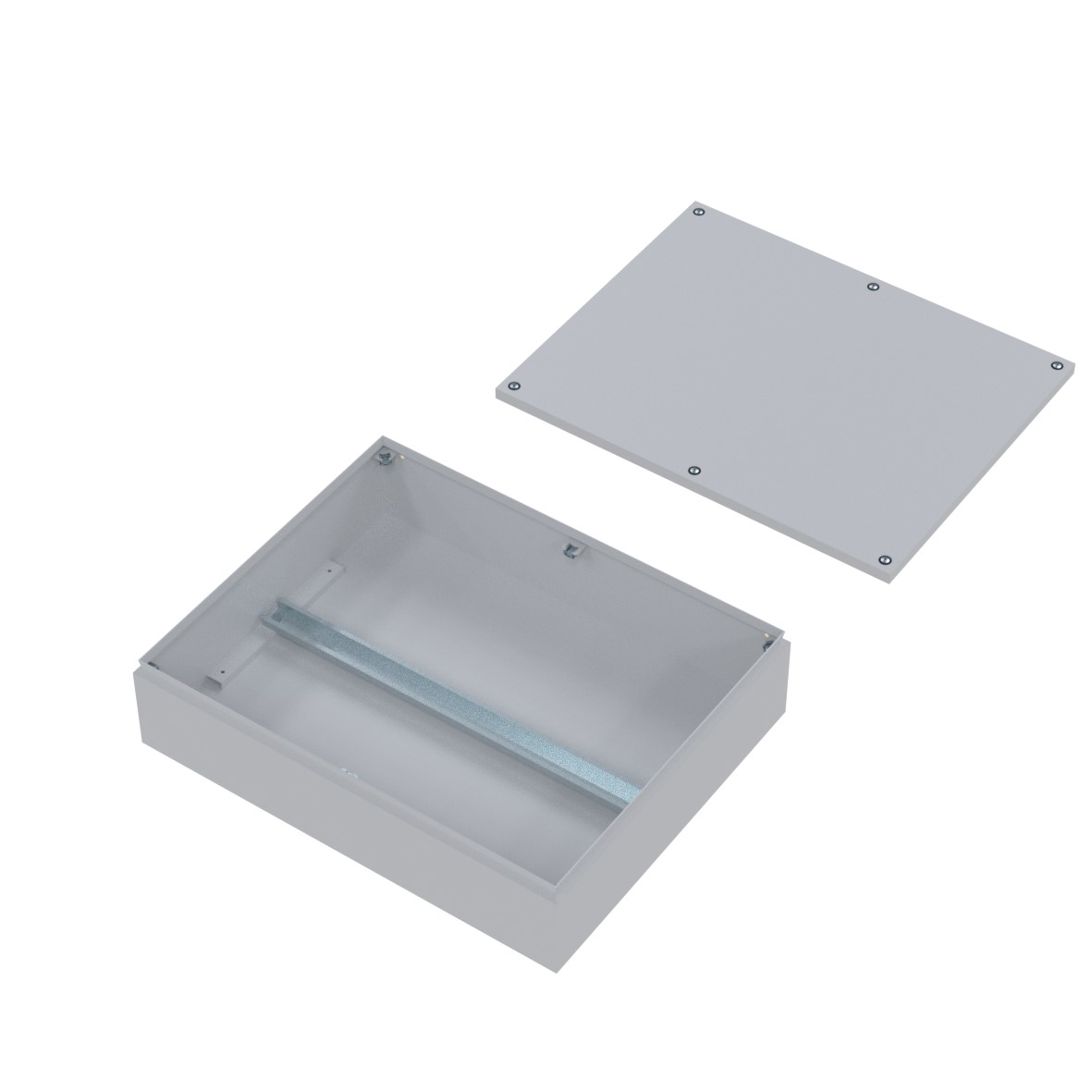

Junction Box K12 Sheet Steel
- Protection class IP66
- Captive lid screws
- Detachable clip nuts
- Including equipment rail
- Approvals: cULus
Product description
Junction boxes for the optimal protection of wiring.
Protective ground connection according to DIN EN 61439-1, bolts M5x10 on lid and body.
Flanged frame 9 mm.
Lid with seamlessly foamed seal.
Screwed lid with captive screws and detachable clip nuts.
Installation system: equipment rails up to enclosure length of 499 mm DIN EN 60715 35 mm x 7.5 mm from enclosure length 500 mm DIN EN 60715 35 mm x 15 mm.
Technical data
-
Article number: 2412-5040-12-37
-
Material: Sheet steel
-
Width: 400 mm
-
Depth: 120 mm
-
Length: 500 mm
-
Number of cover screws: 6
-
Sheet thickness: 1.5 mm
-
Protective conductor connection: according to DIN EN 61439-1
-
Surface: Powder coating RAL 7035, texture finish
-
Protection class: IP66
Type 1, 12, 13; Optional: Type 2, 5, 3, 3R, 4 -
Authorization: cULus
- Junction box with lid and mounted equipment rail
3080-9066-05-05
Wall mounting brackets, Stainless steel
Wall distance
12 mm
Material
Stainless steel
3080-9066-06-05
Wall mounting brackets, Stainless steel
Wall distance
40 mm
Material
Stainless steel
2408-7202-13-04
Screw-on hinge 120°
Material
hinge: zinc die-casting, chrome-plated
mounting hardware: stainless steel
hinge pin: hardened steel
mounting hardware: stainless steel
hinge pin: hardened steel
2408-7202-13-07
Screw-on hinge 120°
Material
hinge: zinc die-casting, black galvanized
mounting hardware: galvanized sheet steel
hinge pin: hardened steel
mounting hardware: galvanized sheet steel
hinge pin: hardened steel
