Junction boxes

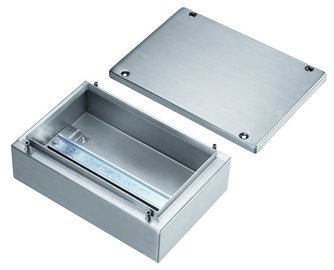

Junction box K11 Stainless Steel

Junction boxes for the optimal protection of wiring.
Protective ground connection to DIN EN 61439-1, studs M5x10 on cover and body.
90° frame: 20 mm.
Cover with seamless integrated foamed seal.
Cover screwed with 4 torx screws, from L = 400 mmwith 6 torx screws, TX25 outlaying PU seal.
Built-in system: apparatus rail length 499 mm, DIN EN 60715 35 x 7.5 mm, from length 500 mm, DIN 60715 35 x 15 mm.


2411-2020-10-30	200 mm	200 mm	100 mm
2411-2520-10-30	200 mm	250 mm	100 mm
2411-3020-10-30	200 mm	300 mm	100 mm
2411-3520-10-30	200 mm	350 mm	100 mm
2411-4020-10-30	200 mm	400 mm	100 mm
2411-5020-10-30	200 mm	500 mm	100 mm
2411-6020-10-30	200 mm	600 mm	100 mm
2411-7020-10-30	200 mm	700 mm	100 mm

Junction Box K8 Sheet Steel

Junction box for the optimum protection of wirings.
Protective ground connection according to DIN EN 61439-1, bolts M5x10 on lid and body.
Flanged frame 9 mm.
Lid with seamlessly foamed seal.
Screwed lid with captive screws and detachable clip nuts.
Installation system: equipment rails up to enclosure length of 499 mm DIN EN 60715 35 mm x 7.5 mm from enclosure length 500 mm DIN EN 60715 35 mm x 15 mm.


2408-1515-80-37	150 mm	150 mm	80 mm
2408-2015-80-37	150 mm	200 mm	80 mm
2408-2020-80-37	200 mm	200 mm	80 mm
2408-2515-80-37	150 mm	250 mm	80 mm
2408-3015-80-37	150 mm	300 mm	80 mm
2408-3020-80-37	200 mm	300 mm	80 mm
2408-3030-80-37	300 mm	300 mm	80 mm
2408-3515-80-37	150 mm	350 mm	80 mm
2408-4015-80-37	150 mm	400 mm	80 mm
2408-4020-80-37	200 mm	400 mm	80 mm
2408-4030-80-37	300 mm	400 mm	80 mm
2408-4040-80-37	400 mm	400 mm	80 mm
2408-5015-80-37	150 mm	500 mm	80 mm
2408-5020-80-37	200 mm	500 mm	80 mm
2408-6015-80-37	150 mm	600 mm	80 mm
2408-6020-80-37	200 mm	600 mm	80 mm
2408-7015-80-37	150 mm	700 mm	80 mm
2408-7020-80-37	200 mm	700 mm	80 mm

Junction Box K10 Sheet Steel

Junction boxes for the optimal protection of wiring.
Protective ground connection to DIN EN 61439-1, studs M5x10 on cover and body.
90° framel: 20 mm.
Cover with seamless integrated foamed seal.
Cover screwed with captive screws outlaying the PU seals.
Cover fixed with 4 screws, from L=400 mm with 6 hexagon screws PH2 outside the PU-sealing.
Steel with improved pre-treatment through iron phosphating and deionized water rinse, as well as eco-friendly powder paint coating.


2410-2020-10-37	200 mm	200 mm	100 mm
2410-2520-10-37	200 mm	250 mm	100 mm
2410-3020-10-37	200 mm	300 mm	100 mm
2410-3520-10-37	200 mm	350 mm	100 mm
2410-4020-10-37	200 mm	400 mm	100 mm
2410-5020-10-37	200 mm	500 mm	100 mm
2410-6020-10-37	200 mm	600 mm	100 mm
2410-7020-10-37	200 mm	700 mm	100 mm

Junction Box K12 Sheet Steel

Junction boxes for the optimal protection of wiring.
Protective ground connection according to DIN EN 61439-1, bolts M5x10 on lid and body.
Flanged frame 9 mm.
Lid with seamlessly foamed seal.
Screwed lid with captive screws and detachable clip nuts.
Installation system: equipment rails up to enclosure length of 499 mm DIN EN 60715 35 mm x 7.5 mm from enclosure length 500 mm DIN EN 60715 35 mm x 15 mm.


2412-1515-12-37	150 mm	150 mm	120 mm
2412-2015-12-37	150 mm	200 mm	120 mm
2412-2020-12-37	200 mm	200 mm	120 mm
2412-2515-12-37	150 mm	250 mm	120 mm
2412-3015-12-37	150 mm	300 mm	120 mm
2412-3020-12-37	200 mm	300 mm	120 mm
2412-3030-12-37	300 mm	300 mm	120 mm
2412-3515-12-37	150 mm	350 mm	120 mm
2412-4015-12-37	150 mm	400 mm	120 mm
2412-4020-12-37	200 mm	400 mm	120 mm
2412-4030-12-37	300 mm	400 mm	120 mm
2412-4040-12-37	400 mm	400 mm	120 mm
2412-5015-12-37	150 mm	500 mm	120 mm
2412-5020-12-37	200 mm	500 mm	120 mm
2412-5030-12-37	300 mm	500 mm	120 mm
2412-5040-12-37	400 mm	500 mm	120 mm
2412-6015-12-37	150 mm	600 mm	120 mm
2412-6020-12-37	200 mm	600 mm	120 mm
2412-6030-12-37	300 mm	600 mm	120 mm
2412-6040-12-37	400 mm	600 mm	120 mm
2412-7015-12-37	150 mm	700 mm	120 mm
2412-7020-12-37	200 mm	700 mm	120 mm
2412-7030-12-37	300 mm	700 mm	120 mm
2412-7040-12-37	400 mm	700 mm	120 mm
