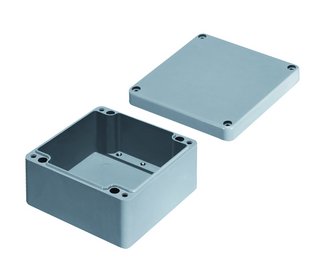

Polyester housings 2367

2367-1607-05-00

Polyester housings 2367

  • Protection class: IP66
  • Ideal for extreme environmental stress
  • Captive lid screws

Product description

Enclosure made of high quality polyester with glass fiber, reinforcement for durable protection against aggressive factors, extreme environmental stress, rough operation, low temperatures and moisture operation.

Particularly suitable for housing and encapsulating of electrical, electronic and control components.

Seal: incorporated in the lid EPDM seal

Closure: stainless steel lid screws corrosion-resistant and captive by rotating rib, cross-slot headed scres.

Bar at the lower narrow side; for height = 75 mm 2 pieces, and from height = 120 mm, press-fitted threaded bushes M4 or M6 for fastening a mounting plate or mounting rail.

Technical data

  • Article number: 2367-1607-05-00
  • Material: polyester
  • Width: 160 mm
  • Height: 75 mm
  • Depth: 55 mm
  • Surface: similar to RAL 7001
  • TEMPERATURBEREICH_DIC: the seal: -40 °C up to +100 °C/-104 °F up to +212 °F
  • Protection class: IP66
  • Enclosures complete
Polyester housings 2367
Polyester housings 2367
Seal: incorporated in the lid EPDM seal
Closure: stainless steel lid screws corrosion-resistant and captive by rotating rib, cross-slot headed scres.
Bar at the lower narrow side; for height = 75 mm 2 pieces, and from height = 120 mm, press-fitted threaded bushes M4 or M6 for fastening a mounting plate or mounting rail.

Remember
80 mm
75 mm
55 mm
IP66
110 mm
75 mm
55 mm
IP66
160 mm
75 mm
55 mm
IP66
190 mm
75 mm
55 mm
IP66
122 mm
120 mm
90 mm
IP66
220 mm
120 mm
90 mm
IP66
160 mm
160 mm
90 mm
IP66
260 mm
160 mm
90 mm
IP66
360 mm
160 mm
90 mm
IP66
255 mm
250 mm
120 mm
IP66
400 mm
250 mm
120 mm
IP66
400 mm
405 mm
120 mm
IP66
