2367-1907-05-00

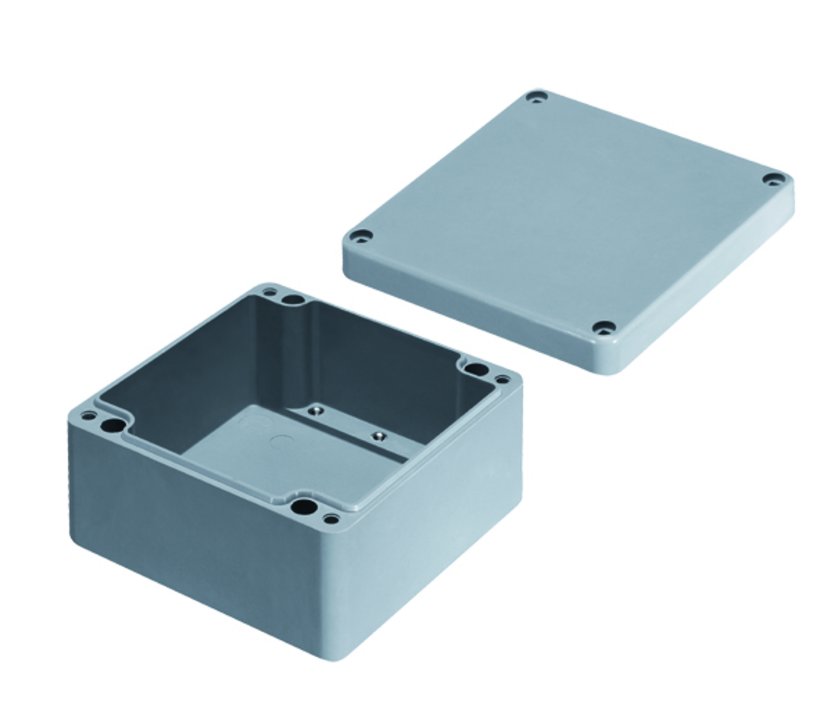

Polyester housings 2367
- Protection class: IP66
- Ideal for extreme environmental stress
- Captive lid screws
Product description
Enclosure made of high quality polyester with glass fiber, reinforcement for durable protection against aggressive factors, extreme environmental stress, rough operation, low temperatures and moisture operation.
Particularly suitable for housing and encapsulating of electrical, electronic and control components.
Seal: incorporated in the lid EPDM seal
Closure: stainless steel lid screws corrosion-resistant and captive by rotating rib, cross-slot headed scres.
Bar at the lower narrow side; for height = 75 mm 2 pieces, and from height = 120 mm, press-fitted threaded bushes M4 or M6 for fastening a mounting plate or mounting rail.
Technical data
-
Article number: 2367-1907-05-00
-
Material: polyester
-
Width: 190 mm
-
Height: 75 mm
-
Depth: 55 mm
-
Surface: similar to RAL 7001
-
TEMPERATURBEREICH_DIC: the seal: -40 °C up to +100 °C/-104 °F up to +212 °F
-
Protection class: IP66
- Enclosures complete
2360-1907-00-61
Mounting plate for Polyester housings
Suitable for width
190 mm
Suitable for height
75 mm
Mounting instructions:
CAD data and other illustrations:
