2441-3030-12-07

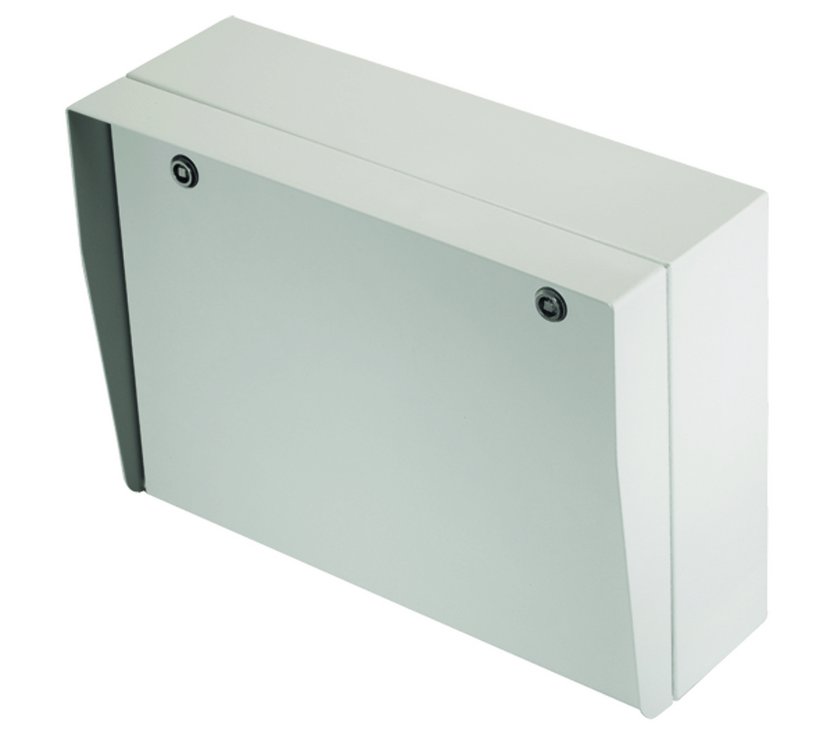

Keypad enclosure
Product description
Keypad enclosure with front edged frame to protect the built-in device.
Especially suitable for control enclosures.
Protective ground connection to DIN EN 61439-1, studs M5x16 on cover and body.
90° frame: 20 mm.
Cover with seamless integrated foamed seal.
Cover bottom hinged, opening angle 180 °.
Closure: 6 mm square actuation.
Front frame: edged to the front, unscrewable.
Steel with improved pre-treatment through iron phosphating and deionized water rinse, as well as eco-friendly powder paint coating.
Technical Data
-
Order No.: 2441-3030-12-07
-
Material: Sheet steel
-
Width: 300 mm
-
Height: 300 mm
-
Depth: 120 mm
-
Sheet thickness: 1,5 mm/0,0,6"
-
Protective ground connection: according to DIN EN 61439-1
-
Surface: Powder coating RAL 7035, texture finish
-
Protection type: IP65
-
Mounting plate edged: 0
- Enclosure, cover and front frame.
0351-9066-03-00
Wall mounting brackets, Stainless steel
Distance
Wall: 6 mm
Material
Stainless steel
3080-9066-05-05
Wall mounting brackets, Stainless steel
Distance
Wall: 12 mm
Material
Stainless steel
3080-9066-06-05
Wall mounting brackets, Stainless steel
Distance
Wall: 40 mm
Material
Stainless steel

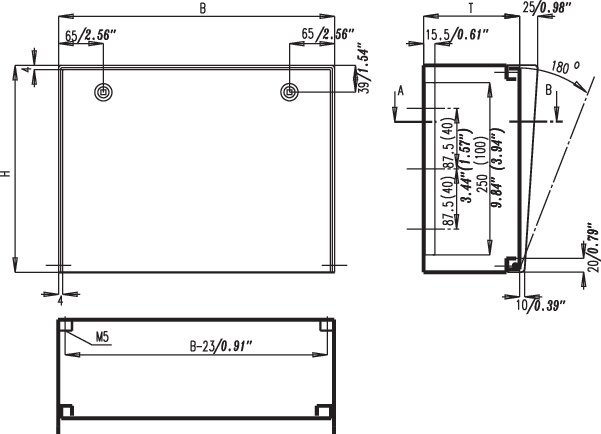

CAD data and other file formats:
