2441-6040-20-07

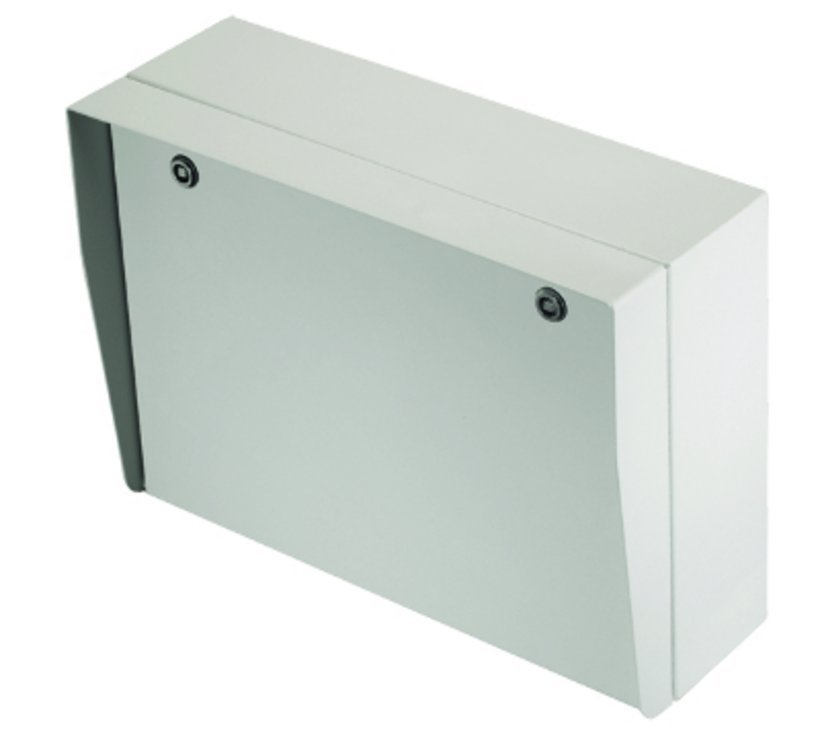

Keypad enclosure
Product description
Keypad enclosure with front edged frame to protect the built-in device.
Especially suitable for control enclosures.
Protective ground connection to DIN EN 61439-1, studs M5x16 on cover and body.
90° frame: 20 mm.
Cover with seamless integrated foamed seal.
Cover bottom hinged, opening angle 180 °.
Closure: 6 mm square actuation.
Front frame: edged to the front, unscrewable.
Steel with improved pre-treatment through iron phosphating and deionized water rinse, as well as eco-friendly powder paint coating.
Technical data
-
Article number: 2441-6040-20-07
-
Material: Sheet steel
-
Width: 600 mm
-
Height: 400 mm
-
Depth: 200 mm
-
Sheet thickness: 1.5 mm
-
Protective conductor connection: according to DIN EN 61439-1
-
Surface: Powder coating RAL 7035, texture finish
-
Protection class: IP65
- Enclosure, cover and front frame.
3080-9066-05-05
Wall mounting brackets, Stainless steel
Wall distance
12 mm
Material
Stainless steel
3080-9066-06-05
Wall mounting brackets, Stainless steel
Wall distance
40 mm
Material
Stainless steel
