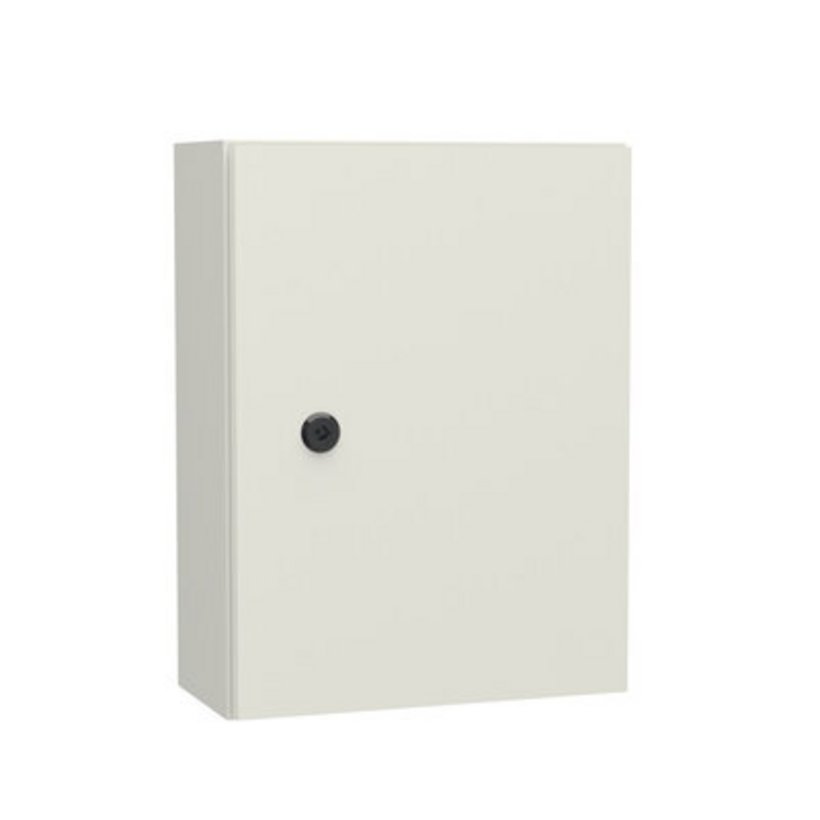

Wall-mount enclosures series 33 sheet steel, 1 door

Wall-mount enclosure with single door. Optionally with or without mounting plate.

Protective ground connection to DIN EN 61439-1, M6x16 studs on door and body.

Double flanged edges and a narrow door gap prevent dust and water from entering the enclosure when opening the door.

Door with seamlessly foamed gasket, can be mounted either at left or right side, standard delivery includes door hinged on right side. Door stop change possible without drilling.

Hidden hinges made of sheet steel; opening angle 180°.

Lock: up to H- 400 mm / 15.74” with 1 quarter-turn latch lock, from H-401 mm / 15.78” with 2 quarter turn latch locks, from H-801 mm / 31.53” with 3-point locking, standard locking bolt 3 mm double mandrel.

Doors from H-400 mm / 15.74” are fitted on both sides with reinforcing / perforated profiles with attachment holes Ø 4.2 mm every 25 mm.

Bottom from W ≥ 400 / 15.74” and D ≥ 200 mm / 7.87” with external sheet steel cable entry plate(s) flush with enclosure (size 1: LxW: 355x155 mm / 13.97x6.10”, useful area: 325x125 mm / 12.79x4.92”; size 2 LxW: 555x155 mm / 21.85x4.92”, useful area: 525x125 mm / 20.66x4.92”) fixed with special M4 Gefu-screws with T20 Torx.

Mounting plate on rear panel with securing screw standard length M8x30, maximum 10 mm / 0.39” adjustable to depth. The flanged mounting plate is fixed.

Wall attachment: Rear panel with 4 holes Ø 9 mm / 0.35” for mounting wall attachment brackets.
