3331-8080-20-17

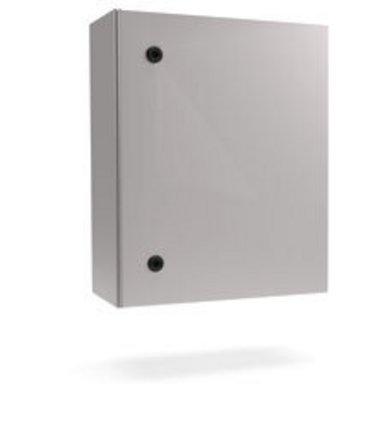

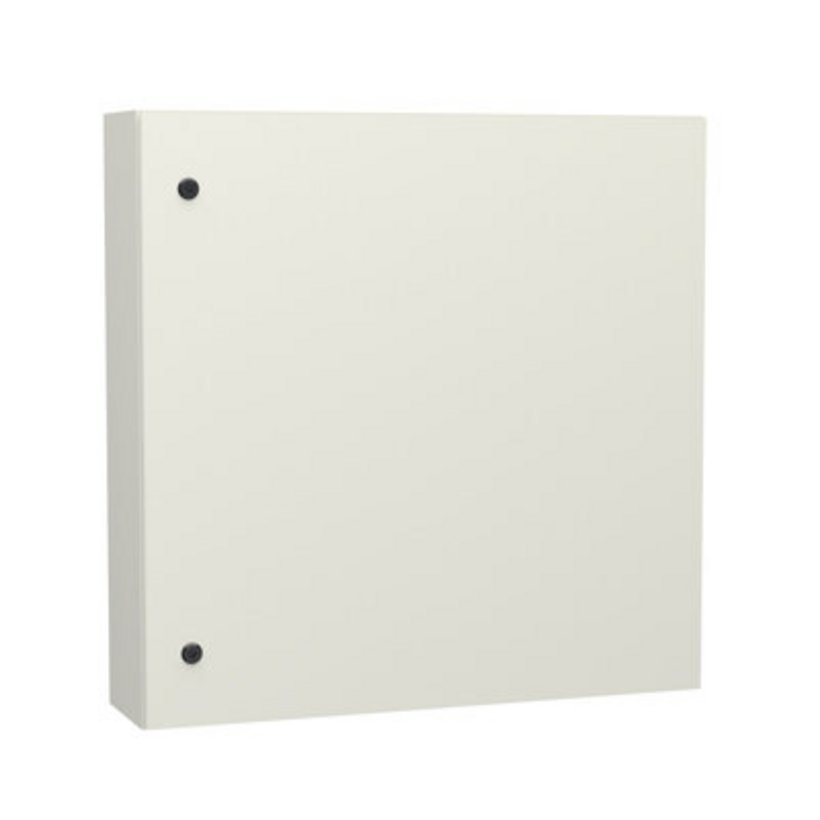

Wall-mount enclosures series 33 sheet steel, 1 door
- Protection class IP66
- 180° hidden hinges
- 26.5 mm / 1.04” wide solid frame
- Narrow door gap
- Door stop change possible without drilling
- Maximum useful depth: D-16mm / 0.62”
- Flexible system accessories
- Approval: cULus
Product description
Wall-mount enclosure with single door. Optionally with or without mounting plate.
Protective ground connection to DIN EN 61439-1, M6x16 studs on door and body.
Double flanged edges and a narrow door gap prevent dust and water from entering the enclosure when opening the door.
Door with seamlessly foamed gasket, can be mounted either at left or right side, standard delivery includes door hinged on right side. Door stop change possible without drilling.
Hidden hinges made of sheet steel; opening angle 180°.
Lock: up to H- 400 mm / 15.74” with 1 quarter-turn latch lock, from H-401 mm / 15.78” with 2 quarter turn latch locks, from H-801 mm / 31.53” with 3-point locking, standard locking bolt 3 mm double mandrel.
Doors from H-400 mm / 15.74” are fitted on both sides with reinforcing / perforated profiles with attachment holes Ø 4.2 mm every 25 mm.
Bottom from W ≥ 400 / 15.74” and D ≥ 200 mm / 7.87” with external sheet steel cable entry plate(s) flush with enclosure (size 1: LxW: 355x155 mm / 13.97x6.10”, useful area: 325x125 mm / 12.79x4.92”; size 2 LxW: 555x155 mm / 21.85x4.92”, useful area: 525x125 mm / 20.66x4.92”) fixed with special M4 Gefu-screws with T20 Torx.
Mounting plate on rear panel with securing screw standard length M8x30, maximum 10 mm / 0.39” adjustable to depth. The flanged mounting plate is fixed.
Wall attachment: Rear panel with 4 holes Ø 9 mm / 0.35” for mounting wall attachment brackets.
Technical Data
-
Order No.: 3331-8080-20-17
-
Type: with mounting plate
-
Material: Sheet steel
-
Width: 800 mm
-
Height: 800 mm
-
Depth: 200 mm
-
Weight: 36.81 kg
-
Included mounting plate: 0331-8080-00-13
-
Number of: Cable plate: 2
-
Size of cable entry plate: size 1
-
Sheet thickness: Body: 1,5 mm
Door: 1,5 mm -
Maximum installation: depth of D-16 mm/0,63" or D-24 mm/0,94" with edged mounting panel (20 mm/0,79")
-
Protective ground connection: according to DIN EN 61439-1
-
Surface: Powder coating RAL 7035, texture finish
-
Lock: plastic housing, locking bolt: GDZn black, latch: galvanized
-
Mounting plate: Galvanized, 2 mm, from enclosure width/height 600x600 mm / 23.62x23.62” 2.5 mm, from width/height 801 mm /31.53” flanged 20 mm
-
Approval: cULus
-
Protection type: IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R -
Mounting plate edged: 0
Notice
- Compact handle 3070-0908-00-01 (for elongated barrel). Other modifications on request.
- Enclosure complete with mounting plate (supplied unmounted) and with mounting hardware, attachment kit for grounding and one key.
- Depending on dimensions with cable entry plate(s).
