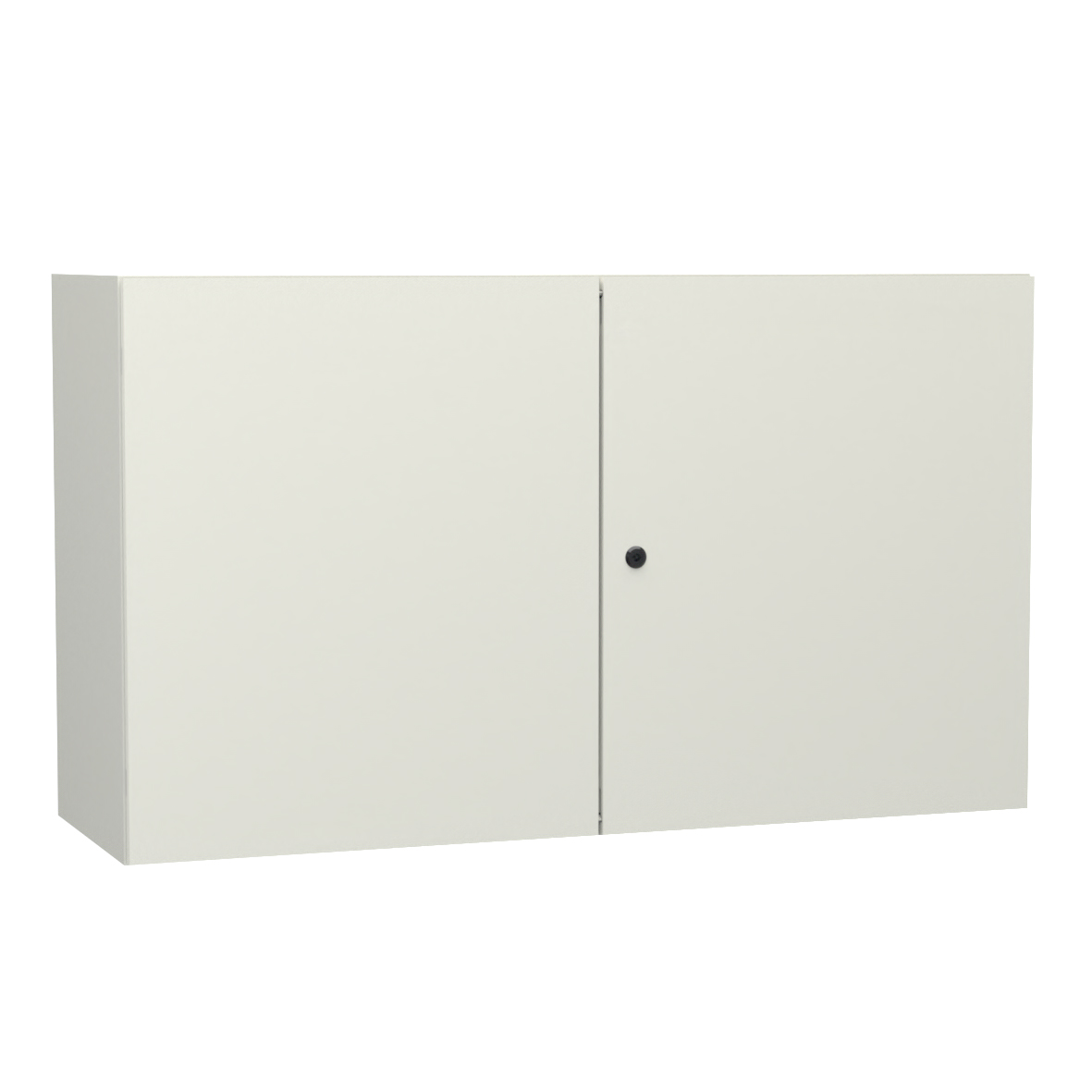

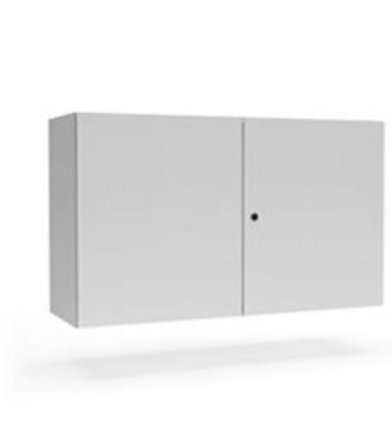

Wall enclosure landscape format, sheet steel

3339-1270-40-17

Wall enclosure landscape format, sheet steel

  • Degree of protection IP55
  • 180° concealed hinges
  • Stable frame 26,5 mm wide
  • Narrow door gap
  • Doors top change without drilling
  • Large usable depth max. d-16 mm

Product description

Wall enclosure with 1-wing resp. 2-wing door

With mounting plate

Protective ground connection with DIN EN 61439-1, studs M6 x 16 at door(s) and corpus

Double over-stamped frame and narrow door gap avoid entry of dirt and water when opening door

Door(s) with continuously foamed sealing, in case of 1-wing door: version on the right and on the left attachable, standard stop on the right, standard stop change without drilling, in case of 2-wing version: right door wing overlapped.

Concealed hinges, out of steel, opening angle 180°

Closure: 3-point locking, standard actuation 3mm two-way key bit

Door(s) both-sided with reinforcing strip/perforated section with anchor points in 25 mm grid for screws size M5

Floor with inside plate(s) for cables out made of sendzimir galvanized steel sheet, all-round tilted, sealing by means of PU-foam (usable space per plate for cables: 500 x 125 mm) fixed on bolts M6 x 16

Mounting plate on back wall fixed on bolts M8 x 30, floor with mounting profiles

Wall mounting: back wall with 4 drills Ø 9 mm

Technical data

  • Article number: 3339-1270-40-17
  • PRODUKTGRUPPENNAMEEBENE4: Wall enclosure landscape format
  • Floor with: 2 cut-out 500x125 mm (19.69 x4.92") with 6 attachment studs M6x16, distance between cut-out and rear panel 50 mm (1,97")
  • Variant: double door
  • Material: Sheet steel
  • Width: 1200 mm
  • Height: 700 mm
  • Depth: 400 mm
  • Weight: 62.24 kg
  • Number of cable plates: 2
  • Sheet thickness: Body: 1,5 mm
    Door: 1,5 mm
  • Maximum installation depth: depth of d-12 resp. d-24 mm in case of tilted mounting plate (20 mm)
  • Protective conductor connection: according to DIN EN 61439-1
  • Surface: Powder coating RAL 7035, texture finish, plate(s) for cables out made of sendzimir galvanized steel sheet
  • Closure: plastic housing, locking bolt: GDZn black, latch: galvanized
  • Mounting plate: sendzimir galvanized, 2,5 mm, ab B-1000 mm tilted 20 mm
  • Constructively designed according to: IP 55, meets technical requirements according to Type 12

Notice

  • Compact handle (for elongated barrel). Other modifications on request.
  • Enclosure complete with mounting plate and its fixing parts, as well as 1 key. Depending on the dimensions with cable entry plate(s)
