3339-8070-30-17

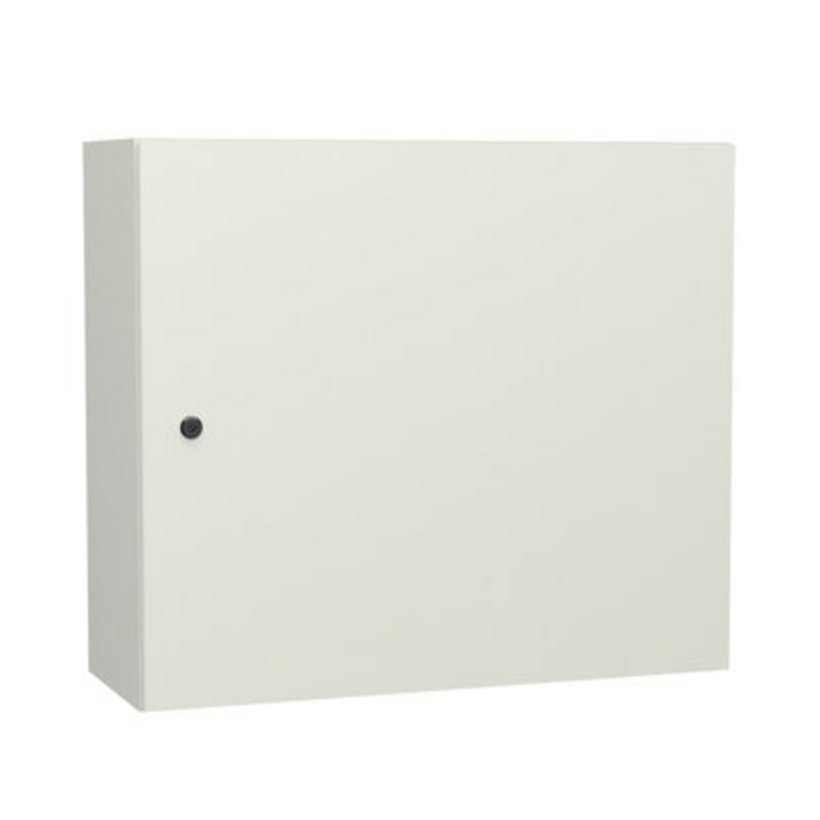

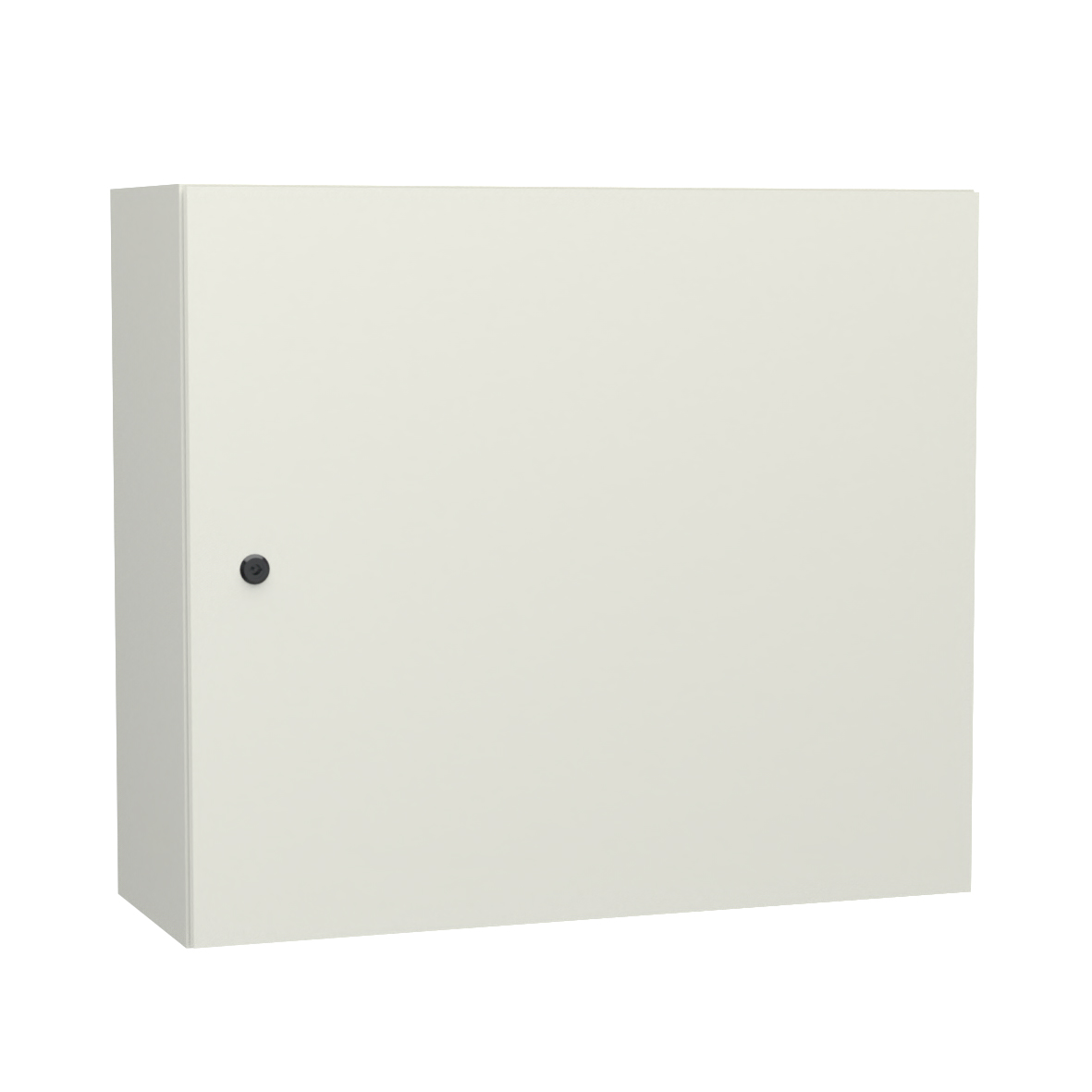

Wall enclosure landscape format, sheet steel
- Degree of protection IP55
- 180° concealed hinges
- Stable frame 26,5 mm wide
- Narrow door gap
- Doors top change without drilling
- Large usable depth max. d-16 mm
Product description
Wall enclosure with 1-wing resp. 2-wing door, with mounting plate.
Protective ground connection with DIN EN 61439-1, studs M6 x 16 at door(s) and corpus.
Double over-stamped frame and narrow door gap avoid entry of dirt and water when opening door.
Door(s) with continuously foamed sealing, in case of 1-wing door: version on the right and on the left attachable, standard stop on the right, standard stop change without drilling, in case of 2-wing version: right door wing overlapped.
Concealed hinges, out of steel, opening angle 180°.
Closure: 3-point locking, standard actuation 3mm two-way key bit.
Door(s) both-sided with reinforcing strip/perforated section with anchor points in 25 mm grid for screws size M5.
Floor with inside plate(s) for cables out made of sendzimir galvanized steel sheet, all-round tilted, sealing by means of PU-foam (usable space per plate for cables: 500 x 125 mm) fixed on bolts M6 x 16.
Mounting plate on back wall fixed on bolts M8 x 30, floor with mounting profiles.
Wall mounting: back wall with 4 drills Ø 9 mm.
Technical data
-
Article number: 3339-8070-30-17
-
Floor with: 1 cut-out 500x125 mm (19.69 x4.92") with 6 attachment studs M6x16, distance between cut-out and rear panel 50 mm (1,97")
-
Variant: single door
-
Door: hinged on the right
-
Material: Sheet steel
-
Width: 800 mm
-
Height: 700 mm
-
Depth: 300 mm
-
Weight: 36.6 kg
-
Number of cable plates: 1
-
Sheet thickness: Body: 1,5 mm
Door: 1,5 mm -
Maximum installation depth: depth of d-12 resp. d-24 mm in case of tilted mounting plate (20 mm)
-
Protective conductor connection: according to DIN EN 61439-1
-
Surface: Powder coating RAL 7035, texture finish, plate(s) for cables out made of sendzimir galvanized steel sheet
-
Closure: plastic housing, locking bolt: GDZn black, latch: galvanized
-
Mounting plate: sendzimir galvanized, 2,5 mm, ab B-1000 mm tilted 20 mm
-
Constructively designed according to: IP 55, meets technical requirements according to Type 12
Notice
- Compact handle 3070-0908-00-01 (for elongated barrel). Other modifications on request.
- Enclosure complete with mounting plate and its fixing parts, as well as 1 key. Depending on the dimensions with cable entry plate(s)
