7595-7401-30-0250
HMA I-080 Profile Tubes
- Modular suspension
- Load-dependent inclination adjustment
- Cable passage 55 x 43 mm
Product description

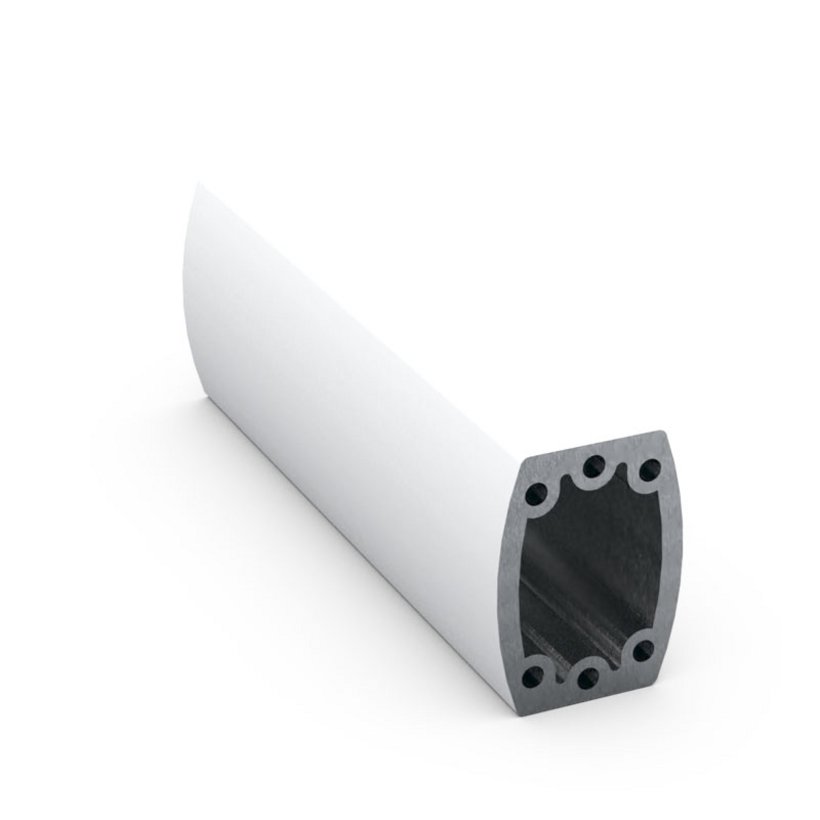

HMA I-080 profile tube for horizontal and vertical assembly.
Load-dependent inclination adjustment up to 4° by means of adjustment screws.
Technical data
-
Article number: 7595-7401-30-0250
-
Protection class: according to IP54
-
max. cable aperture: 55 x 43 mm/2,17 x 1,69"
-
Dimensions: Length: 250 mm
-
Material: Extruded aluminum profiles
-
Surface: RAL 7035
-
Weight: 1.5 kg
Notice
- Configurations and load carrying capacities, see operation manual.
- For a pendant arm system with joint, the length of the individual profiles is variable up to max. 1500 mm.
- The total length of all horizontal profiles must not exceed 2000 mm.
- HMA I-080 profile tube without mounting hardware
Mounting instructions:
CAD data and other illustrations:
