7595-7601-30-1500
HMA I-080 Profile Tubes
- Modular suspension
- Load-dependent inclination adjustment
- Cable passage 55 x 43 mm
Product description

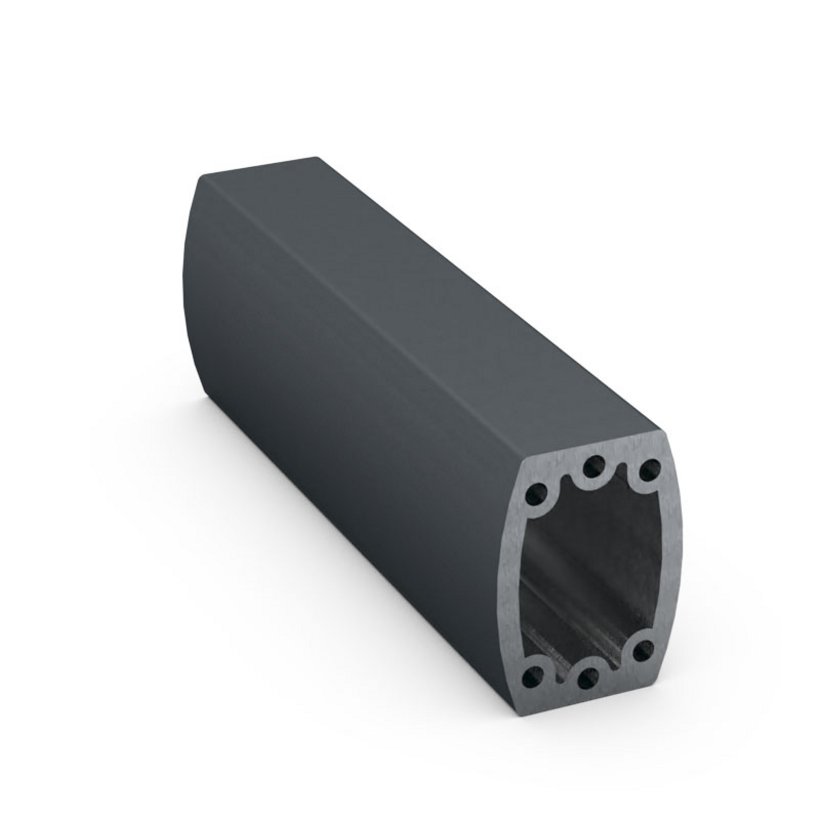

HMA I-080 profile tube for horizontal and vertical assembly.
Load-dependent inclination adjustment up to 4° by means of adjustment screws.
Technical Data
-
Order No.: 7595-7601-30-1500
-
Protection type: according to IP54
-
Cable passage: 55 x 43 mm/2,17 x 1,69"
-
Dimension: Length: 1.500 mm
-
Material: Extruded aluminum profiles
-
Surface: RAL 7016
-
Weight: 9 kg
Notice
- Configurations and load carrying capacities, see operation manual.
- For a pendant arm system with joint, the length of the individual profiles is variable up to max. 1500 mm.
- The total length of all horizontal profiles must not exceed 2000 mm.
- HMA I-080 profile tube without mounting hardware
Assembly instructions:
CAD data and other file formats:
