2330-0018-11-10

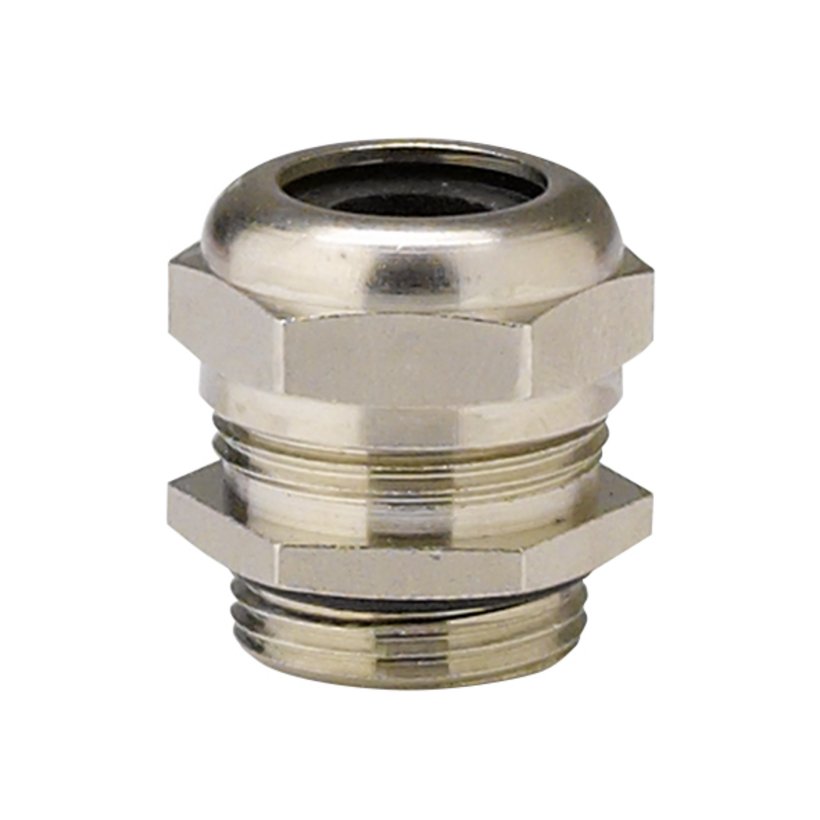

Cable gland, nickel-plated
Product description
Easy-to-install gland with good sealing and clamping range.
To be used with high mechanical and chemical stability requirements.
Integrated strain relief.
Technical data
-
Article number: 2330-0018-11-10
-
Protection class: IP65
-
Length: 24.5 mm
-
Material: Cap nut + body: Nickel-plated brass
Sealing insert: Polychloroprene-Nitrile rubber CR/NBR
O-Ring: Nitrile rubber NBR -
Connection thread: PG
-
Temperature resistance: from: -30 °C/-86 °F to: +110 °C/+230 °F
-
Width across flats: 20 mm
-
Gewinde: PG 11
-
Thread length L: 6 mm
-
Clamping range: from : 7 mm
- 1 unit
CAD data and other illustrations:
