2330-0603-40-15

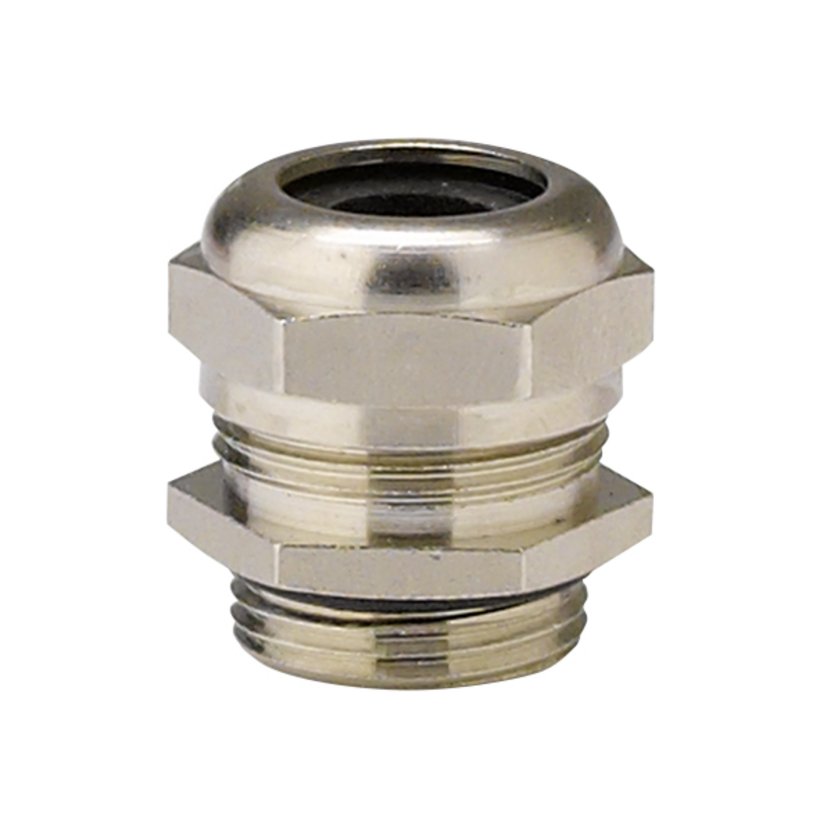

Cable gland IP55, nickel-plated
Product description
Easy-to-install gland with good sealing and clamping range.
To be used with high mechanical and chemical stability requirements.
Integrated strain relief.
Technical data
-
Article number: 2330-0603-40-15
-
Protection class: IP55
-
Length: 32.5 mm
-
Material: Cap nut + body: Nickel-plated brass
Sealing insert: Polychloroprene-Nitrile rubber CR/NBR
O-Ring: Nitrile rubber NBR -
Connection thread: metric
-
Temperature resistance: from: -30 °C/-86 °F to: +100 °C/+212 °F
-
Width across flats: 43 mm
-
Gewinde: M 40 x 1,5
-
Thread length L: 8 mm
-
Clamping range: from : 17 mm
- 1 unit
CAD data and other illustrations:
