2331-0002-40-15

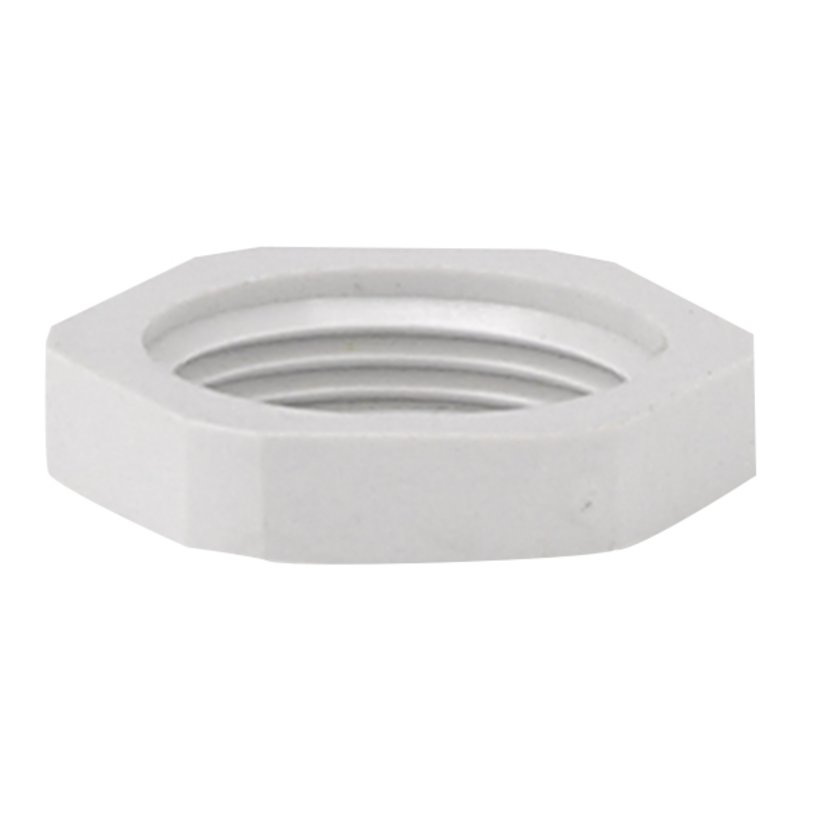

Hexagon nut
Product description
To secure cable glands and other components.
Technical data
-
Article number: 2331-0002-40-15
-
Material: PA6 30GF
-
Surface: RAL 7035 / *black
-
Temperature resistance: from: -20 °C/-68 °F to: +100 °C/+212 °F
-
Width across flats: 50 mm
-
Gewinde: M 40 x 1,5
-
Dimension H: 7 mm
- 1 unit
2331-0226-40-15
Cable gland with very high strain relief
Connection thread
metric
Thread
M 40 x 1,5
Clamping range
18 mm
Material
Strain relief + gland body: Polyamide PA6 GF30
Pressure ring: Polyethylene PE-LD
O-Ring: SBR/NBR
Screw + nut: Stainless steel
Pressure ring: Polyethylene PE-LD
O-Ring: SBR/NBR
Screw + nut: Stainless steel
Protection type
IP55
2331-0330-40-15
Cable gland IP68
Connection thread
metric
Thread
M 40 x 1,5
Clamping range
19 mm
Material
Cap nut + gland body: Polyamide PA6 V-2
Sealing ring: Polychloroprene-Nitrile rubber CR/NBR
Sealing ring: Polychloroprene-Nitrile rubber CR/NBR
Protection type
IP68
CAD data and other illustrations:
