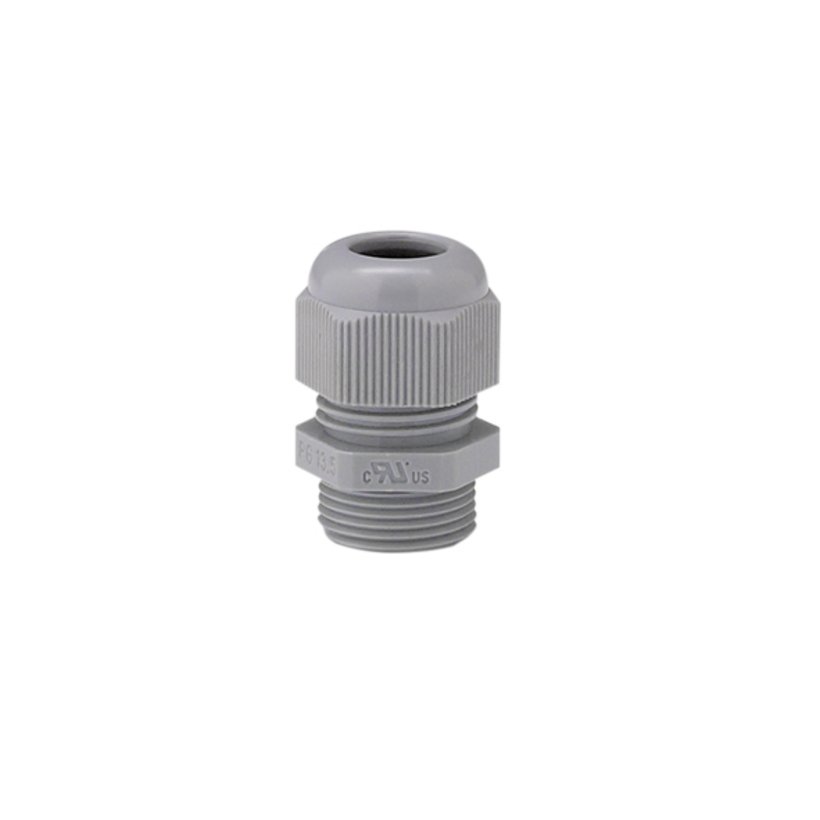

Cable gland IP68

2331-0330-40-15

Cable gland IP68

  • High protection degree of IP68 at 5 bar.

Product description

Wide sealing and clamping range

Integrated strain relief

Technical data

  • Article number: 2331-0330-40-15
  • PRODUKTGRUPPENNAMEEBENE4: Cable glands
  • PRODUKTGRUPPENNAMEEBENE5: Cable gland, plastic
  • Dimension L: 10 mm
  • Protection class: IP68
  • Connection thread: metric
  • Temperature resistance: from: -20 °C/-68 °F to: +100 °C/+212 °F
  • Authorization: UL
  • Length: 51 mm
  • Length: 10 mm
  • Width across flats: 46 mm
  • Gewinde: M 40 x 1,5
  • Clamping range: from : 19 mm
  • Dimension H: 50 mm
  • 1 unit
CAD data and other illustrations:
Cable gland IP68
Cable gland IP68
Wide sealing and clamping range
Integrated strain relief

Remember
metric
M 12 x 1,5
3 mm
IP68
metric
M 16 x 1,5
5 mm
IP68
metric
M 20 x 1,5
8 mm
IP68
metric
M 25 x 1,5
11 mm
IP68
metric
M 32 x 1,5
15 mm
IP68
metric
M 40 x 1,5
19 mm
IP68
PG
PG 7
3 mm
IP68
PG
PG 9
4 mm
IP68
PG
PG 11
5 mm
IP68
PG
PG 13,5
6 mm
IP68
PG
PG 16
10 mm
IP68
PG
PG 21
13 mm
IP68
PG
PG 29
18 mm
IP68
PG
PG 36
22 mm
IP68
PG
PG 42
30 mm
IP68
