2331-0330-12-15

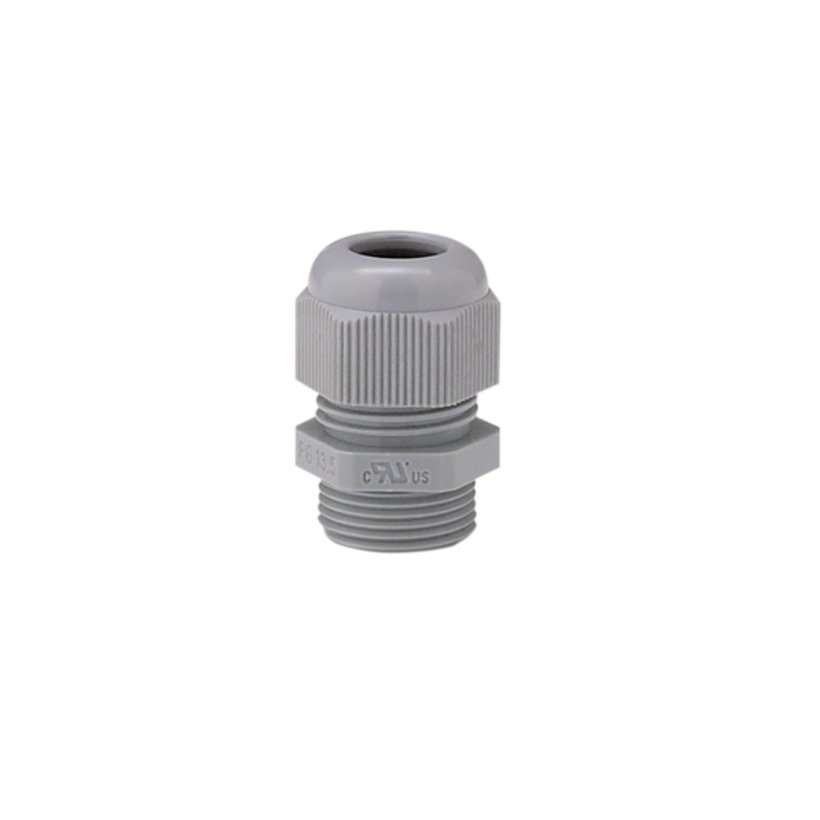

Cable gland IP68
- High protection degree of IP68 at 5 bar.
Product description
Wide sealing and clamping range
Integrated strain relief
Technical data
-
Article number: 2331-0330-12-15
-
Protection class: IP68
-
Material: Cap nut + gland body: Polyamide PA6 V-2
Sealing ring: Polychloroprene-Nitrile rubber CR/NBR -
Connection thread: metric
-
Temperature resistance: from: -20 °C/-68 °F to: +100 °C/+212 °F
-
Authorization: UL
-
Length: 31 mm
-
Thread length L: 8 mm
-
Width across flats: 15 mm
-
Gewinde: M 12 x 1,5
-
Clamping range: from : 3 mm
- 1 unit
3080-0102-25-17
Cable entry plate, plastic
Size
1
Pre-embossing
metric
Material
Cable entry plate: Plastic
Sealing: PU-foam
Sealing: PU-foam
CAD data and other illustrations:
