3070-7322-11-20

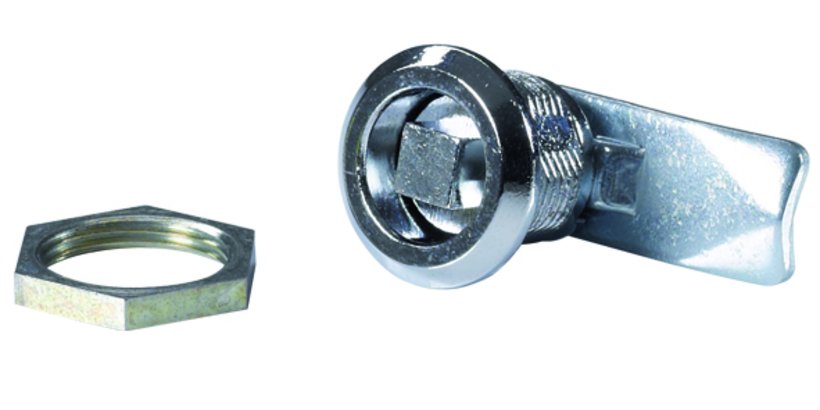

Quarter turn latch lock, small version E1
- For smaller breakout
Product description
Screwable
Applicable as right hand and left hand lock
Mounting possible without disassembly
Completely pre-mounted
Technical data
-
Article number: 3070-7322-11-20
-
Dimension L: 24 mm
-
Material: GDZn
-
Surface: chrome-plated
-
Version: Square 6 mm
-
Dimension b: 19.5 mm
-
Closing distance: 90 °
-
Protection class: IP40
Notice
- Only the square key type 3070-0021-00-00 fits the 6 mm square bolt
- Protection class IP 65 with optional sealing set type 3070-7322-65-00 (see accessories)
- 1 quarter turn latch lock pre-assembled with latch and fixing parts
