3070-7322-19-15

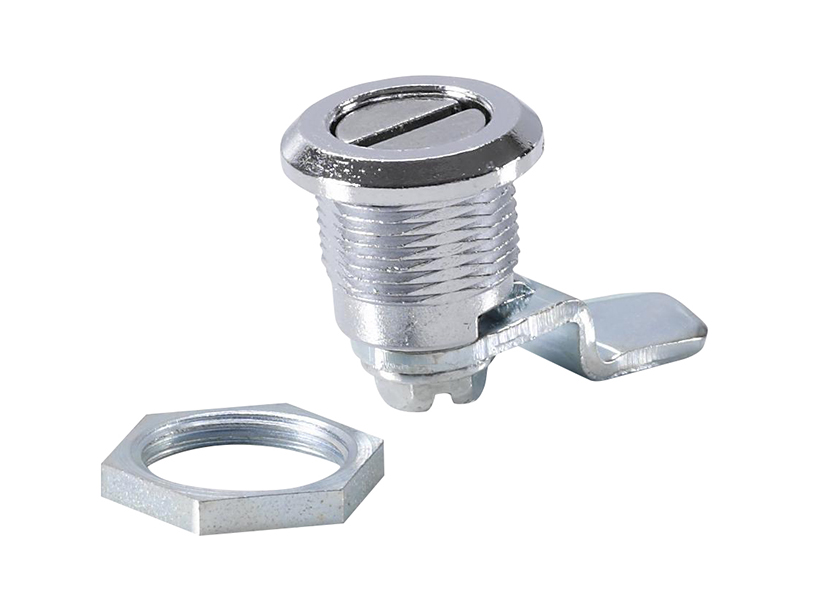

Quarter turn latch lock, small version E1

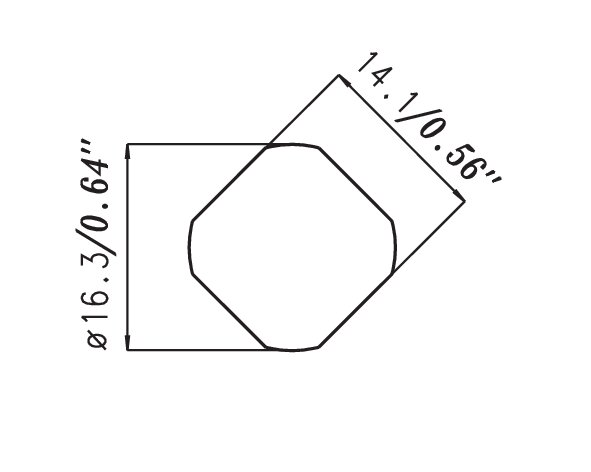

- For smaller breakout
Product description
Screwable
Applicable as right hand and left hand lock
Mounting possible without disassembly
Completely pre-mounted
Technical data
-
Article number: 3070-7322-19-15
-
Dimension L: 24 mm
-
Material: GDZn
-
Surface: chrome-plated
-
Version: Slot
-
Dimension b: 13.5 mm
-
Closing distance: 90 °
-
Protection class: IP40
Notice
- Protection class IP 65 with optional sealing set type 3070-7322-65-00 (see accessories)

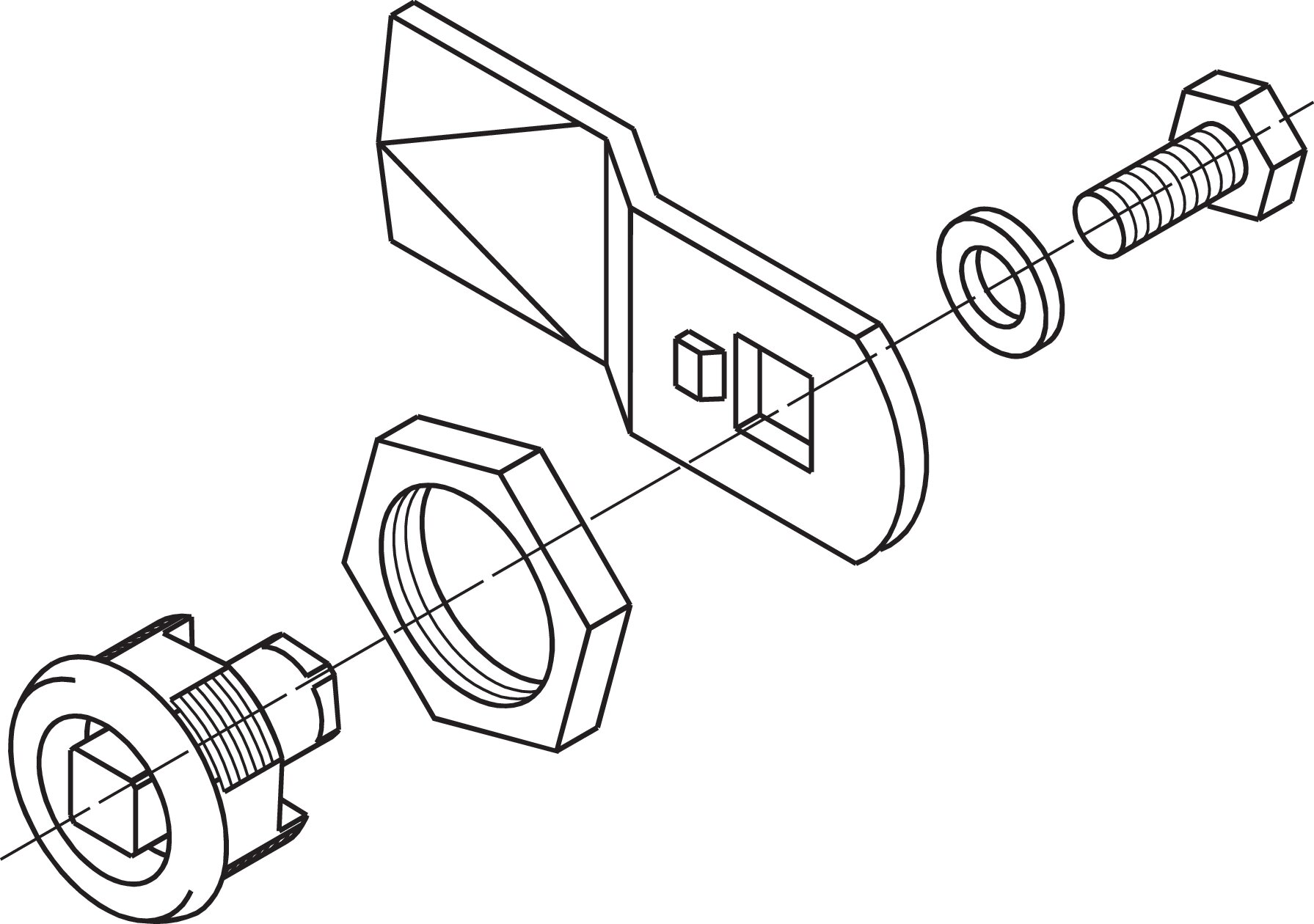

- 1 quarter turn latch lock pre-assembled with latch and fixing parts
