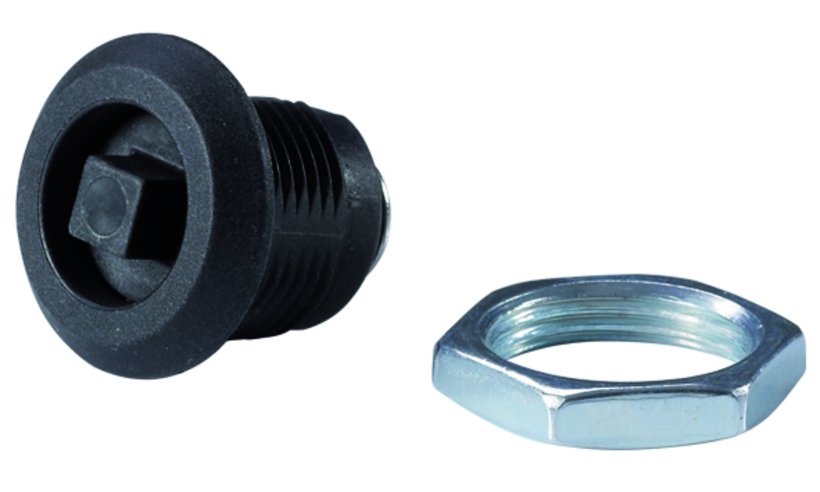

3070-7502-13-03
Quarter turn latch lock insulated
- all-insulated version
Product description
Screwable
Applicable as right hand or left hand lock
Technical Data
-
Order No.: 3070-7502-13-03
-
Material: Polyamide
-
Surface: black
-
Type: Square 8 mm
-
Temperature resistance: -40° - +120°
-
Material and Surface: Housing material chrome-plated zinc die-casting, nut, sheet steel bolt galvanized
-
Closing stroke: 90 °
-
Protection type: IP40, with correctly mounted sealing set IP65
Notice
- Other versions on request
- 1 turning lock with fixing parts but without latch
3070-0304-23-00
Hook latch for quarter turn latch locks
Material
Sheet steel
Surface
Galvanized
Type
Small version
3070-0304-28-00
Hook latch for quarter turn latch locks
Material
Sheet steel
Surface
Galvanized
Type
Big version
