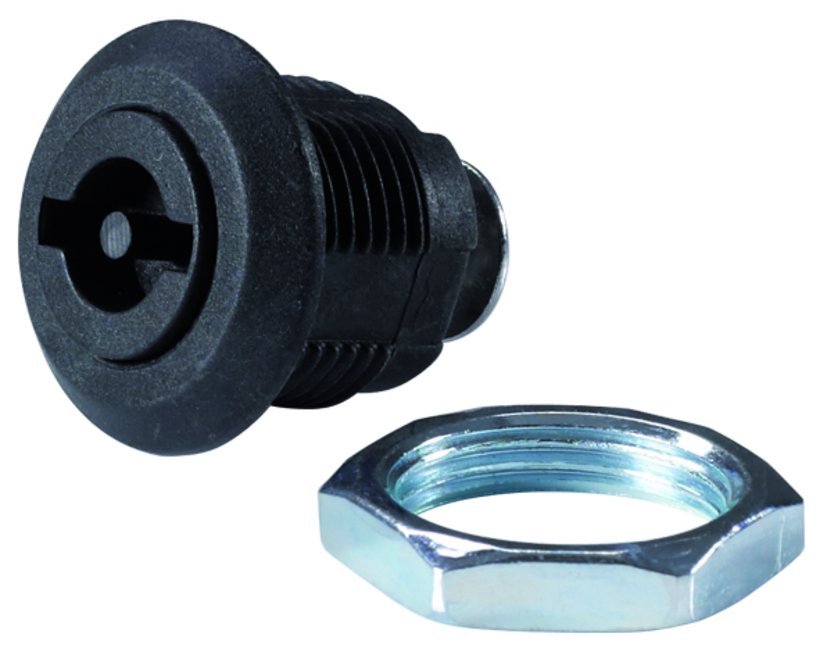

3070-7502-14-03
Quarter turn latch lock insulated
- all-insulated version
Product description
Screwable
Applicable as right hand or left hand lock
Technical data
-
Article number: 3070-7502-14-03
-
Material: Polyamide
-
Surface: black
-
Version: Double bit 3 mm
-
Temperature resistance: -40° - +120°
-
Material and surface: Housing material chrome-plated zinc die-casting, nut, sheet steel bolt galvanized
-
Closing distance: 90 °
-
Protection class: IP40, with correctly mounted sealing set IP65
Notice
- Other versions on request
- 1 turning lock with fixing parts but without latch
3070-0304-23-00
Hook latch for quarter turn latch locks
Material
Sheet steel
Surface
Galvanized
Type
Small version
3070-0304-28-00
Hook latch for quarter turn latch locks
Material
Sheet steel
Surface
Galvanized
Type
Big version

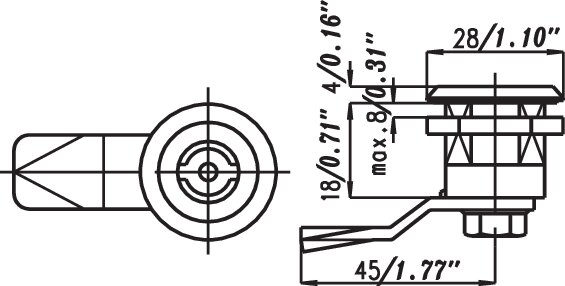

CAD data and other illustrations:
