3080-7220-16-05
Hinge 180°, detachable
- For overlaying and inset doors.
Product description
Fixation on frame connector: for screwing on.
Fixation on door: by splint pin.
Technical data
-
Article number: 3080-7220-16-05
-
Material: Hinge support: Investment casting
Hinge bearing: Stainless steel 1.4305
Pin: Stainless steel 1.4301 -
Surface: Hinge support: Electro-polished
Hinge bearing and pin: Bright -
Version: Stainless steel
-
Gewinde: M6
Notice
- The hinge can be used for different door heights with, fixing threads M5 or M6 and in different material combinations.
- Opening angle depending on type of installation 90° up to max. 180°.

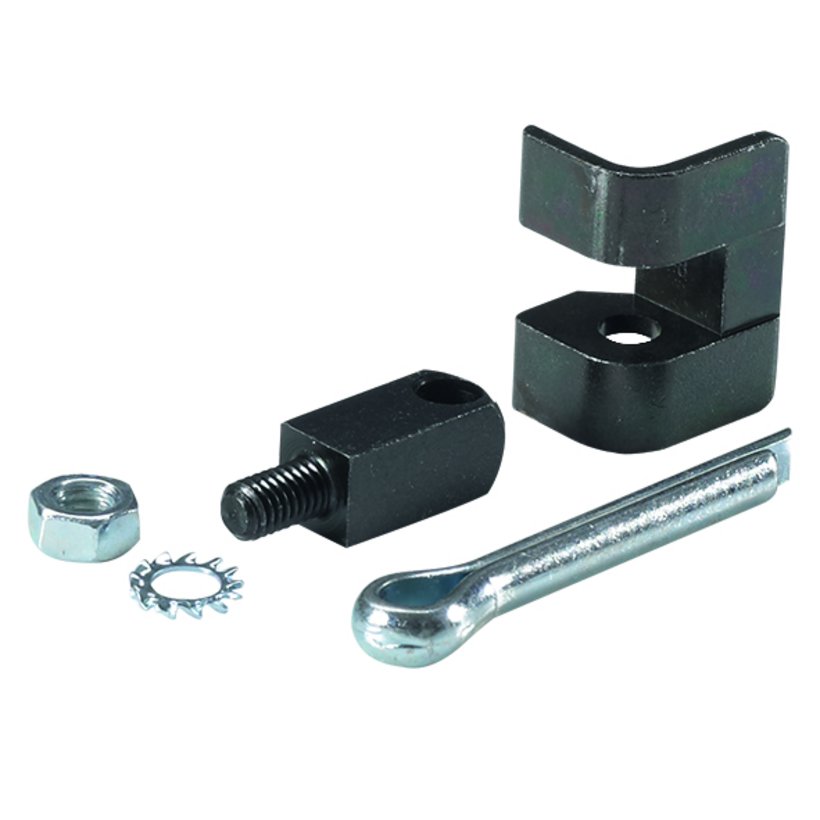

- 1 Hinge complete with suitable serrated lock washer and nut.
CAD data and other illustrations:
