0346-1201-50-17

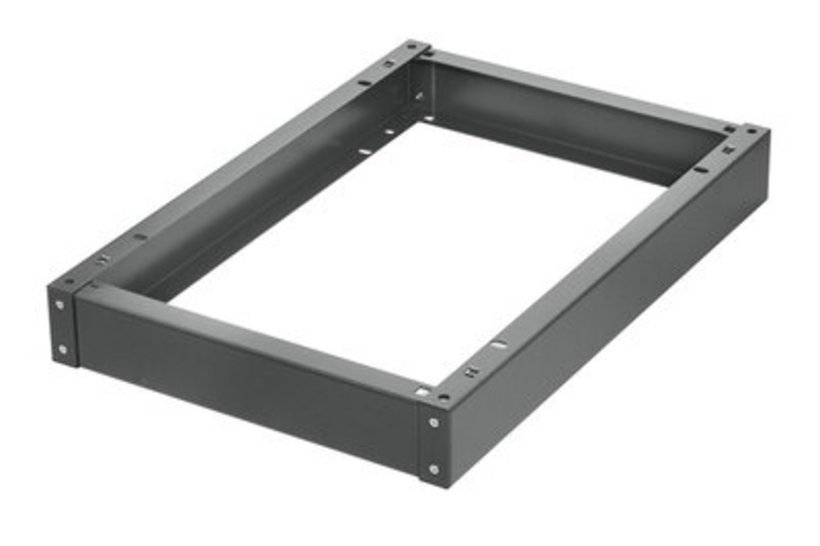

100 mm/3.93” High Base Type 0346 for Consoles
- For individual or modular assembly
- Stable U-profiles
- High load carrying capacity
Product description
Base for mounting under consoles
Technical data
-
Article number: 0346-1201-50-17
-
Dimensions: Width : 1200 mm
-
Surface: Powder coated RAL 7022, texture finish
-
Material: Sheet steel
-
suitable for type: H122
-
Dimension perforation base (s): 435 mm
-
Sheet thickness: 2 mm
-
Base depth (t): 480 mm
Notice
- From W-600 mm / 23.62“ a cable entry plate with brush strip (clearance 270x48 mm / 10.62x1.88“) is available upon request.
- Base, unassembled, with assembly and mounting hardware
0322-1290-65-07
H122 Console
Width
1200 mm
Height
900 mm
Depth
650 mm
Type
without mounting plate
Protection type
IP55
0322-1290-65-17
H122 Console
Width
1200 mm
Height
900 mm
Depth
650 mm
Type
with mounting plate
Protection type
IP55
Mounting instructions:
