0346-5001-40-17

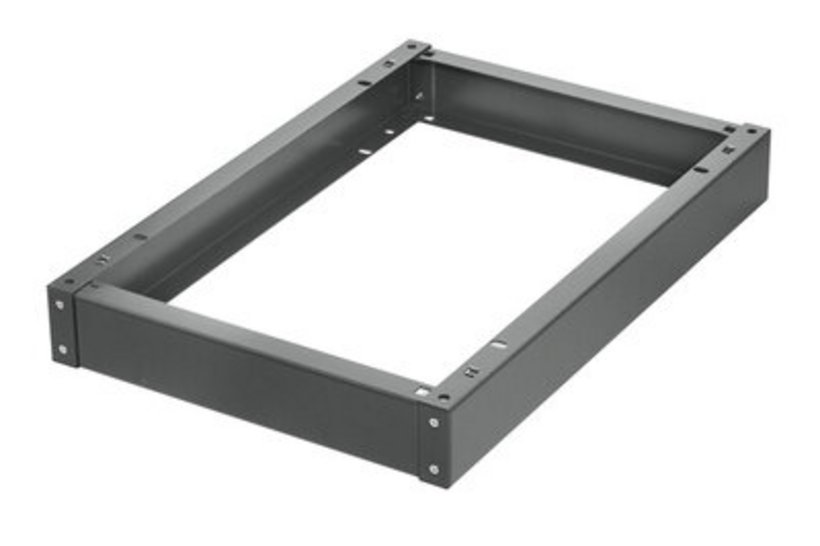

100 mm/3.93” High Base Type 0346 for Consoles
- For individual or modular assembly
- Stable U-profiles
- High load carrying capacity
Product description
Base for mounting under consoles
Technical data
-
Article number: 0346-5001-40-17
-
Dimensions: Width : 500 mm
-
Surface: Powder coated RAL 7022, texture finish
-
Material: Sheet steel
-
suitable for type: H335
-
Dimension perforation base (s): 335 mm
-
Sheet thickness: 2 mm
-
Base depth (t): 380 mm
- Base, unassembled, with assembly and mounting hardware
0335-5010-49-07
H335 Console, sheet steel, 1 door
Width
500 mm
Height
977 mm
Depth
492 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
0335-5010-49-17
H335 Console, sheet steel, 1 door
Width
500 mm
Height
977 mm
Depth
492 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
