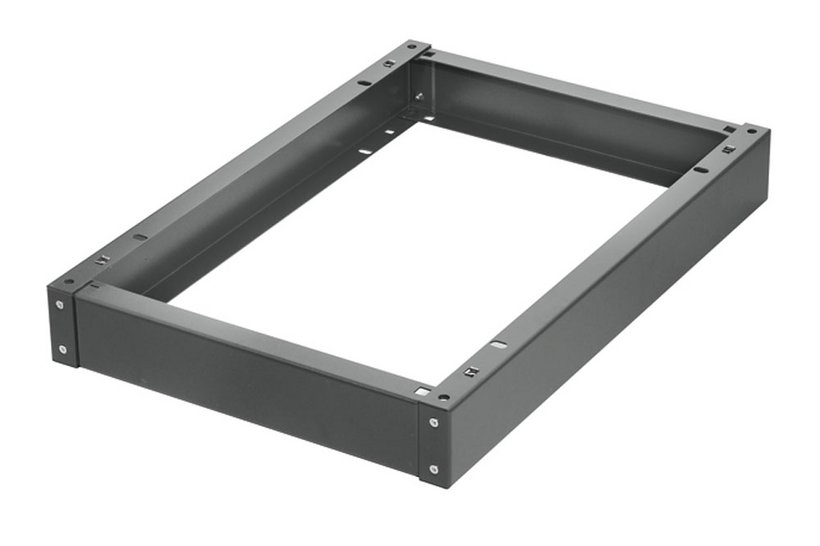

100 mm/3.93” High Base Type 0346 for Consoles

0346-1601-50-17

100 mm/3.93” High Base Type 0346 for Consoles

  • For individual or modular assembly
  • Stable U-profiles
  • High load carrying capacity

Product description

Base for mounting under consoles

Technical data

  • Article number: 0346-1601-50-17
  • Dimensions: Width : 1600 mm
  • Surface: Powder coated RAL 7022, texture finish
  • Material: Sheet steel
  • suitable for type: H122
  • Dimension perforation base (s): 435 mm
  • Sheet thickness: 2 mm
  • Base depth (t): 480 mm

Notice

  • From W-600 mm / 23.62“ a cable entry plate with brush strip (clearance 270x48 mm / 10.62x1.88“) is available upon request.
  • Base, unassembled, with assembly and mounting hardware
H122 Console
0322-1690-65-07
H122 Console
Width
1600 mm
Height
900 mm
Depth
650 mm
Type
without mounting plate
Protection type
IP55
H122 Console
0322-1690-65-17
H122 Console
Width
1600 mm
Height
900 mm
Depth
650 mm
Type
with mounting plate
Protection type
IP55
100 mm/3.93” High Base Type 0346 for Consoles
100 mm/3.93” High Base Type 0346 for Consoles
Base for mounting under consoles

Remember
600 mm
Sheet steel
262 mm
700 mm
Sheet steel
262 mm
800 mm
Sheet steel
262 mm
1000 mm
Sheet steel
262 mm
1200 mm
Sheet steel
262 mm
1600 mm
Sheet steel
262 mm
2000 mm
Sheet steel
262 mm
600 mm
Sheet steel
380 mm
800 mm
Sheet steel
380 mm
1000 mm
Sheet steel
380 mm
1200 mm
Sheet steel
380 mm
500 mm
Sheet steel
380 mm
800 mm
Sheet steel
480 mm
1000 mm
Sheet steel
480 mm
1200 mm
Sheet steel
480 mm
1600 mm
Sheet steel
480 mm
