0396-1002-01-07

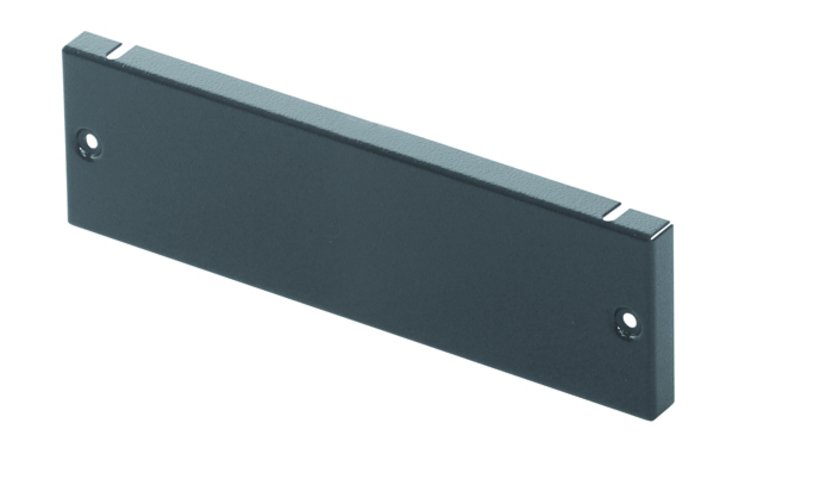

Base cover 100 mm/3.94" high
- For extended application range of 200 mm high bases
- Closed
Product description
Additional option for 200 mm high base covers
Technical data
-
Article number: 0396-1002-01-07
-
Dimensions: suitable for width : 1000 mm
-
Variant: 1000 (2000) mm x X x X / 39.37" (78.74") x X x X
-
Surface: Powder coated RAL 7022, texture finish
-
Material: Sheet steel
-
Sheet thickness: 1.5 mm
Notice
- For W-1600/2000, 2 sets closed base covers are required.
- The bases are provided with attachment screws.
- From W-600mm cable entry with brush strip (clearance 270x48mm) is available upon request.
- 1 set (2 pieces) without mounting hardware
0396.1002.40.17
Bases height 7.87" for cabinets type H390 and H395
Suitable for width
1000 mm
Suitable for depth
400 mm
Material
Sheet steel
Corner section: 2.5 mm
Covers and cross sections: 1.5 mm
Corner section: 2.5 mm
Covers and cross sections: 1.5 mm
Socket size
350 mm
0396.1002.41.17
Base height 7.87" only for cabinets type H390 (flush with rear side)
Suitable for width
1000 mm
Suitable for depth
400 mm
Material
Sheet steel
Socket size
375 mm
0396.1002.50.17
Bases height 7.87" for cabinets type H390 and H395
Suitable for width
1000 mm
Suitable for depth
500 mm
Material
Sheet steel
Corner section: 2.5 mm
Covers and cross sections: 1.5 mm
Corner section: 2.5 mm
Covers and cross sections: 1.5 mm
Socket size
450 mm
0396.1002.51.17
Base height 7.87" only for cabinets type H390 (flush with rear side)
Suitable for width
1000 mm
Suitable for depth
500 mm
Material
Sheet steel
Socket size
475 mm
0396.1002.60.17
Bases height 7.87" for cabinets type H390 and H395
Suitable for width
1000 mm
Suitable for depth
600 mm
Material
Sheet steel
Corner section: 2.5 mm
Covers and cross sections: 1.5 mm
Corner section: 2.5 mm
Covers and cross sections: 1.5 mm
Socket size
550 mm
0396.1002.61.17
Base height 7.87" only for cabinets type H390 (flush with rear side)
Suitable for width
1000 mm
Suitable for depth
600 mm
Material
Sheet steel
Socket size
575 mm
0396.2002.41.17
Base height 7.87" only for cabinets type H390 (flush with rear side)
Suitable for width
2000 mm
Suitable for depth
400 mm
Material
Sheet steel
Socket size
375 mm
0396.2002.51.17
Base height 7.87" only for cabinets type H390 (flush with rear side)
Suitable for width
2000 mm
Suitable for depth
500 mm
Material
Sheet steel
Socket size
475 mm
0396.2002.61.17
Base height 7.87" only for cabinets type H390 (flush with rear side)
Suitable for width
2000 mm
Suitable for depth
600 mm
Material
Sheet steel
Socket size
575 mm
