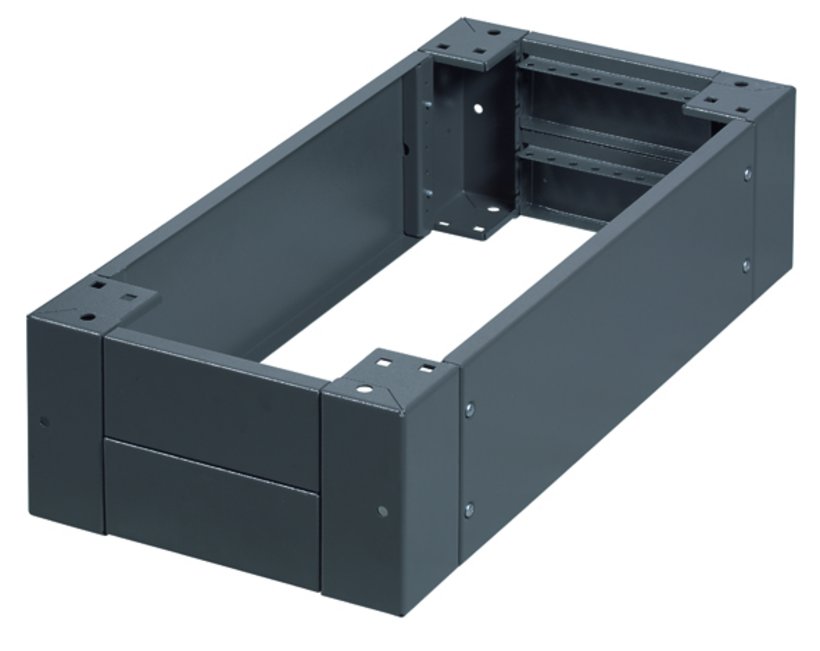

Base height 7.87" only for cabinets type H390 (flush with rear side)
- For free-standing single and ganged-together modular cabinets
- Rugged U-profiles
- High lifting capacity
Product description
Bases for installation under cabinets. Two-level perforation on the inside for mounting of cable support rails. For ganged together cabinets side-pieces can be removed for end-to-end cable installations. Corner pieces are already pre-assembled with front and back pieces. Side pieces can be installed without tools. Front & back pieces are removeable after assembly for easy access to underside of cabinet.
Technical data
-
Article number: 0396.2002.51.17
-
Dimensions: suitable for width : 2000 mm suitable for depth : 500 mm
-
Variant: 78.74" x X x 19.69"
-
Surface: Powder coated RAL 7022, texture finish
-
Material: Sheet steel
-
Base depth (t): 475 mm
Notice
- Optional bolting of the cross sections and use of the second attachment hole in the corner section provide maximum stability during transport.
- For modular base assembly, a lateral base rail is required to mount the cable support rail, from width = 1600 mm / 62.99" we recommend the use of this cable support rail.
- 1600/200 mm / 62.99"/78.74" wide bases are delivered in 2 parcels (1 parcel with covers and corner sections and 1 parcel with cross sections).
- From W-600 mm / 23.62" a cable entry plate with brush strip (clearance 270x48 mm / 10.62x1.88") is available upon request.
- Bases with widths 1600/2000 consist of 2 packets each for corner pieces with front and back plates and the side pieces.
0396-1002-01-07
Base cover 100 mm/3.94" high
Suitable for width
1000 mm
Material
Sheet steel
Sheet metal thickness
1.5 mm
0396-0000-51-07
Base Crossbar
Suitable for depth
500 mm
Material
Sheet steel
Suitable for
Base H-200 mm high
Mounting instructions:
