0396-6010-60-27

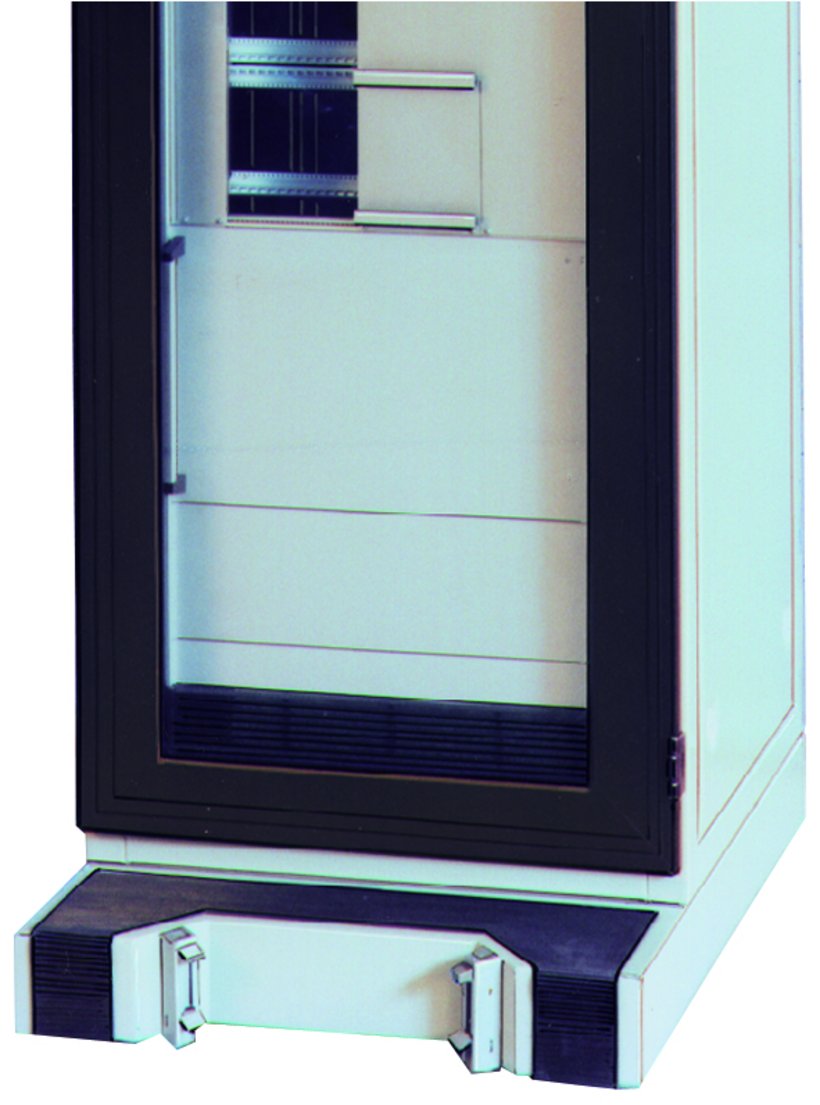

Mobile base
Product description
Suitable for 23.62" wide cabinets, 23.62" and 31.50" depth
Technical Data
-
Order No.: 0396-6010-60-27
-

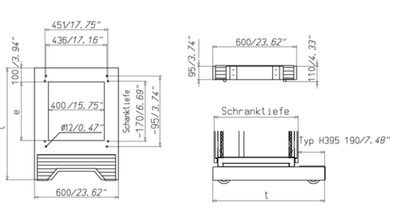

Dimension: Width : 600 mm Height : 110 mm Depth : 600 mm
-
Type: Suitable for cabinet depth 600 mm/23.62"
-
Surface: Powder coating RAL 7035, texture finish
-
Material: Sheet steel
-
Weight: 420 kg
-
Casters: Front swivel casters, rear fixed casters
-
Load capacity: max. 420 kg; 992.25 lbs
-
Sheet thickness: 2 mm/0,08"
Notice
- Mobile base is pre-punched for optional brake assemblies 3080-9108-35-02.
- Mobile base complete with rubber mat and mounted casters
0390-6018-60-07
Free-Standing cabinets Sheet steel H390, single door
Width
600 mm
Height
1800 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0390-6018-60-17
Free-Standing cabinets Sheet steel H390, single door
Width
600 mm
Height
1800 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0390-6020-60-07
Free-Standing cabinets Sheet steel H390, single door
Width
600 mm
Height
2000 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0390-6020-60-17
Free-Standing cabinets Sheet steel H390, single door
Width
600 mm
Height
2000 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-6016-60-07
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
1600 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-6016-60-17
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
1600 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-6018-60-07
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
1800 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-6018-60-17
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
1800 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-6020-60-07
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
2000 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-6020-60-17
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
2000 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-6022-60-07
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
2200 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-6022-60-17
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
2200 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
