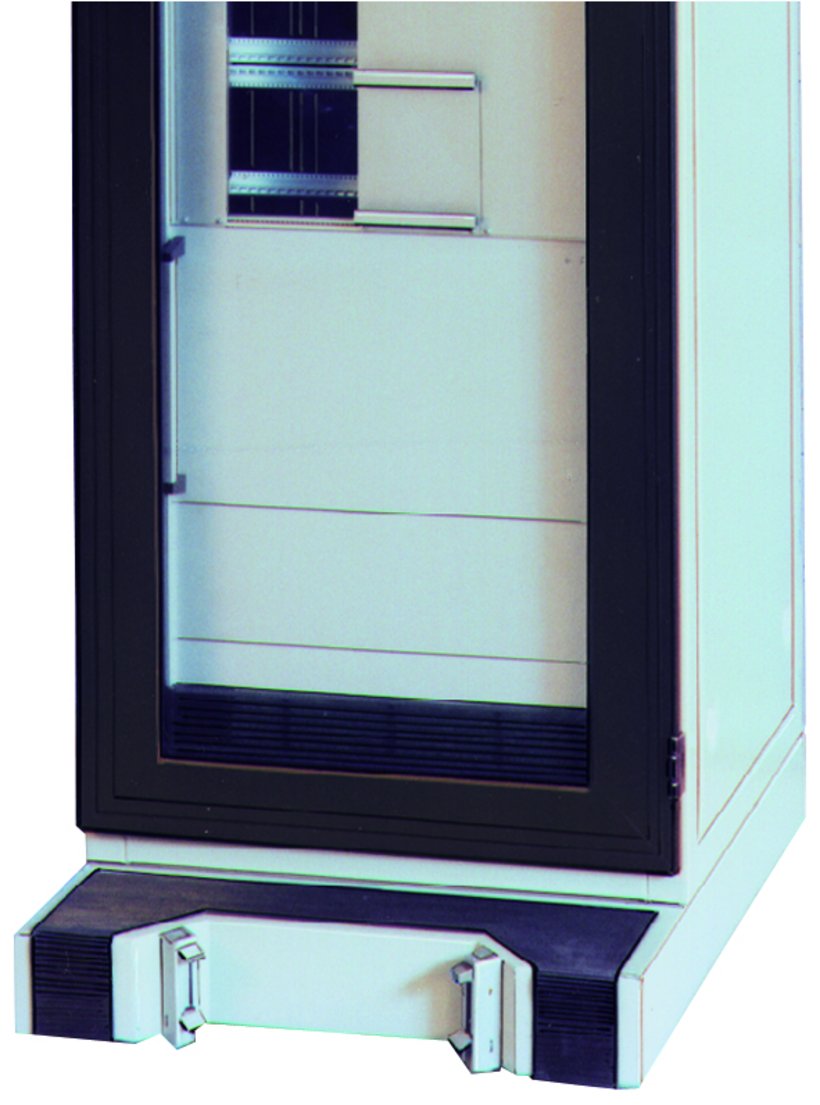

Mobile base

0396-6010-80-27

Mobile base

Product description

Suitable for 23.62" wide cabinets, 23.62" and 31.50" depth

Technical Data

  • Order No.: 0396-6010-80-27
  • Dimension: Width : 600 mm  Height : 110 mm  Depth : 800 mm
  • Type: Suitable for cabinet depth 800 mm/31.5"
  • Surface: Powder coating RAL 7035, texture finish
  • Material: Sheet steel
  • Weight: 420 kg
  • Casters: Front swivel casters, rear fixed casters
  • Load capacity: max. 420 kg; 992.25 lbs
  • Sheet thickness: 2 mm/0,08"

Notice

  • Mobile base is pre-punched for optional brake assemblies 3080-9108-35-02.
  • Mobile base complete with rubber mat and mounted casters
H395 Modular Sheet Steel Cabinet, Front and Rear Door
0395-6018-82-07
H395 Modular Sheet Steel Cabinet, Front and Rear Door
Width
600 mm
Height
1800 mm
Depth
800 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Approval
cULus
H395 Modular Sheet Steel Cabinet, Front and Rear Door
0395-6018-82-17
H395 Modular Sheet Steel Cabinet, Front and Rear Door
Width
600 mm
Height
1800 mm
Depth
800 mm
Type
with mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Approval
cULus
H395 Modular Sheet Steel Cabinet, Front and Rear Door
0395-6020-82-07
H395 Modular Sheet Steel Cabinet, Front and Rear Door
Width
600 mm
Height
2000 mm
Depth
800 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Approval
cULus
H395 Modular Sheet Steel Cabinet, Front and Rear Door
0395-6020-82-17
H395 Modular Sheet Steel Cabinet, Front and Rear Door
Width
600 mm
Height
2000 mm
Depth
800 mm
Type
with mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Approval
cULus
Mobile base
Mobile base
Suitable for 23.62" wide cabinets, 23.62" and 31.50" depth

Order No.
Depth
Casters
Load carrying capacity
notice
600 mm
Front swivel casters, rear fixed casters
