0396.1102.40.17

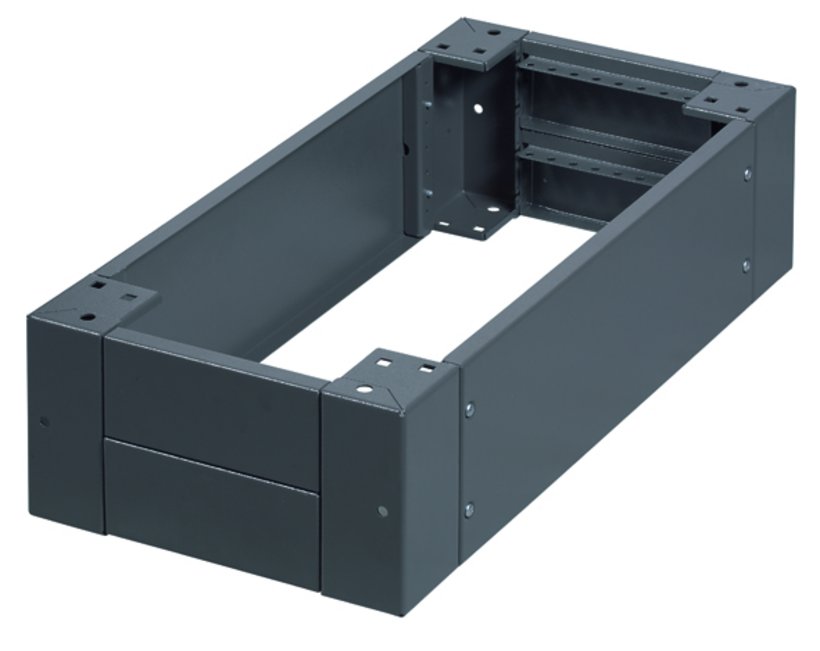

Bases height 7.87" for cabinets type H390 and H395
- Quick and easy installation
- For free-standing single and ganged-together modular cabinets
- High lifting capacity
Product description
Bases for installation under cabinets.
Front & back pieces are removeable after assembly for easy access to underside of cabinet.
Two-level perforation on the inside for mounting of cable support rails. For ganged together cabinets side-pieces can be removed for end-to-end cable installations. Corner pieces are already pre-assembled with front and back pieces. Side pieces can be installed without tools.
Technical data
-
Article number: 0396.1102.40.17
-
Dimensions: suitable for width : 1100 mm suitable for depth : 400 mm
-
Variant: 1100 mm x X x 400 mm
-
Surface: Powder coated RAL 7022, texture finish
-
Material: Sheet steel
Corner section: 2.5 mm
Covers and cross sections: 1.5 mm -
Base depth (t): 350 mm
Notice
- To achieve highest stability for transportation purposes, the side pieces can be screwed in and the corner pieces have a second mounting hole that can be utilized.
- Bases with order numbers ending in “-37” are equipped with air vents for improved air circulation. If used with cabinet H390, an offset of 25 mm will be in the back.
- If bases are ganged together, a base cross rail is required for mounting of cable support rails.
- From W-600mm cable entry with brush strip (clearance 270x48mm) is available upon request.
- Corner pieces with front and back pieces pre-assembled and side pieces (1 packet each). Mounting hardware and installation instructions.
