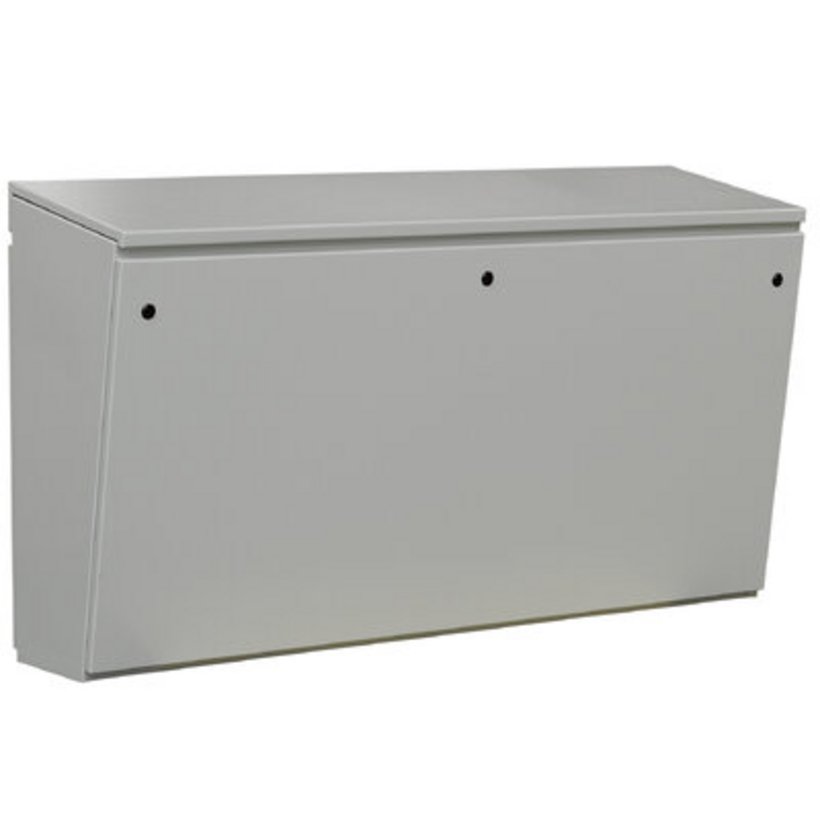

H122 Console

0322-1290-45-07

H122 Console

  • Consoles with or without mounting plate
  • Use as switchboard or control console

Product description

With rear bolted door

Lock: 3 mm double mandrel

Console top: With opening struts on right side (from W=1000 mm / 39.37” on both sides

Mounting plate: Galvanized sheet steel, adjustable to depth (if D=650 mm / 17.72” with 2 mounting plates)

Cable entry plate: Secured from inside

Seal: Foamed-in special gasket

Protective ground connection according to DIN EN 61439-1, connection on console, doors and mounting plate

Bolted doors at front and rear side

Technical data

  • Article number: 0322-1290-45-07
  • Material: Sheet steel
  • Variant: without mounting plate
  • Dimensions: Width : 1200 mm  Height : 900 mm  Depth : 450 mm
  • Sheet thickness: Door: 1,5 mm
    Console plate: 2 mm
  • Surface: Powder coating RAL 7035, texture finish
  • Protection class: IP55
  • Cabinet type: Console systems

Notice

  • Other locking types are available upon request.
  • Stainless steel locks are available upon request.
  • Console complete with cable entry plate and 1 key
CAD data and other illustrations:
Save as PDF Save as PDF Direct request
H122 Console
H122 Console
With rear bolted door
Lock: 3 mm double mandrel
Console top: With opening struts on right side (from W=1000 mm / 39.37” on both sides
Mounting plate: Galvanized sheet steel, adjustable to depth (if D=650 mm / 17.72” with 2 mounting plates)
Cable entry plate: Secured from inside
Seal: Foamed-in special gasket
Protective ground connection according to DIN EN 61439-1, connection on console, doors and mounting plate
Bolted doors at front and rear side
Remember
0322-6090-45-07
600 mm
900 mm
450 mm
without mounting plate
IP55
0322-6090-45-17
600 mm
900 mm
450 mm
with mounting plate
IP55
0322-7090-45-07
700 mm
900 mm
450 mm
without mounting plate
IP55
0322-7090-45-17
700 mm
900 mm
450 mm
with mounting plate
IP55
0322-8090-45-07
800 mm
900 mm
450 mm
without mounting plate
IP55
0322-8090-45-17
800 mm
900 mm
450 mm
with mounting plate
IP55
0322-1090-45-07
1000 mm
900 mm
450 mm
without mounting plate
IP55
0322-1090-45-17
1000 mm
900 mm
450 mm
with mounting plate
IP55
0322-1290-45-07
1200 mm
900 mm
450 mm
without mounting plate
IP55
0322-1290-45-17
1200 mm
900 mm
450 mm
with mounting plate
IP55
0322-1690-45-07
1600 mm
900 mm
450 mm
without mounting plate
IP55
0322-1690-45-17
1600 mm
900 mm
450 mm
with mounting plate
IP55
0322-2090-45-07
2000 mm
900 mm
450 mm
without mounting plate
IP55
0322-2090-45-17
2000 mm
900 mm
450 mm
with mounting plate
IP55
0322-8090-65-07
800 mm
900 mm
650 mm
without mounting plate
IP55
0322-8090-65-17
800 mm
900 mm
650 mm
with mounting plate
IP55
0322-1090-65-07
1000 mm
900 mm
650 mm
without mounting plate
IP55
0322-1090-65-17
1000 mm
900 mm
650 mm
with mounting plate
IP55
0322-1290-65-07
1200 mm
900 mm
650 mm
without mounting plate
IP55
0322-1290-65-17
1200 mm
900 mm
650 mm
with mounting plate
IP55
0322-1690-65-07
1600 mm
900 mm
650 mm
without mounting plate
IP55
0322-1690-65-17
1600 mm
900 mm
650 mm
with mounting plate
IP55
