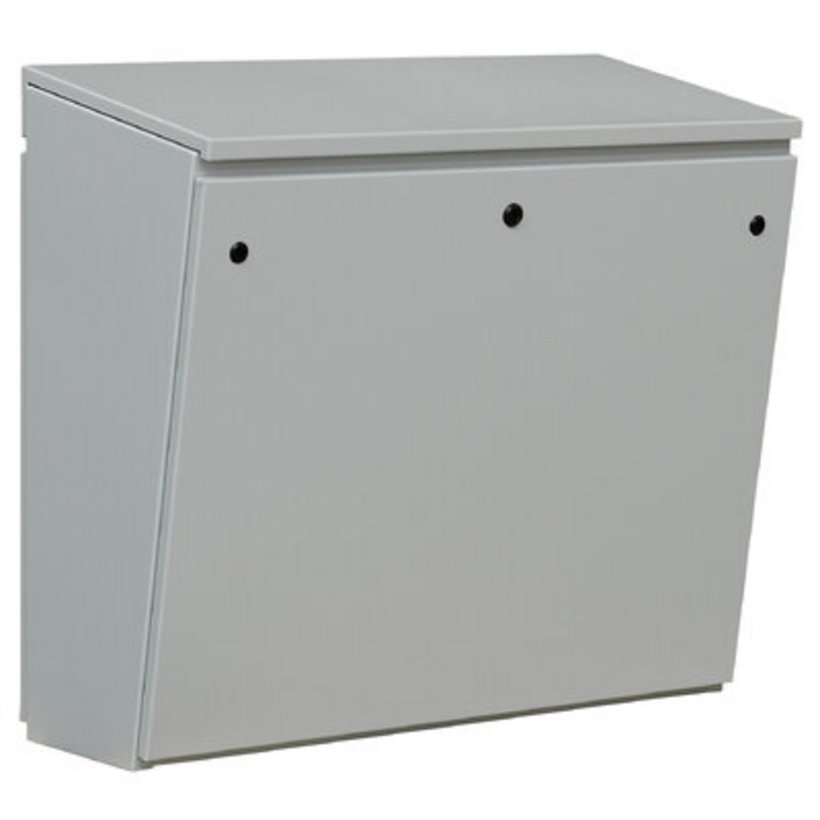

H122 Console
- Consoles with or without mounting plate
- Use as switchboard or control console
Product description
With rear bolted door
Lock: 3 mm double mandrel
Console top: With opening struts on right side (from W=1000 mm / 39.37” on both sides
Mounting plate: Galvanized sheet steel, adjustable to depth (if D=650 mm / 17.72” with 2 mounting plates)
Cable entry plate: Secured from inside
Seal: Foamed-in special gasket
Protective ground connection according to DIN EN 61439-1, connection on console, doors and mounting plate
Bolted doors at front and rear side
Technical data
-
Article number: 0322-8090-45-17
-
Material: Sheet steel
-
Variant: with mounting plate
-
Dimensions: Width : 800 mm Height : 900 mm Depth : 450 mm
-
Weight: 64 kg
-
Sheet thickness: Door: 1,5 mm
Console plate: 2 mm
Moungting panel: 3 mm -
Surface: Powder coating RAL 7035, texture finish
-
Protection class: IP55
-
Cabinet type: Console systems
Notice
- Other locking types are available upon request.
- Stainless steel locks are available upon request.
- Console complete with cable entry plate and 1 key
0346-8001-26-17
100 mm/3.93” High Base Type 0346 for Consoles
Width
800 mm
Material
Sheet steel
Socket size
262 mm
