Hydraulic fittings

Plug-In Coupling

A quick release coupling (female part) is used for quick connection between two hoses or exchange parts.
The connection can be rotated under load.
Including dust protection cap.

Art No.	Product range	Diameter dimensions	Max. sheet metal thickness	Draw stud	Remember
2611-7102-04-00	For workshop equipment	max. 1000 bar	6 l/min	1/4" NPT IG

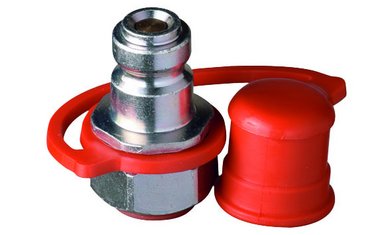

Plug-In Nipple

A plug-in nipple is a part (male) for quick connection between two hoses or exchange parts
The connection can be rotated under load
Including dust protection cap

Art No.	Product range	Max. operating pressure	Flow capacity	Connection thread	Remember
2611-7102-05-00	For workshop equipment	max. 1000 bar	6 l/min	1/4" NPT IG

Screw Coupling 1/4" NPT

This screw coupling is a part (male + female) for quick connection between two hoses or a device
The connection can be rotated under load

Art No.	Product range	Diameter dimensions	Max. sheet metal thickness	Draw stud	Remember
2621-0444-01-00	For workshop equipment	max. 500 bar		Coupling 1/4“ NPT Male Thread, Nippel 1/4“ NPT Female Thread

Reduction Thread 1/4" NPT Male Thread x 3/8" NPT Female Thread

For hydraulic applications

Art No.	Product range	Diameter dimensions	Max. sheet metal thickness	Draw stud	Remember
2684-0514-38-00	For workshop equipment	Screw coupling 3/8"	Angle 1/4" NPT

Screw Coupling 3/8" NPT

This screw coupling is a part (male + female) for quick connection between two hoses or a device
The connection can be rotated under load

Art No.	Product range	Diameter dimensions	Max. sheet metal thickness	Draw stud	Remember
2684-0538-01-00	For workshop equipment	max. 500 bar		Coupling 3/8“ NPT Male Thread, Nipple 3/8“ NPT Female Thread

Reduction Thread 1/4" NPT Female Thread x 3/8" NPT Female Thread

For hydraulic applications

Art No.	Product range	Diameter dimensions	Max. sheet metal thickness	Draw stud	Remember
2661-0538-14-00	For workshop equipment		Screw coupling 3/8"

Reduction Thread 3/8" NPT Male Thread x 1/4" NPT Female Thread

For hydraulic applications

Art No.	Product range	Diameter dimensions	Max. sheet metal thickness	Draw stud	Remember
2684-0538-14-00	For workshop equipment	Angle 1/4" NPT	Screw coupling 3/8"

Reduction Nipple 1/4" NPT Male Thread x 3/8" NPT Male Thread

For hydraulic applications

Art No.	Product range	Diameter dimensions	Max. sheet metal thickness	Draw stud	Remember
2661-0102-05-00	For workshop equipment		Screw coupling 3/8"

Reduction Thread G3/8" Male Thread x G1/4" Female Thread

For hydraulic applications

Art No.	Product range	Diameter dimensions	Max. sheet metal thickness	Draw stud	Remember
2611-7000-08-00	For workshop equipment	G1/4"	G3/8"

Double Nipple 1/4" NPT Male Thread

For hydraulic applications

Art No.	Product range	Diameter dimensions	Max. sheet metal thickness	Draw stud	Remember
2611-0102-04-00	For workshop equipment		2x 1/4“ NPT

Elbow 1/4" NPT Male Thread

For hydraulic applications

Art No.	Product range	Diameter dimensions	Max. sheet metal thickness	Draw stud	Remember
2661-0110-02-00	For workshop equipment		2x 1/4“ NPT
