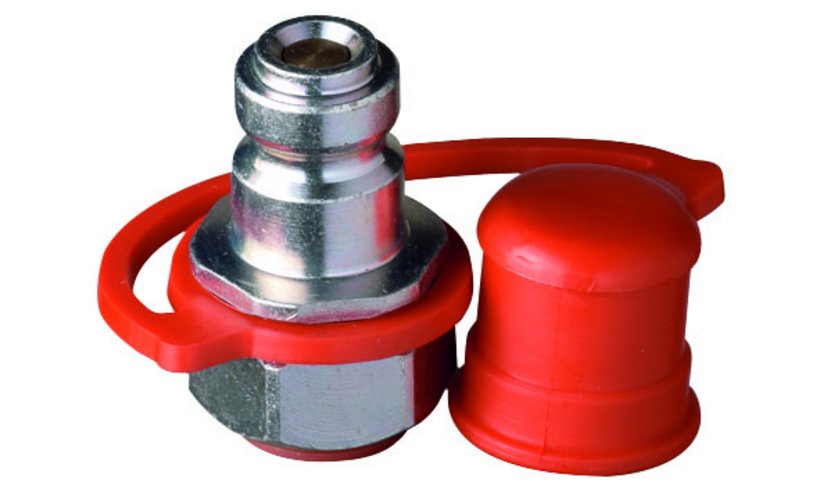

2611-7102-05-00
Plug-In Nipple
- Non-drip connection and disconnection
- Dirt-protected
- Maximum operating pressure up to 1.000 bar
Product description
A plug-in nipple is a part (male) for quick connection between two hoses or exchange parts
The connection can be rotated under load
Including dust protection cap
Technical data
-
Article number: 2611-7102-05-00
-
Product family: For workshop equipment
-
Flow capacity: 6 l/min
-
Connection thread: 1/4" NPT IG
-
Max. operating pressure: 1000 bar
Notice
- Mounted at the hydraulic hose of the häwa punching pumps.
- Matching “counter piece”: coupling 2611-7102-04-00.
- To seal the threaded connection, use the thread sealant type 2600-2005-00-03.
- 1 plug-in nipple with dust protection cap
