2611-7102-04-00

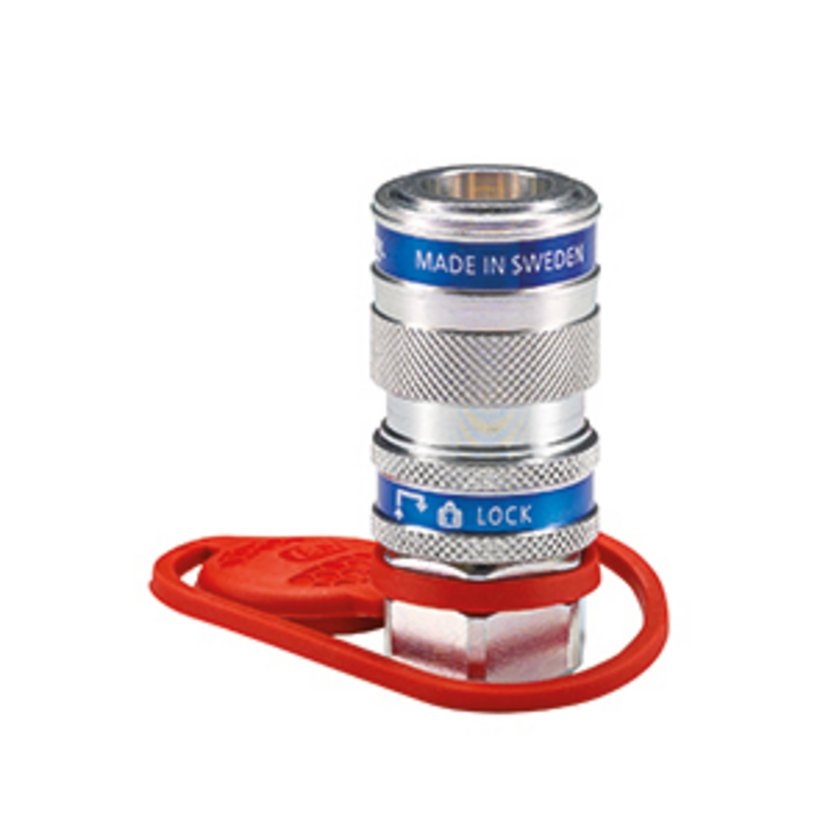

Plug-In Coupling
- Non-drip connection and disconnection
- Dirt-protected
- Maximum operating pressure up to 1.000 bar
Product description
A quick release coupling (female part) is used for quick connection between two hoses or exchange parts.
The connection can be rotated under load.
Including dust protection cap.
Technical data
-
Article number: 2611-7102-04-00
-
Product family: For workshop equipment
-
Flow capacity: 6 l/min
-
Connection thread: 1/4" NPT IG
-
Max. operating pressure: 1000 bar
Notice
- Mounted at the hydraulic hose of the häwa punching pumps.
- Matching “counter piece”: coupling type 2611-7102-05-00.
- To seal the threaded connection, use the thread sealant type 2600-2005-00-03.
- 1 plug-in coupling with dust protection cap
2611-7102-05-00
Plug-In Nipple
Product range
For workshop equipment
Max. operating pressure
max.
1000 bar
Flow capacity
6 l/min
Connection thread
1/4" NPT IG
2600-2005-00-03
Liquid Thread Sealant
Product range
For Mobile Devices and Workshop Equipment
Temperature range from
-
55 °C
Temperature range tor
+
180 °C
Package size
50 ml
2611-0003-03-00
Switch Valve
Product range
For workshop equipment
Operating pressure
max.
500 bar
Connection thread
3x 1/4“ NPT IG
2611-0400-10-00
Hydraulic Hoses 1/4" NPT
Product range
For workshop equipment
Operating pressure
max.
700 bar
Hose length
1000 mm
Connection thread
2x 1/4“ NPT AG
2611-0400-20-00
Hydraulic Hoses 1/4" NPT
Product range
For workshop equipment
Operating pressure
max.
700 bar
Hose length
2000 mm
Connection thread
2x 1/4“ NPT AG
2611-0400-30-00
Hydraulic Hoses 1/4" NPT
Product range
For workshop equipment
Operating pressure
max.
700 bar
Hose length
3000 mm
Connection thread
2x 1/4“ NPT AG
2621-0537-01-01
Hydraulic Hoses 1/4" NPT
Product range
For workshop equipment
Operating pressure
max.
700 bar
Hose length
700 mm
Connection thread
2x 1/4“ NPT AG
2611-7102-05-00
Plug-In Nipple
Product range
For workshop equipment
Max. operating pressure
max.
1000 bar
Flow capacity
6 l/min
Connection thread
1/4" NPT IG
2611-0400-00-00
Electric Hydraulic Pump
Operating pressure
max.
450 bar
Electrical connection
400 V / 50 Hz
Capacity
1.17 l/min
Usable oil capacity
1.5 l
2612-7500-00-00
Air Hydraulic Pump
Operating pressure
max.
500 bar
Air connection
factory-set to min. 6 bar
Flow rate
0.8 l/min
Usable oil capacity
2.1 l
