Round Punch with Two Keyways for Quick-Press 300
Round Punch with Two Keyways for Quick-Press 300
For the use in bow punches Quick-Press 300
For punching 2 opposing keyways WxH 3.3x2.5 mm
For sheet steel and stainless steel sheets
Quick, precise and burr-free punching

Order No.
Product range
Size
Max. sheet metal thickness
Clamping pin
Die - external diameter
notice
For workshop equipment
ø 22,5 mm
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
ø 13 mm/0,51"
1,97 inch

Round Punch with Two Keyways for Quick-Press 400
Round Punch with Two Keyways for Quick-Press 400
For the use in bow punches Quick-Press 400
For punching 2 opposing keyways WxH 3.3x2.5 mm
For sheet steel and stainless steel sheets
Quick, precise and burr-free punching

Order No.
Product range
Size
Max. sheet metal thickness
Clamping pin
Die - external diameter
notice
For workshop equipment
ø 22,5 mm
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
ø 20 mm/0,79"
1,97 inch

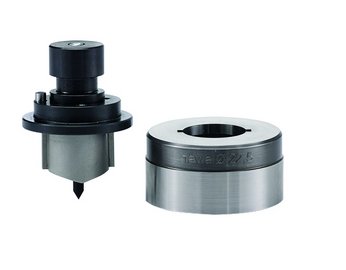

Round Punch with Two Keyways for Maxi-Press 500
Round Punch with Two Keyways for Maxi-Press 500
For the use in bow punches Maxi-Press 500
For punching 2 opposing keyways WxH 3.3x2.5 mm
For sheet steel and stainless steel sheets
Quick, precise and burr-free punching

Order No.
Product range
Size
Max. sheet metal thickness
Clamping pin
Die - external diameter
notice
For workshop equipment
ø 22,5 mm
Steel 2 mm; 14ga / Stainless steel 1,5 mm; 16ga / Aluminum 3 mm; 9 ga
ø 20 mm/0,79"
1,97 inch

Round Punch with 2 Keyways
Round Punch with 2 Keyways
For punching cut-outs in sheet metals with pumps.
Easy alignment owing to the markings at die.
For punching cut-outs with two keyways in one single operation.
Quick, precise and burr-free punching.

Order No.
Product range
Size
Max. sheet metal thickness
Draw stud
notice
for mobile devices
ø 22,5 mm
Steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga
ø 9,5 mm / 3/8"

Formed punch for MinD D-Sub / IEEE
Formed punch for MinD D-Sub / IEEE
For punching cut-outs in sheet metals with pumps.
Easy alignment owing to the markings at die.
Quick, precise and burr-free punching.

notice
for mobile devices
37
11,3 x 58,4 mm; 0.44 x 2.3"
Steel 1,75 mm; 15ga / Stainless steel 1 mm; 20ga / Aluminum 2 mm; 12 ga
ø 9,5 mm / 3/8"
for mobile devices
9
11,3 x 19,8 mm; 0.44 x 0.78"
Steel 1,75 mm; 15ga / Stainless steel 1 mm; 20ga / Aluminum 2 mm; 12 ga
ø 9,5 mm / 3/8"
for mobile devices
50
11,3 x 58,4 mm; 0.44 x 2.3"
Steel 1,75 mm; 15ga / Stainless steel 1 mm; 20ga / Aluminum 2 mm; 12 ga
ø 9,5 mm / 3/8"

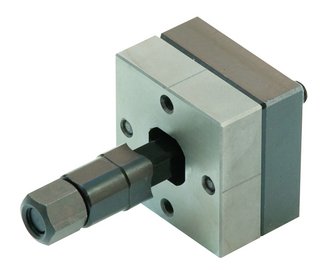

Turn Lock Shaped Punch
Turn Lock Shaped Punch
For punching latch lock and turn lock cut-outs in sheet metals with pumps.
Easy alignment owing to the markings at die.
Quick, precise and burr-free punching.

notice
for mobile devices
20,1 x 22,5 mm; 0.79 x 0.89"
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
ø 9,5 mm / 3/8"
for mobile devices
20,2 x 23,1 mm; 0.8 x 0.91
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
ø 9,5 mm / 3/8"
