2683-0000-00-09
Formed punch for MinD D-Sub / IEEE
- Long lifetime
- Maximum productivity with minimum effort
Product description
For punching cut-outs in sheet metals with pumps.
Easy alignment owing to the markings at die.
Quick, precise and burr-free punching.
Technical data
-
Article number: 2683-0000-00-09
-
Max. Sheet thickness: Steel 1,75 mm; 15ga / Stainless steel 1 mm; 20ga / Aluminum 2 mm; 12 ga
-
Product family: for mobile devices
-
PRODUKTGRUPPENNAMEEBENE6: Other shaped punches
-
Size: 11,3 x 19,8 mm; 0.44 x 0.78"
-
Pre-drilling ø: 11 mm

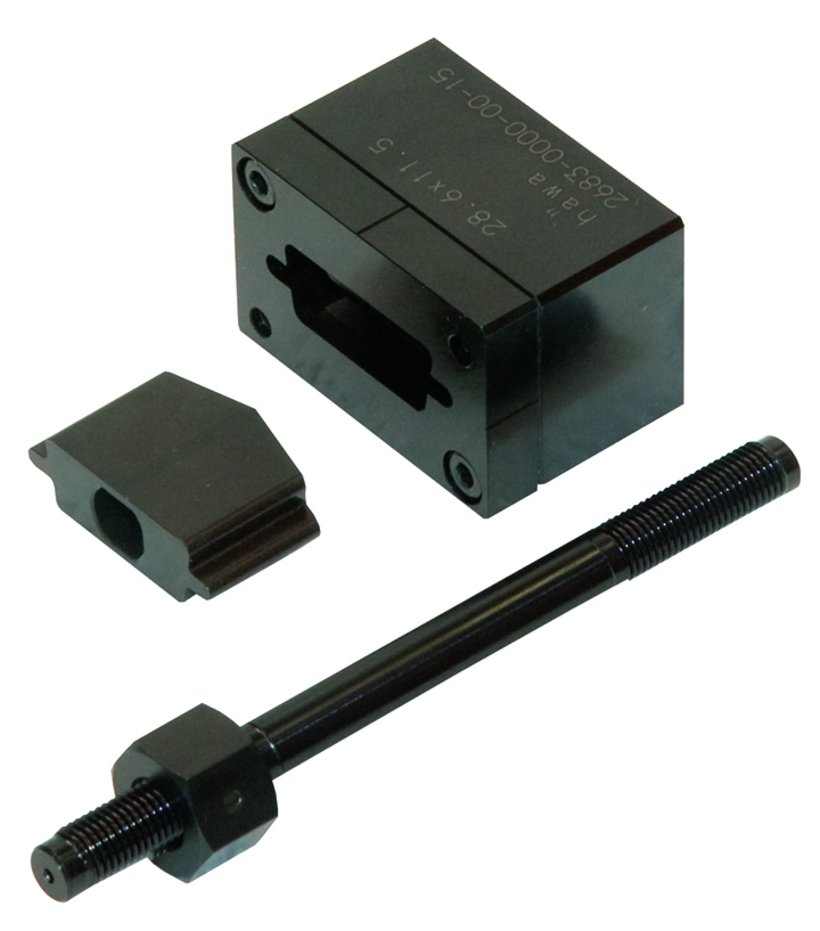

- 1 punch, consisting of punch and die + draw stud with nut
2683-0000-38-38
Draw Studs for Shaped Punches
Product range
for mobile devices
Draw stud
9,5/9,5 mm; 3/8"/3/8"
Screw length
120 mm
Molding
SW 8; WAF 0.31" + 3te Fläche
2683-0000-00-38
Nuts for Shaped Punches
Product range
for mobile devices
Thread
9,5 mm/0,37"
Wrench size nut
17 mm
2611-7600-01-00
Hydraulic Cylinder Power 19
Product range
for mobile devices
Suitable for
Round punches up to ø 135 mm; 5.31“ / square punches 103 mm; 4.06“ / rectangular punches up to a diagonal size of 145 mm; 5.71“
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Screw receptacle
19 mm (3/4”) draw studs
2611-7600-02-00
Hydraulic Cylinder Power 25
Product range
for mobile devices
Suitable for
Round punches up to ø 185 mm; 7.28“ / square punches 140 mm; 5.51“ / rectangular punches up to a diagonal size of 195 mm; 7.68“
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Screw receptacle
Thread M25 x 1,5
2684-7600-01-00
Hydraulic Cylinder 19 (3/4”)
Product range
for mobile devices
Suitable for
round punches up to ø 120 mm; 4.72" / square punches 92 mm; 3.62" / rectangular punches up to 138 mm; 5.43" diagonal
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Screw receptacle
19 mm (3/4”) draw studs
2622-7200-02-00
Powerman Junior
Type
without round punches
Suitable for
round punches up to ø 50.5 mm; 1.99" / square punches up to 25.4 mm; 1" / rectangular punches up to 37.5 mm; 1.48" diagonal
Material thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Punching force
40 kN
2622-7204-02-01
Powerman Junior
Type
with metric round punch kit
Suitable for
round punches up to ø 50.5 mm; 1.99" / square punches up to 25.4 mm; 1" / rectangular punches up to 37.5 mm; 1.48" diagonal
Material thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Punching force
40 kN
2626-7200-01-00
Powerman Vario
Type
without round punches in sheet metal case
Suitable for
round punches up to ø 80 mm; 3.15" / square punches up to 60 mm; 2.36" / rectangular punches up to 85 mm; 3.35" diagonal
Material thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Punching force
50 kN
2626-7206-01-00
Powerman Vario
Type
PG1 with round punches from PG9 to PG21 in plastic case
Suitable for
round punches up to ø 80 mm; 3.15" / square punches up to 60 mm; 2.36" / rectangular punches up to 85 mm; 3.35" diagonal
Material thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Punching force
50 kN
2626-7206-02-00
Powerman Vario
Type
PG2 with round punches from PG9 to PG29 in plastic case
Suitable for
round punches up to ø 80 mm; 3.15" / square punches up to 60 mm; 2.36" / rectangular punches up to 85 mm; 3.35" diagonal
Material thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Punching force
50 kN
2626-7207-01-01
Powerman Vario
Type
with metric round punches from M12 to M50 in plastic case
Suitable for
round punches up to ø 80 mm; 3.15" / square punches up to 60 mm; 2.36" / rectangular punches up to 85 mm; 3.35" diagonal
Material thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Punching force
50 kN
2629-7400-00-00
Powerlec Vario Plus
Suitable for
round punches up to ø 120 mm; 4.72"
Square punches 125 mm; 4.92"
Rectangular punches up to 175 mm; 6.89" diagonal
Square punches 125 mm; 4.92"
Rectangular punches up to 175 mm; 6.89" diagonal
Material thickness
Sheet steel up to 2 mm; 14 ga
Stainless steel up to 1,5 mm; 16 ga
Stainless steel up to 1,5 mm; 16 ga
Pression max
63 kN
Operating voltage
18V
2629-7400-01-00
Powerlec Vario Plus
Suitable for
round punches up to ø 120 mm; 4.72"
Square punches 125 mm; 4.92"
Rectangular punches up to 175 mm; 6.89" diagonal
Square punches 125 mm; 4.92"
Rectangular punches up to 175 mm; 6.89" diagonal
Material thickness
Sheet steel up to 2 mm; 14 ga
Stainless steel up to 1,5 mm; 16 ga
Stainless steel up to 1,5 mm; 16 ga
Pression max
63 kN
Operating voltage
18V
2629-7401-00-00
Powerlec Vario Plus
Type
Fan kit 92
Suitable for
round punches up to ø 120 mm; 4.72"
Square punches 125 mm; 4.92"
Rectangular punches up to 175 mm; 6.89" diagonal
Square punches 125 mm; 4.92"
Rectangular punches up to 175 mm; 6.89" diagonal
Material thickness
Sheet steel up to 2 mm; 14 ga
Stainless steel up to 1,5 mm; 16 ga
Stainless steel up to 1,5 mm; 16 ga
Pression max
63 kN
Operating voltage
18V
2629-7402-00-00
Powerlec Vario Plus
Type
Fan kit 125
Suitable for
round punches up to ø 120 mm; 4.72"
Square punches 125 mm; 4.92"
Rectangular punches up to 175 mm; 6.89" diagonal
Square punches 125 mm; 4.92"
Rectangular punches up to 175 mm; 6.89" diagonal
Material thickness
Sheet steel up to 2 mm; 14 ga
Stainless steel up to 1,5 mm; 16 ga
Stainless steel up to 1,5 mm; 16 ga
Pression max
63 kN
Operating voltage
18V
2684-7100-01-01
Powerman
Suitable for
round punches up to ø 120 mm; 4.72" / square punches 92 mm; 3.62" / rectangular punches up to 138 mm; 5.43" diagonal
Material thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Punching force
65 kN
2685-7200-01-01
Powerman Step
Suitable for
round punches up to ø 120 mm; 4.72" / square punches 92 mm; 3.62" / rectangular punches up to 138 mm; 5.43" diagonal
Material thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Punching force
65 kN
2683-0000-00-38
Nuts for Shaped Punches
Product range
for mobile devices
Thread
9,5 mm/0,37"
Wrench size nut
17 mm
2683-0000-38-38
Draw Studs for Shaped Punches
Product range
for mobile devices
Draw stud
9,5/9,5 mm; 3/8"/3/8"
Screw length
120 mm
Molding
SW 8; WAF 0.31" + 3te Fläche
