2643-0922-52-01

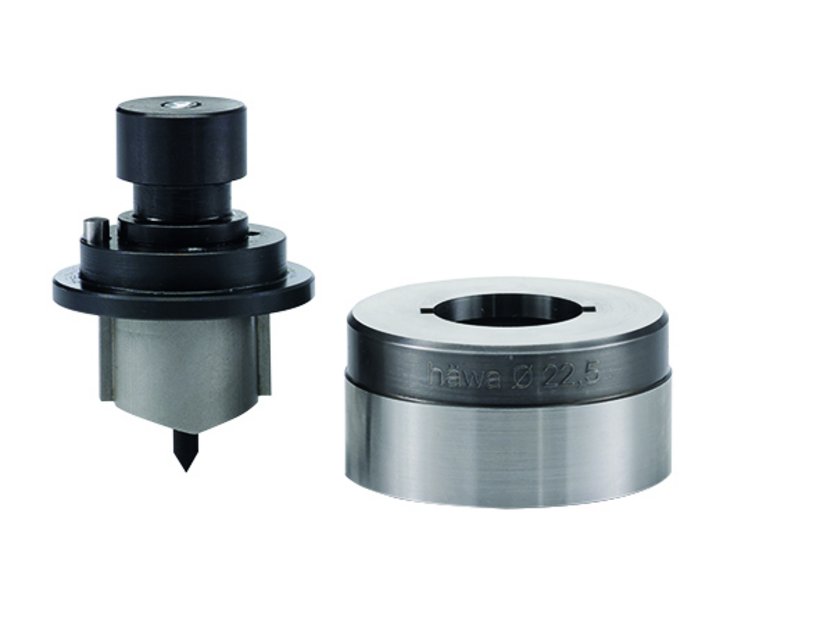

Round Punch with Two Keyways for Maxi-Press 500
- Long lifetime
- Maximum productivity with minimum effort
- For punching grooves for components with anti-rotation protection
- Tool can be rotated by 90°
Product description
For the use in bow punches Maxi-Press 500
For punching 2 opposing keyways WxH 3.3x2.5 mm
For sheet steel and stainless steel sheets
Quick, precise and burr-free punching
Technical data
-
Article number: 2643-0922-52-01
-
Max. Sheet thickness: Steel 2 mm; 14ga / Stainless steel 1,5 mm; 16ga / Aluminum 3 mm; 9 ga
-
Product family: For workshop equipment
-
PRODUKTGRUPPENNAMEEBENE6: Other shaped punches
-
Clamping spigot: ø 20 mm/0,79"
-
Size ø: 22.5 mm
-
Die mounting diameter: 50 mm
Notice
- Before selecting this punch, check if you can mount this die in your bow punch / if you already have the intermediate ring (2643-0250-72-00).
- 1 punch set, consisting of punch and die
2643-0250-72-00
Die Holder ø 50 mm for Maxi-Press 500
Product range
For workshop equipment
Inner diameter
50 mm
Outer diameter
72 mm
2643-7105-00-00
Hydraulic Maxi-Press 500
Suitable for
round punches up to ø 63.5 mm; 2.5" / square punches up to 46 mm; 1.81" / rectangular punches up to 60 mm; 2.36" diagonal
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Processing depth
500 mm
Punch holder (diameter)
20 mm
2643-7106-00-00
Hydraulic Maxi-Press 500 with center point indicator
Suitable for
round punches up to ø 63.5 mm; 2.5" / square punches up to 46 mm; 1.81" / rectangular punches up to 60 mm; 2.36" diagonal
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Processing depth
500 mm
Punch holder (diameter)
20 mm
