2623-0866-60-00

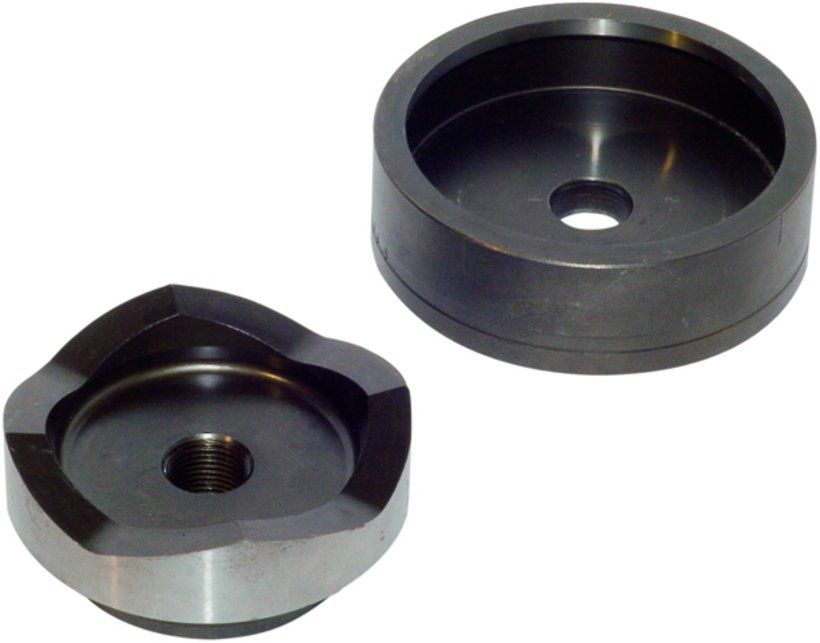

Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
- Long lifetime
- Maximum productivity with minimum effort
- For sheet steel or aluminum sheets
Product description
For punching with "mobile devices".
Low tool wear through optimum cutting geometry.
Easy removal of the deformed waste piece.
Quick, precise and burr-free punching.
Technical data
-
Article number: 2623-0866-60-00
-
Max. Sheet thickness: Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga -
Product family: for mobile devices
-
PRODUKTGRUPPENNAMEEBENE6: Round punches (mobile devices)
-
Actuating thread: Ø 19 mm / 3/4"
-
Pre-drilling ø: 20 mm
-
Size ø: 66.6 mm
Notice
- You need a häwa punching pump or a häwa hydraulic cylinder. If this hole tool is compatible with your häwa punching unit, please refer to the "Tool hint - Hole punch for mobile devices" under "Downloads".
- The max. sheet metal thickness to be punched is also dependent on the punching device.
- 1 round punch, consisting of punch and die
2611-7600-01-00
Hydraulic Cylinder Power 19
Product range
for mobile devices
Suitable for
Round punches up to ø 135 mm; 5.31“ / square punches 103 mm; 4.06“ / rectangular punches up to a diagonal size of 145 mm; 5.71“
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Screw receptacle
19 mm (3/4”) draw studs
2611-7600-02-00
Hydraulic Cylinder Power 25
Product range
for mobile devices
Suitable for
Round punches up to ø 185 mm; 7.28“ / square punches 140 mm; 5.51“ / rectangular punches up to a diagonal size of 195 mm; 7.68“
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Screw receptacle
Thread M25 x 1,5
2684-7600-01-00
Hydraulic Cylinder 19 (3/4”)
Product range
for mobile devices
Suitable for
round punches up to ø 120 mm; 4.72" / square punches 92 mm; 3.62" / rectangular punches up to 138 mm; 5.43" diagonal
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Screw receptacle
19 mm (3/4”) draw studs
2683-1719-75-00
Draw Stud for Manual Operation
Type
with ball bearing
Size
19 x 75 mm
Wrench Size
27 mm
2626-7200-01-00
Powerman Vario
Type
without round punches in sheet metal case
Suitable for
round punches up to ø 80 mm; 3.15" / square punches up to 60 mm; 2.36" / rectangular punches up to 85 mm; 3.35" diagonal
Material thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Punching force
50 kN
2626-7206-01-00
Powerman Vario
Type
PG1 with round punches from PG9 to PG21 in plastic case
Suitable for
round punches up to ø 80 mm; 3.15" / square punches up to 60 mm; 2.36" / rectangular punches up to 85 mm; 3.35" diagonal
Material thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Punching force
50 kN
2626-7206-02-00
Powerman Vario
Type
PG2 with round punches from PG9 to PG29 in plastic case
Suitable for
round punches up to ø 80 mm; 3.15" / square punches up to 60 mm; 2.36" / rectangular punches up to 85 mm; 3.35" diagonal
Material thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Punching force
50 kN
2626-7207-01-01
Powerman Vario
Type
with metric round punches from M12 to M50 in plastic case
Suitable for
round punches up to ø 80 mm; 3.15" / square punches up to 60 mm; 2.36" / rectangular punches up to 85 mm; 3.35" diagonal
Material thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Punching force
50 kN
2629-7400-00-00
Powerlec Vario Plus
Suitable for
round punches up to ø 120 mm; 4.72"
Square punches 125 mm; 4.92"
Rectangular punches up to 175 mm; 6.89" diagonal
Square punches 125 mm; 4.92"
Rectangular punches up to 175 mm; 6.89" diagonal
Material thickness
Sheet steel up to 2 mm; 14 ga
Stainless steel up to 1,5 mm; 16 ga
Stainless steel up to 1,5 mm; 16 ga
Pression max
63 kN
Operating voltage
18V
2629-7400-01-00
Powerlec Vario Plus
Suitable for
round punches up to ø 120 mm; 4.72"
Square punches 125 mm; 4.92"
Rectangular punches up to 175 mm; 6.89" diagonal
Square punches 125 mm; 4.92"
Rectangular punches up to 175 mm; 6.89" diagonal
Material thickness
Sheet steel up to 2 mm; 14 ga
Stainless steel up to 1,5 mm; 16 ga
Stainless steel up to 1,5 mm; 16 ga
Pression max
63 kN
Operating voltage
18V
2629-7401-00-00
Powerlec Vario Plus
Type
Fan kit 92
Suitable for
round punches up to ø 120 mm; 4.72"
Square punches 125 mm; 4.92"
Rectangular punches up to 175 mm; 6.89" diagonal
Square punches 125 mm; 4.92"
Rectangular punches up to 175 mm; 6.89" diagonal
Material thickness
Sheet steel up to 2 mm; 14 ga
Stainless steel up to 1,5 mm; 16 ga
Stainless steel up to 1,5 mm; 16 ga
Pression max
63 kN
Operating voltage
18V
2629-7402-00-00
Powerlec Vario Plus
Type
Fan kit 125
Suitable for
round punches up to ø 120 mm; 4.72"
Square punches 125 mm; 4.92"
Rectangular punches up to 175 mm; 6.89" diagonal
Square punches 125 mm; 4.92"
Rectangular punches up to 175 mm; 6.89" diagonal
Material thickness
Sheet steel up to 2 mm; 14 ga
Stainless steel up to 1,5 mm; 16 ga
Stainless steel up to 1,5 mm; 16 ga
Pression max
63 kN
Operating voltage
18V
2684-7100-01-01
Powerman
Suitable for
round punches up to ø 120 mm; 4.72" / square punches 92 mm; 3.62" / rectangular punches up to 138 mm; 5.43" diagonal
Material thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Punching force
65 kN
2685-7200-01-01
Powerman Step
Suitable for
round punches up to ø 120 mm; 4.72" / square punches 92 mm; 3.62" / rectangular punches up to 138 mm; 5.43" diagonal
Material thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Punching force
65 kN
