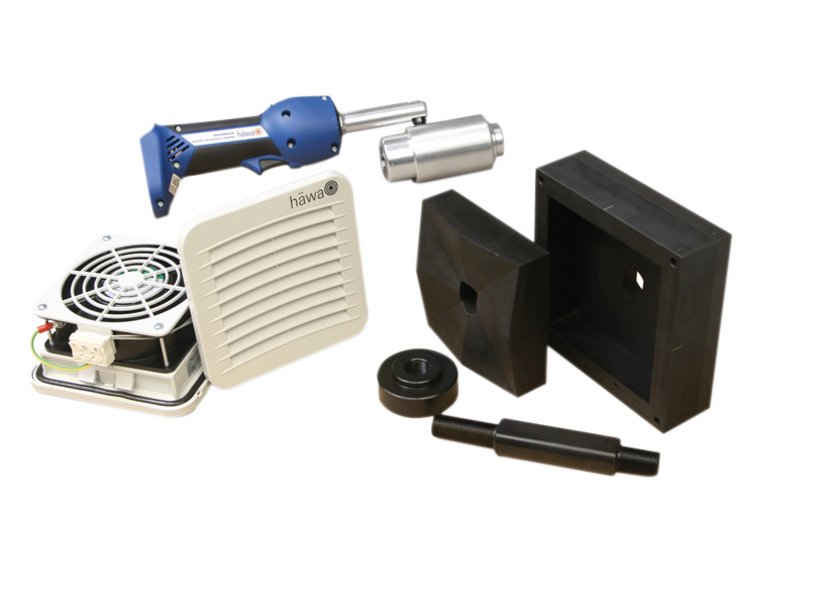

Powerlec Vario Plus

2629-7402-00-00

Powerlec Vario Plus

  • One-man operation
  • For applications in confined spaces max. punching: ø 120 mm; 4.72“
  • Automatic stop after the material is punched

Product description

Battery-operated hydraulic pump

Pump threaded for 19 mm / 3/4“ draw stud

360° rotatable cylinder, can also be operated under load

Li-Ion battery (not included in the scope of delivery)

For punching sheet steel and stainless steel

Available draw studs for: punches threaded for 9.5 mm; 3/8“, 11.1 mm; 7/16“ and 19 mm; 3/4“

Technical data

  • Article number: 2629-7402-00-00
  • EINSATZBEREICH: Punching of cut-outs
  • Material: Sheet steel, stainless steel
  • Variant: Fan kit 125
  • Can be used for: round punches up to ø 120 mm; 4.72"
    Square punches 125 mm; 4.92"
    Rectangular punches up to 175 mm; 6.89" diagonal
  • MATERIALSTAERKE_DICT: Sheet steel up to 2 mm; 14 ga
    Stainless steel up to 1,5 mm; 16 ga
  • ax. punching forcet: 63 kN
  • Cylinder stroke: 26 mm
  • Screw holder: 19 mm (3/4”) draw studs
  • Punch pump dimension: ø 75x120x330 mm; ø 2.95"x4.72"x12.99"
  • Operating voltage: 18V
  • Weight: 2 kg
  • Sound pressure: 70.6 dB(A)

Notice

  • Recommended accessories: Battery type 2629-0000-60-00 + charger type 2629-0000-61-00.
  • If punching tools (round, rectangular, square, shaped punches) should be used for applications exceeding the technical specifications (" Suitable for" and "Max. sheet metal thickness" → see "Technical Data"), an individual clarification is required. Please contact your local sales department.
  • Hydraulic pump
  • 2 draw studs (stud with 2 x ø 9.5 mm; 3/8“ thread and stud with 2x 19 mm; 3/4“ thread)
  • Reduction sleeve
  • Washer
  • Step drill
  • Drilling paste
  • Plastic box
  • Square punch 125 mm / 4.92“ for punching sheet steel and stainless steel FixCool filter fan for cut-out 125x125 mm / 4.92 x 4.92”
  • FixCool exhaust filter for cut-out 125x125 mm / 4.92 x 4.92”
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
2623-0832-21-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Diameter dimensions
32.2 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
2623-0833-30-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Diameter dimensions
33.3 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
2623-0835-01-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Diameter dimensions
35 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
2623-0838-11-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Diameter dimensions
38.1 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0828-30-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Diameter dimensions
28.3 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0830-50-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Diameter dimensions
30.5 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0832-00-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Diameter dimensions
32 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0832-20-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Diameter dimensions
32.2 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0834-10-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Diameter dimensions
34.1 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0835-00-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Diameter dimensions
35 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0837-00-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Diameter dimensions
37 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0838-00-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Diameter dimensions
38 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0840-20-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Diameter dimensions
40.2 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0841-20-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Diameter dimensions
41.2 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0843-30-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Diameter dimensions
43.3 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0845-50-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Diameter dimensions
45.5 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0847-00-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Diameter dimensions
47 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0850-20-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Diameter dimensions
50.2 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0854-00-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Diameter dimensions
54 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0856-50-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Diameter dimensions
56.5 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0860-00-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Diameter dimensions
60 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0863-20-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Diameter dimensions
63.2 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0864-40-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Diameter dimensions
64.4 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0866-60-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Diameter dimensions
66.6 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0870-00-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Diameter dimensions
70 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0875-20-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Diameter dimensions
75.2 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0876-20-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Diameter dimensions
76.2 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0880-00-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Diameter dimensions
80 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0882-00-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Diameter dimensions
82 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0888-50-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Diameter dimensions
88.5 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0892-00-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Diameter dimensions
92 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1 mm; 20 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0810-20-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Diameter dimensions
102 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1 mm; 20 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0811-43-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Diameter dimensions
114.3 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1 mm; 20 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0812-01-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Diameter dimensions
120 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1 mm; 20 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Plus Threaded for ø 9.5 mm (3/8”) Draws Studs
2682-0815-20-25
Round Punch Plus Threaded for ø 9.5 mm (3/8”) Draws Studs
Product range
for mobile devices
Diameter dimensions
15.2 mm
Max. sheet metal thickness
Stainless steel 1,5 mm; 16 ga
further information
Round Punch Plus Threaded for ø 9.5 mm (3/8”) Draws Studs
2682-0816-20-25
Round Punch Plus Threaded for ø 9.5 mm (3/8”) Draws Studs
Product range
for mobile devices
Diameter dimensions
16.2 mm
Max. sheet metal thickness
Stainless steel 2 mm; 14 ga
further information
Round Punch Plus Threaded for ø 11.1 mm Draw Studs
2682-0818-60-25
Round Punch Plus Threaded for ø 11.1 mm Draw Studs
Product range
for mobile devices
Diameter dimensions
18.6 mm
Max. sheet metal thickness
Stainless steel 2 mm; 14 ga
further information
Round Punch Plus Threaded for ø 11.1 mm Draw Studs
2682-0820-20-25
Round Punch Plus Threaded for ø 11.1 mm Draw Studs
Product range
for mobile devices
Diameter dimensions
20.2 mm
Max. sheet metal thickness
Stainless steel 2 mm; 14 ga
further information
Round Punch Plus Threaded for ø 11.1 mm Draw Studs
2682-0820-40-25
Round Punch Plus Threaded for ø 11.1 mm Draw Studs
Product range
for mobile devices
Diameter dimensions
20.4 mm
Max. sheet metal thickness
Stainless steel 2 mm; 14 ga
further information
Round Punch Plus Threaded for ø 11.1 mm Draw Studs
2682-0822-50-25
Round Punch Plus Threaded for ø 11.1 mm Draw Studs
Product range
for mobile devices
Diameter dimensions
22.5 mm
Max. sheet metal thickness
Stainless steel 2 mm; 14 ga
further information
Round Punch Plus Threaded for ø 11.1 mm Draw Studs
2682-0825-20-25
Round Punch Plus Threaded for ø 11.1 mm Draw Studs
Product range
for mobile devices
Diameter dimensions
25.2 mm
Max. sheet metal thickness
Stainless steel 2 mm; 14 ga
further information
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
2682-0828-50-25
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Diameter dimensions
28.5 mm
Max. sheet metal thickness
Stainless steel 2 mm; 14 ga
further information
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
2682-0830-50-25
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Diameter dimensions
30.5 mm
Max. sheet metal thickness
Stainless steel 2,5 mm; 13 ga
further information
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
2682-0832-20-25
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Diameter dimensions
32.2 mm
Max. sheet metal thickness
Stainless steel 2,5 mm; 13 ga
further information
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
2682-0837-00-25
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Diameter dimensions
37 mm
Max. sheet metal thickness
Stainless steel 2,5 mm; 13 ga
further information
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
2682-0840-20-25
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Diameter dimensions
40.2 mm
Max. sheet metal thickness
Stainless steel 2,5 mm; 13 ga
further information
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
2682-0847-00-25
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Diameter dimensions
47 mm
Max. sheet metal thickness
Stainless steel 2,5 mm; 13 ga
further information
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
2682-0850-20-25
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Diameter dimensions
50.2 mm
Max. sheet metal thickness
Stainless steel 2,5 mm; 13 ga
further information
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
2682-0854-00-25
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Diameter dimensions
54 mm
Max. sheet metal thickness
Stainless steel 2,5 mm; 13 ga
further information
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
2682-0860-00-25
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Diameter dimensions
60 mm
Max. sheet metal thickness
Stainless steel 2,5 mm; 13 ga
further information
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
2682-0863-20-25
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Diameter dimensions
63.2 mm
Max. sheet metal thickness
Stainless steel 2,5 mm; 13 ga
further information
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
2623-0812-20-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Diameter dimensions
12.2 mm
Max. sheet metal thickness
Steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
2623-0812-70-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Diameter dimensions
12.7 mm
Max. sheet metal thickness
Steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
2623-0814-00-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Diameter dimensions
14 mm
Max. sheet metal thickness
Steel 1,5 mm; 16 ga
Stainless steel 1 mm; 20 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
2623-0815-20-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Diameter dimensions
15.2 mm
Max. sheet metal thickness
Steel 1,5 mm; 16 ga
Stainless steel 1 mm; 20 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
2623-0816-20-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Diameter dimensions
16.2 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
2623-0817-30-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Diameter dimensions
17.3 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
2623-0818-60-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Diameter dimensions
18.6 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
2623-0819-00-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Diameter dimensions
19 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
2623-0820-20-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Diameter dimensions
20.2 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
2623-0820-40-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Diameter dimensions
20.4 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
2623-0821-30-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Diameter dimensions
21.3 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
2623-0822-50-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Diameter dimensions
22.5 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
2623-0823-80-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Diameter dimensions
23.8 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
2623-0824-50-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Diameter dimensions
24.5 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
2623-0825-20-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Diameter dimensions
25.2 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
2623-0827-00-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Diameter dimensions
27 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
2623-0828-50-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Diameter dimensions
28.5 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
2623-0830-51-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Diameter dimensions
30.5 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Round Punch Plus Kit, Metric from M16 to M50
2682-7816-50-26
Round Punch Plus Kit, Metric from M16 to M50
Product range
for mobile devices
Size
metric round punch in mm: ø 16.2; ø 20.2; ø 25.2; ø 32.2; ø 40.2; ø 50.2
Max. sheet metal thickness
Stainless steel 2,5 mm; 13 ga
Draw stud
ø 9,5 mm; 3/8" / ø 11,1 mm; 7/16" / ø 19 mm; 3/4"
further information
Round Punch Kit, Metric from M12 to M50
2623-7812-50-00
Round Punch Kit, Metric from M12 to M50
Product range
for mobile devices
Type
without draw studs
Draw stud
ø 9,5 mm; 3/8" / ø 19 mm; 3/4"
further information
Round Punch Kit, from PG7 to PG21 + ø 30.5 mm
2623-7812-30-00
Round Punch Kit, from PG7 to PG21 + ø 30.5 mm
Product range
for mobile devices
Type
without draw studs
Draw stud
ø 9,5 mm / 3/8"
further information
Round Punch Kit from PG7 to PG48 + ø 30.5 mm
2623-7812-60-00
Round Punch Kit from PG7 to PG48 + ø 30.5 mm
Product range
for mobile devices
Type
without draw studs
Draw stud
ø 9,5 mm; 3/8" / ø 19 mm; 3/4"
further information
Square Punch 22.2 mm / 0.87”
2623-0922-20-00
Square Punch 22.2 mm / 0.87”
Product range
for mobile devices
Size
22,2 x 22,2 mm; 0,87 x 0,87"
Max. sheet metal thickness
Steel 2 mm; 14 ga + Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Square punch 25.4
2623-0925-40-00
Square punch 25.4
Product range
for mobile devices
Size
25,4 x 25,4 mm; 1 x 1"
Max. sheet metal thickness
Steel 2 mm; 14 ga + Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Square Punch 45 mm
2683-0945-00-02
Square Punch 45 mm
Product range
for mobile devices
Size
45 x 45 mm; 1,77 x 1,77"
Max. sheet metal thickness
Steel 3 mm; 11 ga + Stainless steel 2,5 mm; 12 ga
Draw stud
Ø 19 mm / 3/4"
further information
Square Punch 46 mm/9.5 (3/8”)
2683-0946-00-02
Square Punch 46 mm/9.5 (3/8”)
Product range
for mobile devices
Max. sheet metal thickness
Steel 3 mm; 11 ga + Stainless steel 2,5 mm; 12 ga
Draw stud
Ø 19 mm / 3/4"
further information
Square Punch 68 mm / 2.68“
2683-0968-00-02
Square Punch 68 mm / 2.68“
Product range
for mobile devices
Size
68 x 68 mm; 2.68 x 2.68"
Max. sheet metal thickness
Steel 3 mm; 11 ga + Stainless steel 2,5 mm; 12 ga
Draw stud
Ø 19 mm / 3/4"
further information
Square Punch 92 mm / 3.62“
2683-0992-00-02
Square Punch 92 mm / 3.62“
Product range
for mobile devices
Size
92 x 92 mm; 3.62 x 3.62"
Max. sheet metal thickness
Steel 3 mm; 11 ga + Stainless steel 2,5 mm; 12 ga
Draw stud
Ø 19 mm / 3/4"
further information
Square Punch 125 mm / 4.92“ (ST+VA)
2683-0125-00-02
Square Punch 125 mm / 4.92“ (ST+VA)
Product range
for mobile devices
Size
125 x 125 mm; 4.92 x 4.92"
Max. sheet metal thickness
Steel 2,5 mm; 12 ga + Stainless steel 2,0 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"
further information
Rectangular Punch 22x30
2623-0922-30-00
Rectangular Punch 22x30
Product range
for mobile devices
Max. sheet metal thickness
Steel 1,5 mm; 16 ga
Stainless steel 1 mm; 20 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Rectangular Punch 22x42 mm / 0.87x1.65”
2683-0922-42-11
Rectangular Punch 22x42 mm / 0.87x1.65”
Product range
for mobile devices
Size
22 x 42 mm; 0.87 x 1.65"
Max. sheet metal thickness
Steel 1,5 mm; 16 ga + Stainless steel 1 mm; 20 ga
further information
Rectangular Punch 25x50 mm / 0.98x1.97”
2683-0925-50-00
Rectangular Punch 25x50 mm / 0.98x1.97”
Product range
for mobile devices
Size
25 x 50 mm; 0.98 x 1.97"
Max. sheet metal thickness
Steel 2 mm; 14 ga + Stainless steel 1,5 mm; 16 ga
further information
Rectangular punch 46x92 mm / 1.81x3.62”
2683-0946-92-02
Rectangular punch 46x92 mm / 1.81x3.62”
Product range
for mobile devices
Size
46 x 92 mm; 0.98 x 1.97"
Max. sheet metal thickness
Steel 3 mm; 11 ga + Stainless steel 2,5 mm; 12 ga
further information
Rectangular Punch for Heavy Duty Connectors
2683-0936-52-02
Rectangular Punch for Heavy Duty Connectors
Product range
for mobile devices
Size
36 x 52 mm; 1.42 x 2.05"
Max. sheet metal thickness
Steel 3 mm; 11 ga + Stainless steel 2,5 mm; 12 ga
further information
Rectangular Punch for Heavy Duty Connectors
2683-0936-65-02
Rectangular Punch for Heavy Duty Connectors
Product range
for mobile devices
Size
36 x 65 mm; 1.42 x 2.56"
Max. sheet metal thickness
Steel 3 mm; 11 ga + Stainless steel 2,5 mm; 12 ga
further information
Rectangular Punch for Heavy Duty Connectors
2683-0936-85-52
Rectangular Punch for Heavy Duty Connectors
Product range
for mobile devices
Size
36 x 85,5 mm; 1.42 x 3.37"
Max. sheet metal thickness
Steel 3 mm; 11 ga + Stainless steel 2,5 mm; 12 ga
further information
Rectangular Punch for Heavy Duty Connectors
2683-0936-11-22
Rectangular Punch for Heavy Duty Connectors
Product range
for mobile devices
Size
36 x 112 mm; 1.42 x 4.41"
Max. sheet metal thickness
Steel 3 mm; 11 ga + Stainless steel 2,5 mm; 12 ga
further information
Round Punch with 2 Keyways
2623-0922-52-01
Round Punch with 2 Keyways
Product range
for mobile devices
Diameter dimensions
22.5 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga
further information
Formed punch for MinD D-Sub / IEEE
2683-0000-00-37
Formed punch for MinD D-Sub / IEEE
Product range
for mobile devices
Max. sheet metal thickness
Steel 1,75 mm; 15ga / Stainless steel 1 mm; 20ga / Aluminum 2 mm; 12 ga
further information
Formed punch for MinD D-Sub / IEEE
2683-0000-00-09
Formed punch for MinD D-Sub / IEEE
Product range
for mobile devices
Max. sheet metal thickness
Steel 1,75 mm; 15ga / Stainless steel 1 mm; 20ga / Aluminum 2 mm; 12 ga
further information
Formed punch for MinD D-Sub / IEEE
2683-0000-00-50
Formed punch for MinD D-Sub / IEEE
Product range
for mobile devices
Max. sheet metal thickness
Steel 1,75 mm; 15ga / Stainless steel 1 mm; 20ga / Aluminum 2 mm; 12 ga
further information
Turn Lock Shaped Punch
2683-0920-22-01
Turn Lock Shaped Punch
Product range
for mobile devices
Size
20,1 x 22,5 mm; 0.79 x 0.89"
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
further information
Turn Lock Shaped Punch
2683-0920-23-01
Turn Lock Shaped Punch
Product range
for mobile devices
Size
20,2 x 23,1 mm; 0.8 x 0.91
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
further information
Draw Studs for Round Punches
2624-0710-00-00
Draw Studs for Round Punches
Product range
for mobile devices
Draw stud
Ø 9,5/9,5 mm/3/8"/3/8"
Screw length
87 mm
further information
Draw Studs for Round Punches
2624-0711-19-00
Draw Studs for Round Punches
Product range
for mobile devices
Draw stud
Ø 11,1/19 mm/7/16"/3/4"
Screw length
100 mm
further information
Draw Studs for Round Punches
2624-0719-00-00
Draw Studs for Round Punches
Product range
for mobile devices
Draw stud
Ø 19/19 mm/3/4"/3/4"
Screw length
120 mm
further information
Case for pump
2629-7400-20-00
Case for pump
Product range
for mobile devices
Version
Plastic case with deep-drawn insert
Dimension
500 x 410 x 120 mm / 19.69" x 16.14" x 4.72"
Type
for Powerman Vario Plus, for type 2629-7401 and 2629-7402
further information
Reduction Sleeve 19-9.5 (3/4”- 3/8”)
2624-0719-10-01
Reduction Sleeve 19-9.5 (3/4”- 3/8”)
Product range
for mobile devices
Thread
19/9,5 mm/3/4"/3/8"
Length
40 mm
further information
Spacer Sleeve
2624-0710-08-00
Spacer Sleeve
Product range
for mobile devices
Outer diameter
35 mm
Inner diameter
10 mm
Length
8 mm
further information
Spacer Sleeve
2624-0510-19-00
Spacer Sleeve
Product range
for mobile devices
Outer diameter
35 mm
Inner diameter
19.5 mm
Length
10 mm
further information
Washer
2626-7200-20-00
Washer
Product range
for mobile devices
Inner diameter
10 mm
Outer diameter
40 mm
further information
Cordless Powerlec Vario
2629-0000-60-00
Cordless Powerlec Vario
Product range
for mobile devices
further information
Charger Powerlec Vario
2629-0000-61-00
Charger Powerlec Vario
Product range
for mobile devices
Dimension
(LxWxH): 190x156x84 mm
Weight
0.85 kg
further information
Step Drill
2632-0000-08-21
Step Drill
Product range
for mobile devices
Size
ø 6; 8; 10; 11,5; 12,5; 14,5; 17; 21 mm/
ø 0,24“; 0,31“; 0,39“; 0,45“; 0,49“; 0,57“; 0,67“; 0,83“
Material
HSS/E
further information
Drilling Paste
2631-0600-15-49
Drilling Paste
further information
High Performance Cutting Oil
2684-0700-25-00
High Performance Cutting Oil
Filling capacity
0.25 liters
further information
Square Punch 125 mm / 4.92“ (St)
2683-0125-00-55
Square Punch 125 mm / 4.92“ (St)
Product range
for mobile devices
Diameter dimensions
125 x 125 mm; 4.92 x 4.92"
Max. sheet metal thickness
Steel 2,5 mm; 11 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
2623-0812-20-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Diameter dimensions
12.2 mm
Max. sheet metal thickness
Steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Draw Studs for Round Punches
2624-0710-00-00
Draw Studs for Round Punches
Product range
for mobile devices
Draw stud
Ø 9,5/9,5 mm/3/8"/3/8"
Screw length
87 mm
further information
Draw Studs for Round Punches
2624-0719-00-00
Draw Studs for Round Punches
Product range
for mobile devices
Draw stud
Ø 19/19 mm/3/4"/3/4"
Screw length
120 mm
further information
Reduction Sleeve 19-9.5 (3/4”- 3/8”)
2624-0719-10-01
Reduction Sleeve 19-9.5 (3/4”- 3/8”)
Product range
for mobile devices
Thread
19/9,5 mm/3/4"/3/8"
Length
40 mm
further information
Washer
2626-7200-20-00
Washer
Product range
for mobile devices
Inner diameter
10 mm
Outer diameter
40 mm
further information
Case for pump
2629-7400-20-00
Case for pump
Product range
for mobile devices
Version
Plastic case with deep-drawn insert
Dimension
500 x 410 x 120 mm / 19.69" x 16.14" x 4.72"
Type
for Powerman Vario Plus, for type 2629-7401 and 2629-7402
further information
Drilling Paste
2631-0600-15-49
Drilling Paste
further information
Step Drill
2632-0000-08-21
Step Drill
Product range
for mobile devices
Size
ø 6; 8; 10; 11,5; 12,5; 14,5; 17; 21 mm/
ø 0,24“; 0,31“; 0,39“; 0,45“; 0,49“; 0,57“; 0,67“; 0,83“
Material
HSS/E
further information
FixCool Filter Fans
3156-0125-00-70-00
FixCool Filter Fans
Protection class
IP54
Cut out dimension
125x125 mm/4,92x4,92"
Typ
AC15
further information
FixCool Filter Fan
3156-0125-23-70-00
FixCool Filter Fan
Nominal voltage
230 V AC
Protection class
IP54
Cut out dimension
125x125 mm/4,92x4,92"
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 67/69 m3/h
with exhaust filter at 50/60 Hz: 50/52 m3/h
Typ
FC15
further information
Save as PDF Save as PDF Direct request
Powerlec Vario Plus
Powerlec Vario Plus
Battery-operated hydraulic pump
Pump threaded for 19 mm / 3/4“ draw stud
360° rotatable cylinder, can also be operated under load
Li-Ion battery (not included in the scope of delivery)
For punching sheet steel and stainless steel
Available draw studs for: punches threaded for 9.5 mm; 3/8“, 11.1 mm; 7/16“ and 19 mm; 3/4“
Remember
2629-7400-00-00
round punches up to ø 120 mm; 4.72"
Square punches 125 mm; 4.92"
Rectangular punches up to 175 mm; 6.89" diagonal
Sheet steel up to 2 mm; 14 ga
Stainless steel up to 1,5 mm; 16 ga
63 kN
18V
2629-7400-01-00
round punches up to ø 120 mm; 4.72"
Square punches 125 mm; 4.92"
Rectangular punches up to 175 mm; 6.89" diagonal
Sheet steel up to 2 mm; 14 ga
Stainless steel up to 1,5 mm; 16 ga
63 kN
18V
2629-7401-00-00
Fan kit 92
round punches up to ø 120 mm; 4.72"
Square punches 125 mm; 4.92"
Rectangular punches up to 175 mm; 6.89" diagonal
Sheet steel up to 2 mm; 14 ga
Stainless steel up to 1,5 mm; 16 ga
63 kN
18V
2629-7402-00-00
Fan kit 125
round punches up to ø 120 mm; 4.72"
Square punches 125 mm; 4.92"
Rectangular punches up to 175 mm; 6.89" diagonal
Sheet steel up to 2 mm; 14 ga
Stainless steel up to 1,5 mm; 16 ga
63 kN
18V
Contact for products
Find your personal point of contact
We are happy to help you.

The best switch cabinets and casings are not produced on an assembly line, but rather designed in close cooperation with our customers. Are you ready to begin? Then contact your personal häwa consultant.

Choose your advisor now

Share this page
