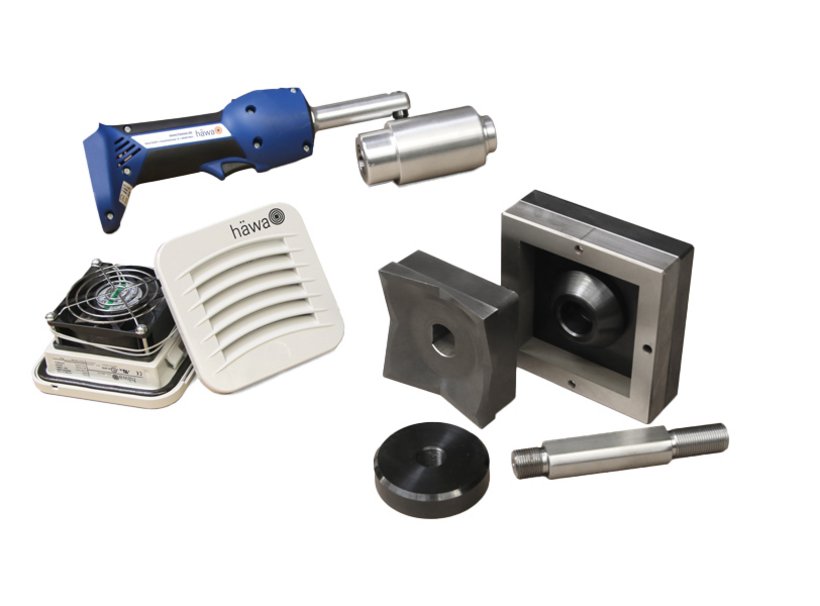

Powerlec Vario Plus

2629-7401-00-00

Powerlec Vario Plus

  • One-man operation
  • For applications in confined spaces max. punching: ø 120 mm; 4.72“
  • Automatic stop after the material is punched

Product description

Battery-operated hydraulic pump

Pump threaded for 19 mm / 3/4“ draw stud

360° rotatable cylinder, can also be operated under load

Li-Ion battery (not included in the scope of delivery)

For punching sheet steel and stainless steel

Available draw studs for: punches threaded for 9.5 mm; 3/8“, 11.1 mm; 7/16“ and 19 mm; 3/4“

Technical Data

  • Order No.: 2629-7401-00-00
  • Application: Punching of cut-outs
  • PRODUKTFAMILIE: for mobile devices
  • Material: Sheet steel, stainless steel
  • Suitable for: round punches up to ø 120 mm; 4.72"
    Square punches 125 mm; 4.92"
    Rectangular punches up to 175 mm; 6.89" diagonal
  • Material thickness: Sheet steel up to 2 mm; 14 ga
    Stainless steel up to 1,5 mm; 16 ga
  • Punching force: 63 kN
  • Piston stroke: 26 mm
  • Threaded for: 19 mm (3/4”) draw studs
  • Pump dimensions: ø 75x120x330 mm; ø 2.95"x4.72"x12.99"
  • Operating voltage: 18V
  • Weight: 2 kg
  • Sound pressure level: 70.6 dB(A)

Notice

  • Recommended accessories: Battery type 2629-0000-60-00 + charger type 2629-0000-61-00.
  • If punching tools (round, rectangular, square, shaped punches) should be used for applications exceeding the technical specifications (" Suitable for" and "Max. sheet metal thickness" → see "Technical Data"), an individual clarification is required. Please contact your local sales department.
  • Hydraulic pump
  • 2 draw studs (stud with 2 x ø 9.5 mm; 3/8“ thread and stud with 2x 19 mm; 3/4“ thread)
  • Reduction sleeve
  • Washer
  • Step drill
  • Drilling paste
  • Plastic box
  • Square punch 92 mm / 3.62“ for punching sheet steel and stainless steel
  • Encore:
  • FixCool filter fan for cut-out 92x92 mm / 3.62 x 3.62”
  • FixCool exhaust filter for cut-out 92x92 mm / 3.62 x 3.62”
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0828-30-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 28,3 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
Ø 19 mm / 3/4"
PG
PG 21
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0830-50-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 30,5 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0832-00-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 32 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0832-20-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 32,2 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0834-10-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 34,1 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0835-00-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
35 mm/1,38"
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0837-00-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 37 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"
PG
PG 29
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0838-00-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
38 mm/1,50"
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0840-20-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 40,2 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0841-20-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 41,2 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0843-30-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 43,3 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0845-50-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 45,5 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0847-00-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 47 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"
PG
PG 36
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0850-20-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 50,2 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0854-00-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 54 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"
PG
PG 42
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0856-50-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 56,5 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0860-00-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 60 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"
PG
PG 48
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0863-20-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 63,2 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0864-40-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 64,4 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0866-60-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 66,6 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0870-00-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 70 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0875-20-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 75,2 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0876-20-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 76,2 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0880-00-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 80 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0882-00-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 82 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0888-50-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 88,5 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0892-00-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 92 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1 mm; 20 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0810-20-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 102 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1 mm; 20 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0811-43-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 114,3 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1 mm; 20 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
2623-0812-01-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 120 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1 mm; 20 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Plus Threaded for ø 9.5 mm (3/8”) Draws Studs
2682-0815-20-25
Round Punch Plus Threaded for ø 9.5 mm (3/8”) Draws Studs
Product range
for mobile devices
Size
ø 15,2 mm
Max. sheet metal thickness
Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"
PG
PG 9
further information
Round Punch Plus Threaded for ø 9.5 mm (3/8”) Draws Studs
2682-0816-20-25
Round Punch Plus Threaded for ø 9.5 mm (3/8”) Draws Studs
Product range
for mobile devices
Size
ø 16,2 mm
Max. sheet metal thickness
Stainless steel 2 mm; 14 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Round Punch Plus Threaded for ø 11.1 mm Draw Studs
2682-0818-60-25
Round Punch Plus Threaded for ø 11.1 mm Draw Studs
Product range
for mobile devices
Size
ø 18,6 mm
Max. sheet metal thickness
Stainless steel 2 mm; 14 ga
Draw stud
ø 11,1 mm
PG
PG 11
further information
Round Punch Plus Threaded for ø 11.1 mm Draw Studs
2682-0820-20-25
Round Punch Plus Threaded for ø 11.1 mm Draw Studs
Product range
for mobile devices
Size
ø 20,2 mm
Max. sheet metal thickness
Stainless steel 2 mm; 14 ga
Draw stud
ø 11,1 mm
PG
PG 13.5
further information
Round Punch Plus Threaded for ø 11.1 mm Draw Studs
2682-0820-40-25
Round Punch Plus Threaded for ø 11.1 mm Draw Studs
Product range
for mobile devices
Size
ø 20,4 mm
Max. sheet metal thickness
Stainless steel 2 mm; 14 ga
Draw stud
ø 11,1 mm
PG
PG 13.5
further information
Round Punch Plus Threaded for ø 11.1 mm Draw Studs
2682-0822-50-25
Round Punch Plus Threaded for ø 11.1 mm Draw Studs
Product range
for mobile devices
Size
ø 22,5 mm
Max. sheet metal thickness
Stainless steel 2 mm; 14 ga
Draw stud
ø 11,1 mm
PG
PG 16
further information
Round Punch Plus Threaded for ø 11.1 mm Draw Studs
2682-0825-20-25
Round Punch Plus Threaded for ø 11.1 mm Draw Studs
Product range
for mobile devices
Size
ø 25,2 mm
Max. sheet metal thickness
Stainless steel 2 mm; 14 ga
Draw stud
ø 11,1 mm
further information
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
2682-0828-50-25
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 28,5 mm
Max. sheet metal thickness
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"
PG
PG 21
further information
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
2682-0830-50-25
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 30,5 mm
Max. sheet metal thickness
Stainless steel 2,5 mm; 13 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
2682-0832-20-25
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 32,2 mm
Max. sheet metal thickness
Stainless steel 2,5 mm; 13 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
2682-0837-00-25
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 37 mm
Max. sheet metal thickness
Stainless steel 2,5 mm; 13 ga
Draw stud
Ø 19 mm / 3/4"
PG
PG 29
further information
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
2682-0840-20-25
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 40,2 mm
Max. sheet metal thickness
Stainless steel 2,5 mm; 13 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
2682-0847-00-25
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 47 mm
Max. sheet metal thickness
Stainless steel 2,5 mm; 13 ga
Draw stud
Ø 19 mm / 3/4"
PG
PG 36
further information
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
2682-0850-20-25
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 50,2 mm
Max. sheet metal thickness
Stainless steel 2,5 mm; 13 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
2682-0854-00-25
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 54 mm
Max. sheet metal thickness
Stainless steel 2,5 mm; 13 ga
Draw stud
Ø 19 mm / 3/4"
PG
PG 42
further information
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
2682-0860-00-25
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 60 mm
Max. sheet metal thickness
Stainless steel 2,5 mm; 13 ga
Draw stud
Ø 19 mm / 3/4"
PG
PG 48
further information
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
2682-0863-20-25
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 63,2 mm
Max. sheet metal thickness
Stainless steel 2,5 mm; 13 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
2623-0812-20-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 12,2 mm
Max. sheet metal thickness
Steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
2623-0812-70-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 12,7 mm
Max. sheet metal thickness
Steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"
PG
PG 7
further information
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
2623-0814-00-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 14 mm
Max. sheet metal thickness
Steel 1,5 mm; 16 ga
Stainless steel 1 mm; 20 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
2623-0815-20-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 15,2 mm
Max. sheet metal thickness
Steel 1,5 mm; 16 ga
Stainless steel 1 mm; 20 ga
Draw stud
ø 9,5 mm / 3/8"
PG
PG 9
further information
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
2623-0816-20-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 16,2 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
2623-0817-30-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 17,3 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
2623-0818-60-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 18,6 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"
PG
PG 11
further information
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
2623-0819-00-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
Ø 19 mm / 3/4"
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
2623-0820-20-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 20,2 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
2623-0820-40-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 20,4 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Draw stud
ø 9,5 mm / 3/8"
PG
PG 13.5
further information
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
2623-0821-30-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 21,3 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
2623-0822-50-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 22,5 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Draw stud
ø 9,5 mm / 3/8"
PG
PG 16
further information
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
2623-0823-80-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 23,8 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
2623-0824-50-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 24,5 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
2623-0825-20-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 25,2 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
2623-0827-00-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 27 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
2623-0828-50-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 28,5 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"
PG
PG 21
further information
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
2623-0830-51-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 30,5 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
2623-0832-21-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 32,2 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
2623-0833-30-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 33,3 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
2623-0835-01-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
35 mm/1,38"
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
2623-0838-11-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 38,1 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Round Punch Plus Kit, Metric from M16 to M50
2682-7816-50-26
Round Punch Plus Kit, Metric from M16 to M50
Product range
for mobile devices
Size
metric round punch in mm: ø 16.2; ø 20.2; ø 25.2; ø 32.2; ø 40.2; ø 50.2
Max. sheet metal thickness
Stainless steel 2,5 mm; 13 ga
Draw stud
ø 9,5 mm; 3/8" / ø 11,1 mm; 7/16" / ø 19 mm; 3/4"
further information
Round Punch Kit, Metric from M12 to M50
2623-7812-50-00
Round Punch Kit, Metric from M12 to M50
Product range
for mobile devices
Diameter dimensions
metric: metric round punches in mm: ø 12,2/0,48"; 16,2/0,64"; 20,2/0,8"; 25,2/0,99"; 32,2/1,27"; 40,2/1,58"; 50,2/1,97"
Max. sheet metal thickness
Steel 3 mm; 11 ga
Draw stud
ø 9,5 mm; 3/8" / ø 19 mm; 3/4"
Type
without draw studs
further information
Round Punch Kit, from PG7 to PG21 + ø 30.5 mm
2623-7812-30-00
Round Punch Kit, from PG7 to PG21 + ø 30.5 mm
Product range
for mobile devices
Diameter dimensions
PG round punch in PG: 7;9;11;13;16;21 and ø 30.5 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Draw stud
ø 9,5 mm / 3/8"
Type
without draw studs
further information
Round Punch Kit from PG7 to PG48 + ø 30.5 mm
2623-7812-60-00
Round Punch Kit from PG7 to PG48 + ø 30.5 mm
Product range
for mobile devices
Diameter dimensions
PG round punches in PG: 7;9;11;13;16;21;29;36;42;48 and ø 30.5 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Draw stud
ø 9,5 mm; 3/8" / ø 19 mm; 3/4"
Type
without draw studs
further information
Square Punch 22.2 mm / 0.87”
2623-0922-20-00
Square Punch 22.2 mm / 0.87”
Product range
for mobile devices
Size
22,2 x 22,2 mm; 0,87 x 0,87"
Max. sheet metal thickness
Steel 2 mm; 14 ga + Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Square punch 25.4
2623-0925-40-00
Square punch 25.4
Product range
for mobile devices
Size
25,4 x 25,4 mm; 1 x 1"
Max. sheet metal thickness
Steel 2 mm; 14 ga + Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Square Punch 45 mm
2683-0945-00-02
Square Punch 45 mm
Product range
for mobile devices
Size
45 x 45 mm; 1,77 x 1,77"
Max. sheet metal thickness
Steel 3 mm; 11 ga + Stainless steel 2,5 mm; 12 ga
Draw stud
Ø 19 mm / 3/4"
further information
Square Punch 46 mm/9.5 (3/8”)
2683-0946-00-02
Square Punch 46 mm/9.5 (3/8”)
Product range
for mobile devices
Size
46 x 46 mm; 1.81 x 1.81"
Max. sheet metal thickness
Steel 3 mm; 11 ga + Stainless steel 2,5 mm; 12 ga
Draw stud
Ø 19 mm / 3/4"
further information
Square Punch 68 mm / 2.68“
2683-0968-00-02
Square Punch 68 mm / 2.68“
Product range
for mobile devices
Size
68 x 68 mm; 2.68 x 2.68"
Max. sheet metal thickness
Steel 3 mm; 11 ga + Stainless steel 2,5 mm; 12 ga
Draw stud
Ø 19 mm / 3/4"
further information
Square Punch 92 mm / 3.62“
2683-0992-00-02
Square Punch 92 mm / 3.62“
Product range
for mobile devices
Size
92 x 92 mm; 3.62 x 3.62"
Max. sheet metal thickness
Steel 3 mm; 11 ga + Stainless steel 2,5 mm; 12 ga
Draw stud
Ø 19 mm / 3/4"
further information
Square Punch 125 mm / 4.92“ (ST+VA)
2683-0125-00-02
Square Punch 125 mm / 4.92“ (ST+VA)
Product range
for mobile devices
Size
125 x 125 mm; 4.92 x 4.92"
Max. sheet metal thickness
Steel 2,5 mm; 12 ga + Stainless steel 2,0 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"
further information
Rectangular Punch 22x30
2623-0922-30-00
Rectangular Punch 22x30
Product range
for mobile devices
Size
22 x 30 mm; 0.87 x 1.18"
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Rectangular Punch 22x42 mm / 0.87x1.65”
2683-0922-42-11
Rectangular Punch 22x42 mm / 0.87x1.65”
Product range
for mobile devices
Size
22 x 42 mm; 0.87 x 1.65"
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Rectangular Punch 25x50 mm / 0.98x1.97”
2683-0925-50-00
Rectangular Punch 25x50 mm / 0.98x1.97”
Product range
for mobile devices
Size
25 x 50 mm; 0.98 x 1.97"
Max. sheet metal thickness
Steel 2 mm; 14 ga + Stainless steel 1,5 mm; 16 ga
Draw stud
Ø 19 mm / 3/4"
further information
Rectangular punch 46x92 mm / 1.81x3.62”
2683-0946-92-02
Rectangular punch 46x92 mm / 1.81x3.62”
Product range
for mobile devices
Size
46 x 92 mm; 0.98 x 1.97"
Max. sheet metal thickness
Steel 3 mm; 11 ga + Stainless steel 2,5 mm; 12 ga
Draw stud
Ø 19 mm / 3/4"
further information
Rectangular Punch for Heavy Duty Connectors
2683-0936-52-02
Rectangular Punch for Heavy Duty Connectors
Product range
for mobile devices
Size
36 x 52 mm; 1.42 x 2.05"
Max. sheet metal thickness
Steel 3 mm; 11 ga + Stainless steel 2,5 mm; 12 ga
Draw stud
Ø 19 mm / 3/4"
further information
Rectangular Punch for Heavy Duty Connectors
2683-0936-65-02
Rectangular Punch for Heavy Duty Connectors
Product range
for mobile devices
Size
36 x 65 mm; 1.42 x 2.56"
Max. sheet metal thickness
Steel 3 mm; 11 ga + Stainless steel 2,5 mm; 12 ga
Draw stud
Ø 19 mm / 3/4"
further information
Rectangular Punch for Heavy Duty Connectors
2683-0936-85-52
Rectangular Punch for Heavy Duty Connectors
Product range
for mobile devices
Size
36 x 85,5 mm; 1.42 x 3.37"
Max. sheet metal thickness
Steel 3 mm; 11 ga + Stainless steel 2,5 mm; 12 ga
Draw stud
Ø 19 mm / 3/4"
further information
Rectangular Punch for Heavy Duty Connectors
2683-0936-11-22
Rectangular Punch for Heavy Duty Connectors
Product range
for mobile devices
Size
36 x 112 mm; 1.42 x 4.41"
Max. sheet metal thickness
Steel 3 mm; 11 ga + Stainless steel 2,5 mm; 12 ga
Draw stud
Ø 19 mm / 3/4"
further information
Round Punch with 2 Keyways
2623-0922-52-01
Round Punch with 2 Keyways
Product range
for mobile devices
Size
ø 22,5 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Formed punch for MinD D-Sub / IEEE
2683-0000-00-37
Formed punch for MinD D-Sub / IEEE
Product range
for mobile devices
Number of poles
37
Size
11,3 x 58,4 mm; 0.44 x 2.3"
Max. sheet metal thickness
Steel 1,75 mm; 15ga / Stainless steel 1 mm; 20ga / Aluminum 2 mm; 12 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Formed punch for MinD D-Sub / IEEE
2683-0000-00-09
Formed punch for MinD D-Sub / IEEE
Product range
for mobile devices
Number of poles
9
Size
11,3 x 19,8 mm; 0.44 x 0.78"
Max. sheet metal thickness
Steel 1,75 mm; 15ga / Stainless steel 1 mm; 20ga / Aluminum 2 mm; 12 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Formed punch for MinD D-Sub / IEEE
2683-0000-00-50
Formed punch for MinD D-Sub / IEEE
Product range
for mobile devices
Number of poles
50
Size
11,3 x 58,4 mm; 0.44 x 2.3"
Max. sheet metal thickness
Steel 1,75 mm; 15ga / Stainless steel 1 mm; 20ga / Aluminum 2 mm; 12 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Turn Lock Shaped Punch
2683-0920-22-01
Turn Lock Shaped Punch
Product range
for mobile devices
Size
20,1 x 22,5 mm; 0.79 x 0.89"
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Turn Lock Shaped Punch
2683-0920-23-01
Turn Lock Shaped Punch
Product range
for mobile devices
Size
20,2 x 23,1 mm; 0.8 x 0.91
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Draw stud
ø 9,5 mm / 3/8"
further information
Draw Studs for Round Punches
2624-0711-19-00
Draw Studs for Round Punches
Product range
for mobile devices
Draw stud
Ø 11,1/19 mm/7/16"/3/4"
Screw length
100 mm
further information
Case for Hydraulic Pump
2629-7400-20-00
Case for Hydraulic Pump
Product range
for mobile devices
Type
for Powerman Vario Plus, for type 2629-7401 and 2629-7402
Version
Plastic case with deep-drawn insert
Dimension
500 x 410 x 120 mm / 19.69" x 16.14" x 4.72"
further information
Reduction Sleeve 19-9.5 (3/4”- 3/8”)
2624-0719-10-01
Reduction Sleeve 19-9.5 (3/4”- 3/8”)
Product range
for mobile devices
Thread
19/9,5 mm/3/4"/3/8"
Length
40 mm
further information
Spacer Sleeve
2624-0710-08-00
Spacer Sleeve
Product range
for mobile devices
Outer diameter
35 mm/1,38"
Inner diameter
10 mm
Length
8 mm
further information
Spacer Sleeve
2624-0510-19-00
Spacer Sleeve
Product range
for mobile devices
Outer diameter
35 mm/1,38"
Inner diameter
19.5 mm
Length
10 mm
further information
Washer
2626-7200-20-00
Washer
Product range
for mobile devices
Outer diameter
40 mm
Inner diameter
10 mm
Thickness
3 mm
further information
Cordless Powerlec Vario Plus
2629-0000-60-00
Cordless Powerlec Vario Plus
Product range
for mobile devices
Battery capacity
18V; 3 Ah
further information
Charger Powerlec Vario Plus
2629-0000-61-00
Charger Powerlec Vario Plus
Product range
for mobile devices
further information
Step Drill
2632-0000-08-21
Step Drill
Product range
for mobile devices
Size
ø 6; 8; 10; 11,5; 12,5; 14,5; 17; 21 mm/
ø 0,24“; 0,31“; 0,39“; 0,45“; 0,49“; 0,57“; 0,67“; 0,83“
Material
HSS/E
further information
Drilling Paste
2631-0600-15-49
Drilling Paste
Dimensions
ø 29x91 mm
further information
High Performance Cutting Oil
2684-0700-25-00
High Performance Cutting Oil
Filling capacity
0.25 liters
further information
Square Punch 125 mm / 4.92“ (St)
2683-0125-00-55
Square Punch 125 mm / 4.92“ (St)
Product range
for mobile devices
Size
125 x 125 mm; 4.92 x 4.92"
Max. sheet metal thickness
Steel 2,5 mm; 11 ga
Draw stud
Ø 19 mm / 3/4"
further information
Draw Studs for Round Punches
2624-0710-00-00
Draw Studs for Round Punches
Product range
for mobile devices
Draw stud
Ø 9,5/9,5 mm/3/8"/3/8"
Screw length
87 mm
further information
Draw Studs for Round Punches
2624-0719-00-00
Draw Studs for Round Punches
Product range
for mobile devices
Draw stud
Ø 19/19 mm/3/4"/3/4"
Screw length
120 mm
further information
Reduction Sleeve 19-9.5 (3/4”- 3/8”)
2624-0719-10-01
Reduction Sleeve 19-9.5 (3/4”- 3/8”)
Product range
for mobile devices
Thread
19/9,5 mm/3/4"/3/8"
Length
40 mm
further information
Washer
2626-7200-20-00
Washer
Product range
for mobile devices
Outer diameter
40 mm
Inner diameter
10 mm
Thickness
3 mm
further information
Case for Hydraulic Pump
2629-7400-20-00
Case for Hydraulic Pump
Product range
for mobile devices
Type
for Powerman Vario Plus, for type 2629-7401 and 2629-7402
Version
Plastic case with deep-drawn insert
Dimension
500 x 410 x 120 mm / 19.69" x 16.14" x 4.72"
further information
Drilling Paste
2631-0600-15-49
Drilling Paste
Dimensions
ø 29x91 mm
further information
Step Drill
2632-0000-08-21
Step Drill
Product range
for mobile devices
Size
ø 6; 8; 10; 11,5; 12,5; 14,5; 17; 21 mm/
ø 0,24“; 0,31“; 0,39“; 0,45“; 0,49“; 0,57“; 0,67“; 0,83“
Material
HSS/E
further information
Square Punch 92 mm / 3.62“
2683-0992-00-02
Square Punch 92 mm / 3.62“
Product range
for mobile devices
Size
92 x 92 mm; 3.62 x 3.62"
Max. sheet metal thickness
Steel 3 mm; 11 ga + Stainless steel 2,5 mm; 12 ga
Draw stud
Ø 19 mm / 3/4"
further information
Save as PDF Save as PDF Direct enquiry
Powerlec Vario Plus
Powerlec Vario Plus
Battery-operated hydraulic pump
Pump threaded for 19 mm / 3/4“ draw stud
360° rotatable cylinder, can also be operated under load
Li-Ion battery (not included in the scope of delivery)
For punching sheet steel and stainless steel
Available draw studs for: punches threaded for 9.5 mm; 3/8“, 11.1 mm; 7/16“ and 19 mm; 3/4“
notice
2629-7400-00-00
Without punching tool
round punches up to ø 120 mm; 4.72"
Square punches 125 mm; 4.92"
Rectangular punches up to 175 mm; 6.89" diagonal
Sheet steel up to 2 mm; 14 ga
Stainless steel up to 1,5 mm; 16 ga
19 mm (3/4”) draw studs
2629-7400-01-00
with metric round punch kit
round punches up to ø 120 mm; 4.72"
Square punches 125 mm; 4.92"
Rectangular punches up to 175 mm; 6.89" diagonal
Sheet steel up to 2 mm; 14 ga
Stainless steel up to 1,5 mm; 16 ga
19 mm (3/4”) draw studs
2629-7402-00-00
round punches up to ø 120 mm; 4.72"
Square punches 125 mm; 4.92"
Rectangular punches up to 175 mm; 6.89" diagonal
Sheet steel up to 2 mm; 14 ga
Stainless steel up to 1,5 mm; 16 ga
19 mm (3/4”) draw studs
Contact for products
Find your personal point of contact
We are happy to help you.

The best switch cabinets and casings are not produced on an assembly line, but rather designed in close cooperation with our customers. Are you ready to begin? Then contact your personal häwa consultant.

Choose your advisor now

PM-Leitung: Herr Eglof. PM-Leitung: Herr Eglof.
Share this page
