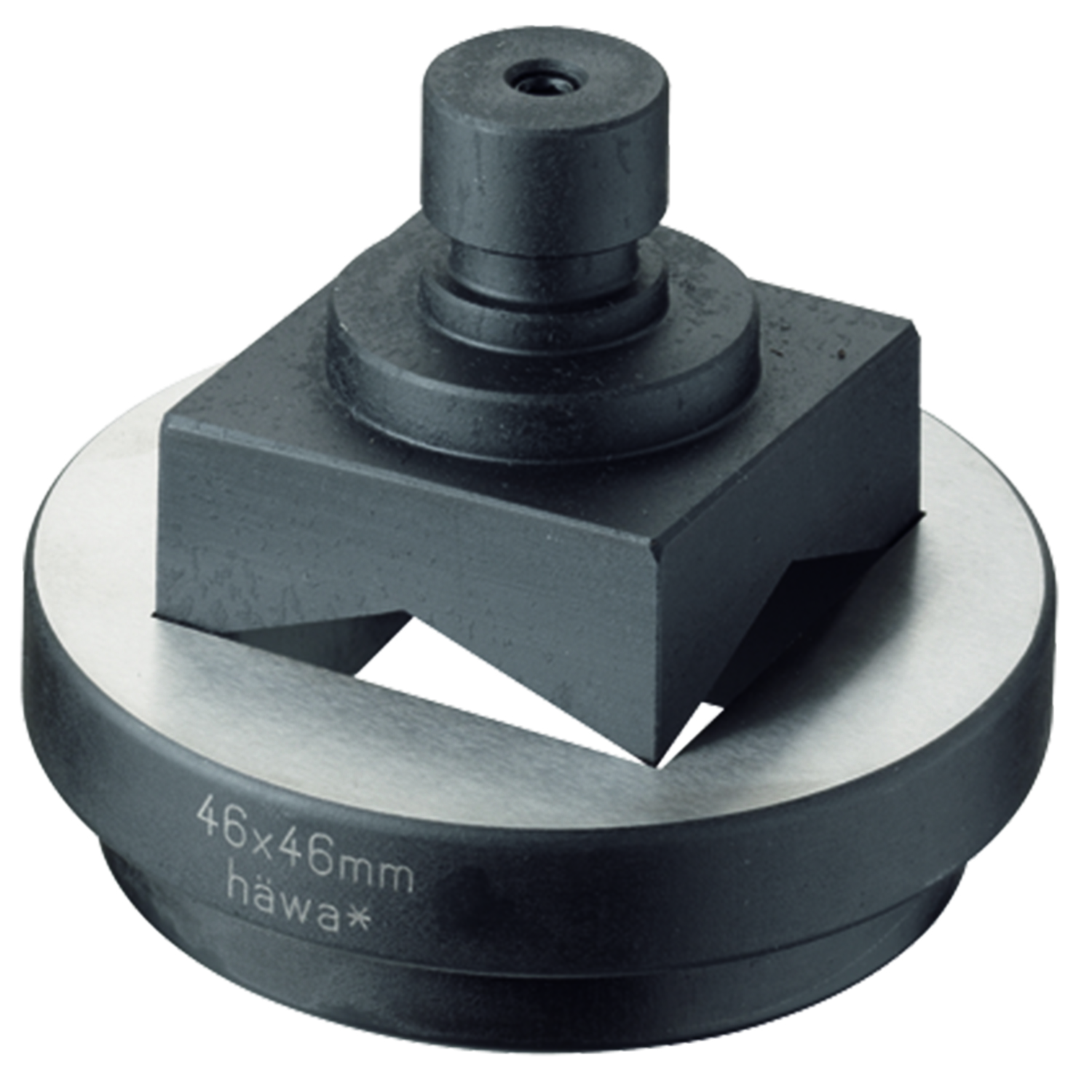

Square Punch for Maxi-Press 500

2643-0946-00-00

Square Punch for Maxi-Press 500

  • Long lifetime
  • Maximum productivity with minimum effort

Product description

For the use in bow punches

Low tool wear through optimum cutting geometry

Quick, precise and burr-free punching

Technical Data

  • Order No.: 2643-0946-00-00
  • Max. sheet metal thickness: Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
  • PRODUKTFAMILIE: For workshop equipment
  • Clamping pin: ø 20 mm/0,79"
  • Diameter of the die holder: 72 mm, step die
  • Size: 46 x 46 mm; 1.81 x 1.81"
  • 1 punch set, consisting of punch and die
Maxi-Press 500
2643-7106-00-00
Maxi-Press 500
Application
Punching of cut-outs
Suitable for
round punches up to ø 63.5 mm; 2.5" / square punches up to 46 mm; 1.81" / rectangular punches up to 60 mm; 2.36" diagonal
Material thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Punch holder
ø 20 mm; 0.79“
Processing depth
500 mm
Square Punch for Maxi-Press 500
Square Punch for Maxi-Press 500
For the use in bow punches
Low tool wear through optimum cutting geometry
Quick, precise and burr-free punching

notice
For workshop equipment
22,2 x 22,2 mm; 0,87 x 0,87"
ø 20 mm/0,79"
1,97 inch
For workshop equipment
25,4 x 25,4 mm; 1 x 1"
ø 20 mm/0,79"
1,97 inch
