Square Punch for Quick-Press 300
Square Punch for Quick-Press 300
For the use in bow punches Quick-Press 300
Low tool wear through optimum cutting geometry
With spring-loaded center pin for easy workpiece positioning
Quick, precise and burr-free punching
Remember
2661-0422-20-00
For workshop equipment
22,2 x 22,2 mm; 0,87 x 0,87"
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
50 mm
2661-0425-40-00
For workshop equipment
25,4 x 25,4 mm; 1 x 1"
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
50 mm
Square Punch for Quick-Press 400
Square Punch for Quick-Press 400
For the use in bow punches Quick-Press 400
Low tool wear through optimum cutting geometry
Quick, precise and burr-free punching
Remember
2665-0422-20-00
For workshop equipment
22,2 x 22,2 mm; 0,87 x 0,87"
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
50 mm
2665-0425-40-00
For workshop equipment
25,4 x 25,4 mm; 1 x 1"
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
50 mm
Square Punch for Maxi-Press 500
Square Punch for Maxi-Press 500
For the use in bow punches
Low tool wear through optimum cutting geometry
Quick, precise and burr-free punching
Remember
2642-0422-20-00
For workshop equipment
22,2 x 22,2 mm; 0,87 x 0,87"
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
50 mm
2642-0425-40-00
For workshop equipment
25,4 x 25,4 mm; 1 x 1"
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
50 mm
2643-0946-00-00
For workshop equipment
46 x 46 mm; 1.81 x 1.81"
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Square Punch 22.2 mm / 0.87”
Square Punch 22.2 mm / 0.87”
For punching cut-outs in sheet metals with pumps.
Easy alignment owing to the markings at die.
Easy removal of the deformed waste piece.
Quick, precise and burr-free punching.
Art No.
Product range
Size
Max. sheet metal thickness
Draw stud
Remember
2623-0922-20-00
for mobile devices
22,2 x 22,2 mm; 0,87 x 0,87"
Steel 2 mm; 14 ga + Stainless steel 1,5 mm; 16 ga
ø 9,5 mm / 3/8"
Square punch 25.4
Square punch 25.4
For punching cut-outs in sheet metals with pumps.
Easy alignment owing to the markings at die.
Easy removal of the deformed waste piece.
Quick, precise and burr-free punching.
Art No.
Product range
Size
Max. sheet metal thickness
Draw stud
Remember
2623-0925-40-00
for mobile devices
25,4 x 25,4 mm; 1 x 1"
Steel 2 mm; 14 ga + Stainless steel 1,5 mm; 16 ga
ø 9,5 mm / 3/8"
Square Punch 45 mm
Square Punch 45 mm
For punching cut-outs in sheet metals with pumps.
Easy alignment owing to the markings at die.
Easy removal of the deformed waste piece.
Quick, precise and burr-free punching.
Art No.
Product range
Size
Max. sheet metal thickness
Draw stud
Remember
2683-0945-00-02
for mobile devices
45 x 45 mm; 1,77 x 1,77"
Steel 3 mm; 11 ga + Stainless steel 2,5 mm; 12 ga
Ø 19 mm / 3/4"
Square Punch 46 mm/9.5 (3/8”)
Square Punch 46 mm/9.5 (3/8”)
For punching cut-outs in sheet metals with pumps.
Easy alignment owing to the markings at die.
Easy removal of the deformed waste piece.
Quick, precise and burr-free punching.
Art No.
Product range
Diameter dimensions
Max. sheet metal thickness
Draw stud
Remember
2683-0946-00-02
for mobile devices
Steel 3 mm; 11 ga + Stainless steel 2,5 mm; 12 ga
Ø 19 mm / 3/4"

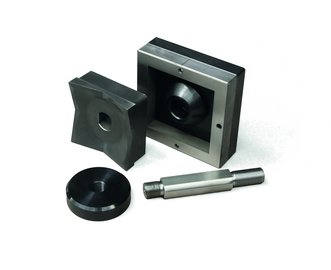

Square Punch 68 mm / 2.68“
Square Punch 68 mm / 2.68“
For punching cut-outs in sheet metals with pumps.
Easy alignment owing to the markings at die.
Easy removal of the deformed waste piece.
Quick, precise and burr-free punching.
Art No.
Product range
Size
Max. sheet metal thickness
Draw stud
Remember
2683-0968-00-02
for mobile devices
68 x 68 mm; 2.68 x 2.68"
Steel 3 mm; 11 ga + Stainless steel 2,5 mm; 12 ga
Ø 19 mm / 3/4"
Square Punch 92 mm / 3.62“
Square Punch 92 mm / 3.62“
For punching cut-outs in sheet metals with pumps.
Easy alignment owing to the markings at die.
Easy removal of the deformed waste piece.
Quick, precise and burr-free punching.
Art No.
Product range
Size
Max. sheet metal thickness
Draw stud
Remember
2683-0992-00-02
for mobile devices
92 x 92 mm; 3.62 x 3.62"
Steel 3 mm; 11 ga + Stainless steel 2,5 mm; 12 ga
Ø 19 mm / 3/4"

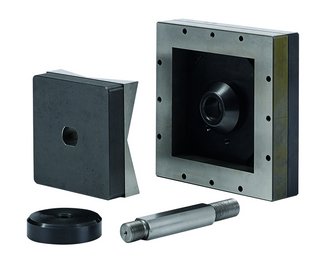

Square Punch 125 mm / 4.92“ (ST+VA)
Square Punch 125 mm / 4.92“ (ST+VA)
For punching cut-outs in sheet metals with pumps.
Easy alignment owing to the markings at die.
Easy removal of the deformed waste piece.
Quick, precise and burr-free punching.
Art No.
Product range
Size
Max. sheet metal thickness
Draw stud
Remember
2683-0125-00-02
for mobile devices
125 x 125 mm; 4.92 x 4.92"
Steel 2,5 mm; 12 ga + Stainless steel 2,0 mm; 14 ga
Ø 19 mm / 3/4"

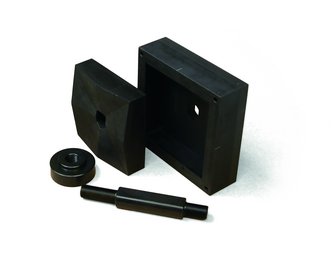

For punching cut-outs in sheet metals with pumps.
Easy alignment owing to the markings at die.
Easy removal of the deformed waste piece.
Quick, precise and burr-free punching.
Art No.
Product range
Diameter dimensions
Max. sheet metal thickness
Draw stud
Remember
2683-0125-00-55
for mobile devices
125 x 125 mm; 4.92 x 4.92"
Steel 2,5 mm; 11 ga
Ø 19 mm / 3/4"
